Description

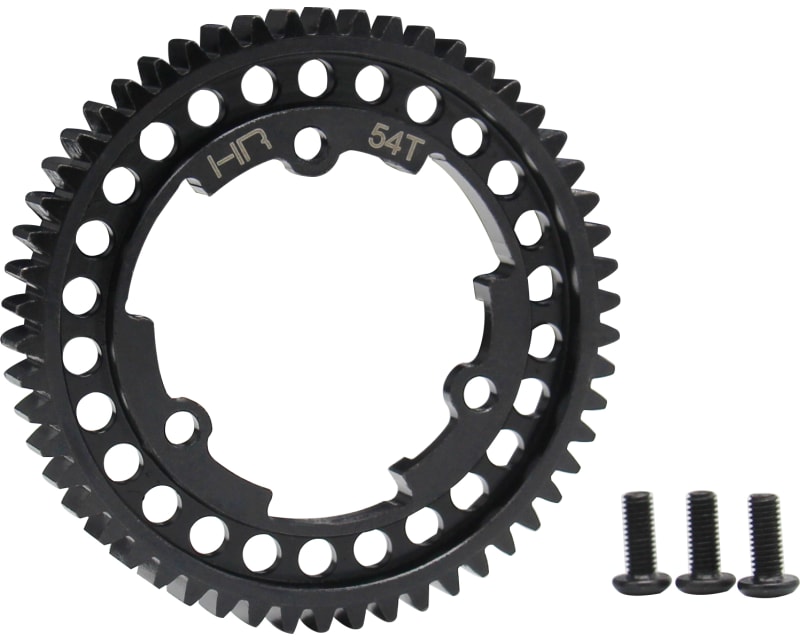

Hot Racing 54 tooth hardened steel Modulus 1 (1.0 metric pitch) spur gear for the TRA E Revo2, 6S and 8S, Maxx4S and XO-1.
- Black oxide finished
- Laser etched tooth count marking
- With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm buttonhead cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
- Gear face width: 8mm
FEATURES:
- CNC machined hardened steel construction- Black oxide finished
- Laser etched tooth count marking
YOU WILL RECEIVE:
- One (1) 54 tooth, 1.0 modulus steel spur gearREQUIREMENTS:
- Do NOT use the pin system for setting the gear mesh. Instead, manually set the gear mesh without the pins. Refer to the TRA manual for instructions (ref. pg.22 - Adjusting Gear Mesh): - With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm buttonhead cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
SPECIFICATIONS:
- Overall diameter: 56.8mm- Gear face width: 8mm
COMMENTS:
- Replaces TRA plastic 6449 or 6449X 54T spur gearManufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.95" 10.13 cm × 10.13 cm × 2.41 cm |
| Part numbers | 083745976588 ERVT54M01 XMX54M01 MXX54M01 840353322707 XRT54M01 MXXS54M01 FSC54M01 HRAERVT54M01 |
| Shipping weight | 1.71 ounces 48.37 grams 0.11 pounds |
