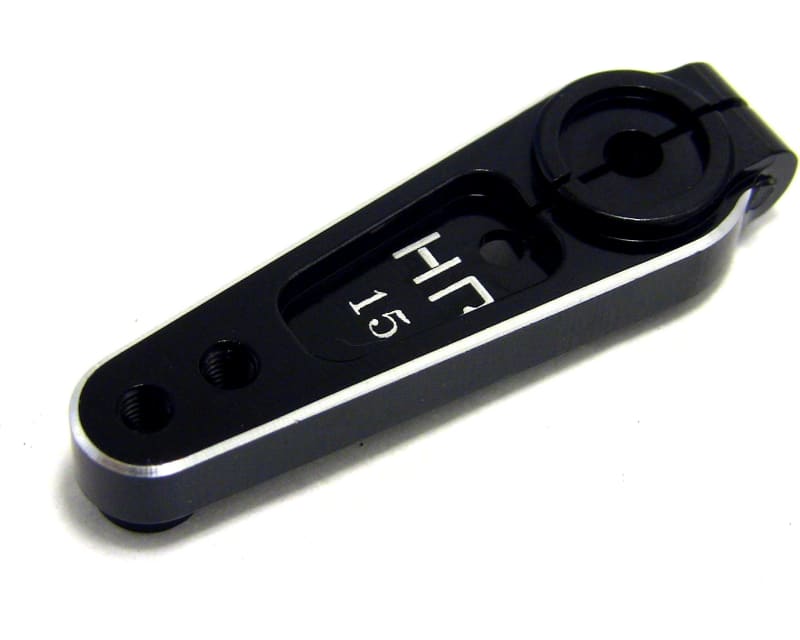

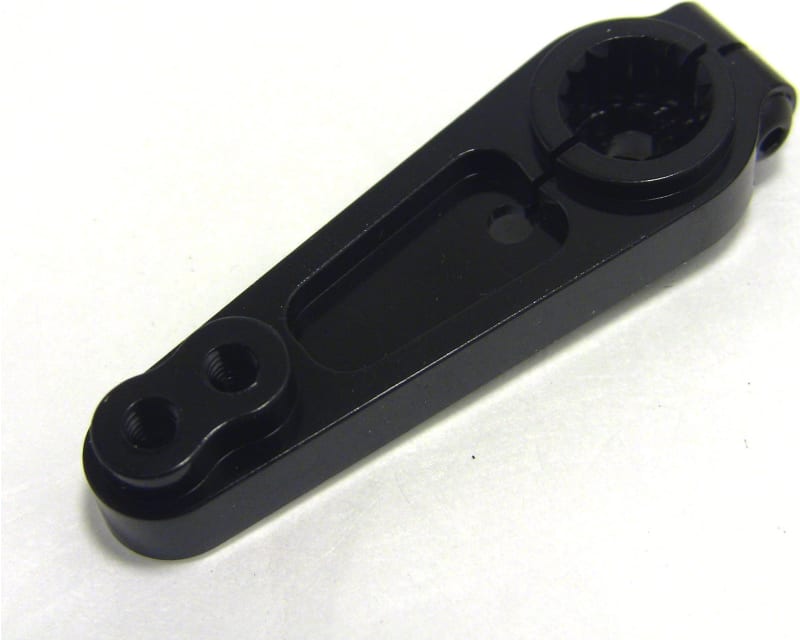

15T Large Scale Clamping Servo Arm
Made by Hot Racing · SH915BJA01
$14.88
Log in to add this part to a parts list to start planning your next project!
Description
Hot Racing aluminum 15T Servo Arm for Hitec servos on the 1/5th HPI Baja 5B 5T most other 1/5 vehicles Losi 5T DBL
- CNC machined aluminum
- Anodized black
- Secondarily processed machined chamfered edges
- Laster engraved lettering
- One (1) servo horn, large 15 spline
- One (1) M2.5x8mm Socket Head Cap Screw for clamp
- Installation
- Medium threadlock for clamping screw
- Spline: large 15T
- Overall length: 43.5mm
- Center to end: 35mm
- Center to outside hole: 31mm
- Center to inside hole: 26mm
- width: 13.5mm
- Body thickness: 5mm
- Drag link mount thickness: 7.5mm
- Drag link mounting holes: M3
description revised by: SN June 19, 2017
FEATURES:
- CNC machined aluminum
- Anodized black
- Secondarily processed machined chamfered edges
- Laster engraved lettering
YOU WILL RECEIVE:
- One (1) servo horn, large 15 spline
- One (1) M2.5x8mm Socket Head Cap Screw for clamp
REQUIREMENTS:
- Installation
- Medium threadlock for clamping screw
SPECIFICATIONS:
- Spline: large 15T
- Overall length: 43.5mm
- Center to end: 35mm
- Center to outside hole: 31mm
- Center to inside hole: 26mm
- width: 13.5mm
- Body thickness: 5mm
- Drag link mount thickness: 7.5mm
- Drag link mounting holes: M3
description revised by: SN June 19, 2017
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles (8)
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.25" 10.13 cm × 10.13 cm × 0.64 cm |
| Part numbers | BJA915BJ01 SH915BJA01 840353315266 083745636352 HRASH915BJA01 |
| Shipping weight | 0.30 ounces 8.50 grams 0.02 pounds |
