25T Large Scale Clamping Servo Arm
Made by Hot Racing · SH925BJA01
$18.88
Log in to add this part to a parts list to start planning your next project!
Description

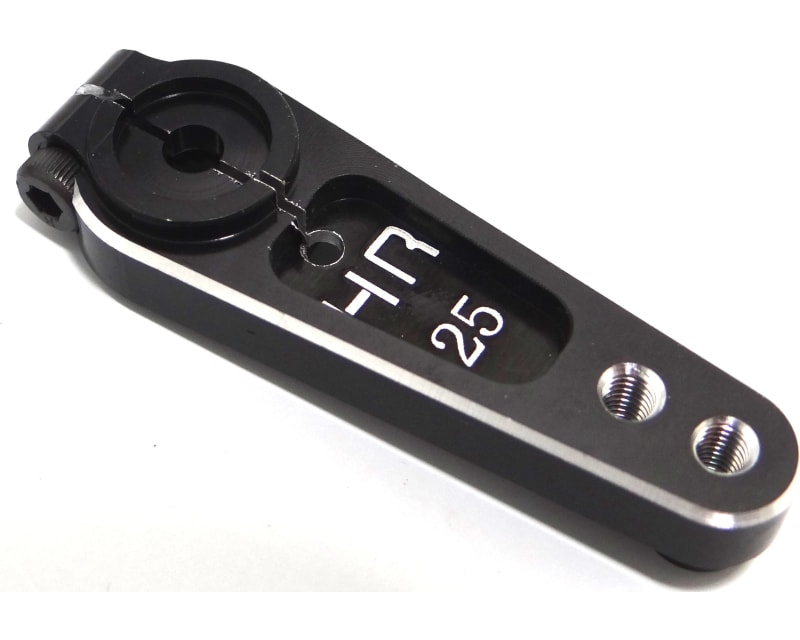

Hot Racing aluminum 25T Servo Arm for HPI (Futaba) servos on the 1/5th HPI Baja 5B and Baja 5T vehicles
- CNC machined aluminum
- Anodized black
- Secondarily processed machined chamfered edges
- Laster engraved lettering
- One (1) M2.5x8mm Socket Head Cap Screw for clamp
- Installation
- Medium threadlock for clamping screw
- Spline: large 25T
- Overall length: 43.5mm
- Center to end: 35mm
- Center to outside hole: 31mm
- Center to inside hole: 26mm
- width: 13.5mm
- Body thickness: 5mm
- Drag link mount thickness: 7.5mm
- Drag link mounting holes: M3
- 15 spline (Hitec) also available, see Hot Racing SH915BJA01
description revised by: SN June 19, 2017
FEATURES:
- Anodized black
- Secondarily processed machined chamfered edges
- Laster engraved lettering

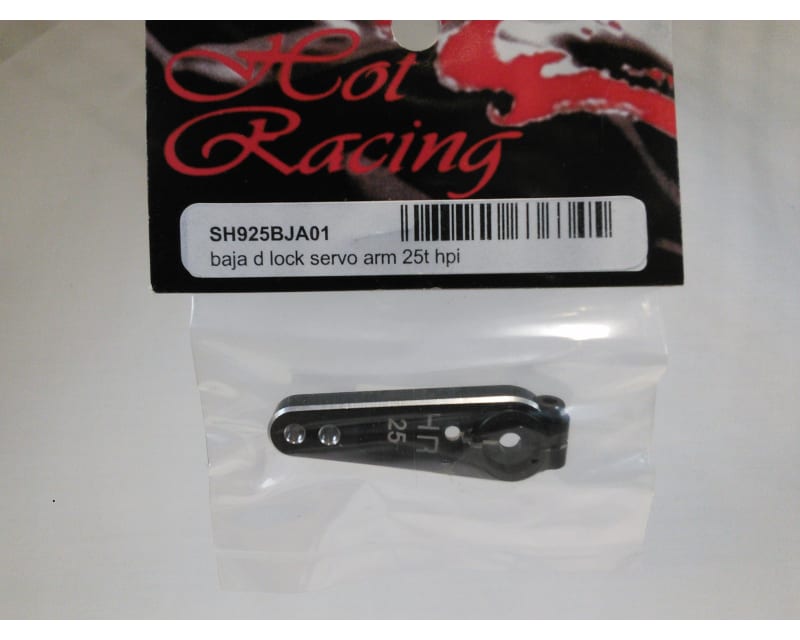

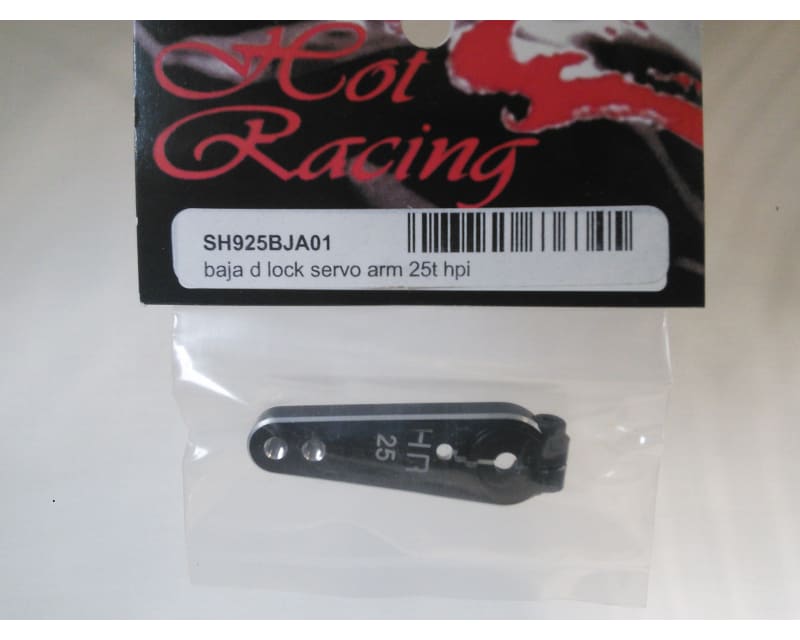

YOU WILL RECEIVE:
- One (1) servo horn, large 25 spline- One (1) M2.5x8mm Socket Head Cap Screw for clamp
REQUIREMENTS:
- Medium threadlock for clamping screw
SPECIFICATIONS:
- Overall length: 43.5mm
- Center to end: 35mm
- Center to outside hole: 31mm
- Center to inside hole: 26mm
- width: 13.5mm
- Body thickness: 5mm
- Drag link mount thickness: 7.5mm
- Drag link mounting holes: M3
COMMENTS:
description revised by: SN June 19, 2017
