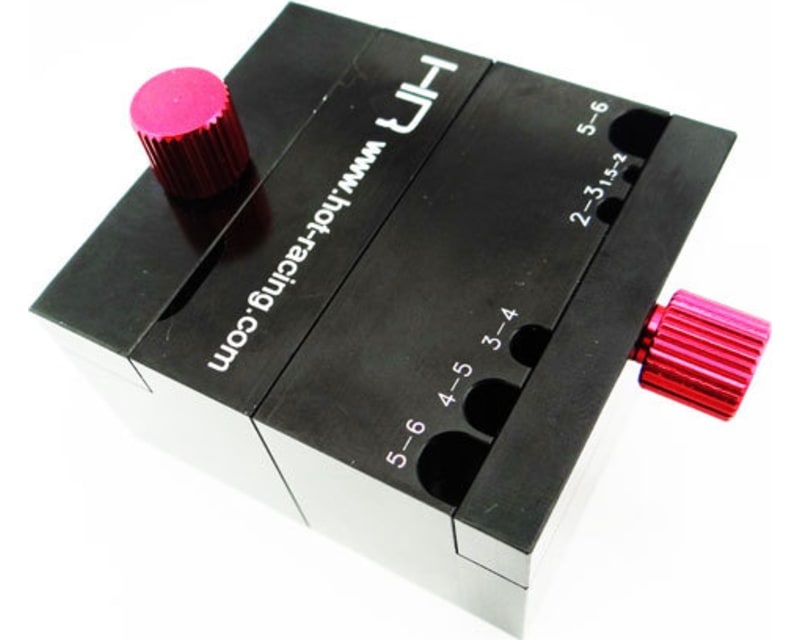

This is Hot Racing RC connector soldering Clamp jig
Ideal for soldering and all types RC connector
This jig quickly and securely clamps, holds, and releases these connectors for your soldering tasks.

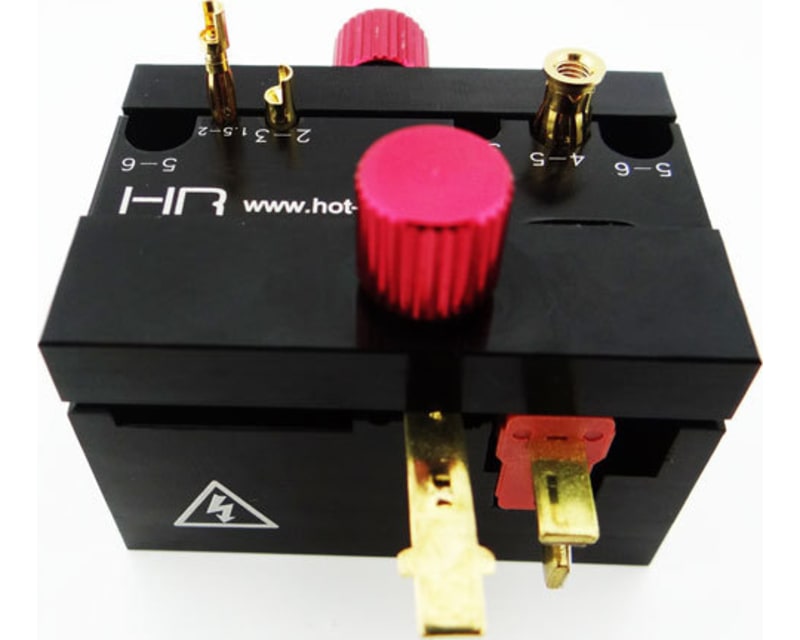

This Jig clamp holds the most RC connectors
XT60
T-plug style connector
TRA connector
EC-2 to EC-5
Micro 2pin to 4pin connectors

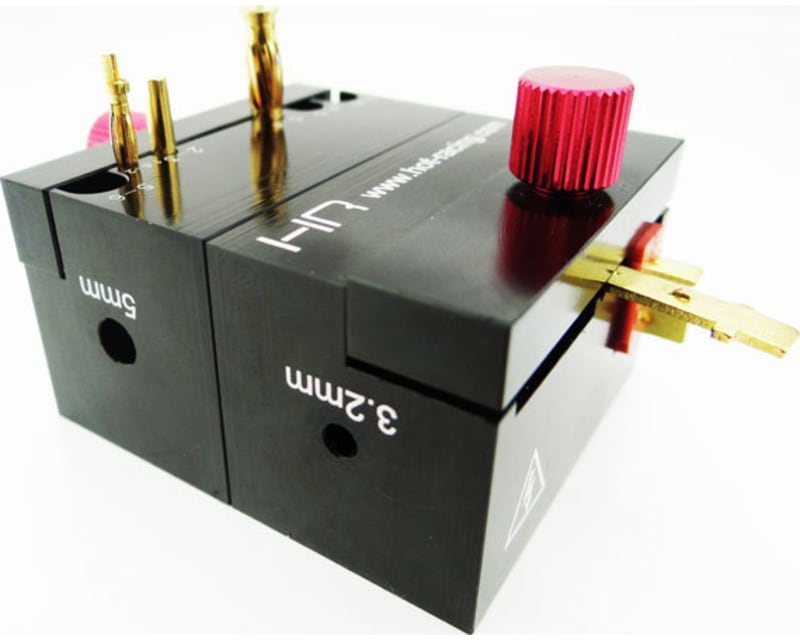

Bullet connectors from 2 to 6.5 mm

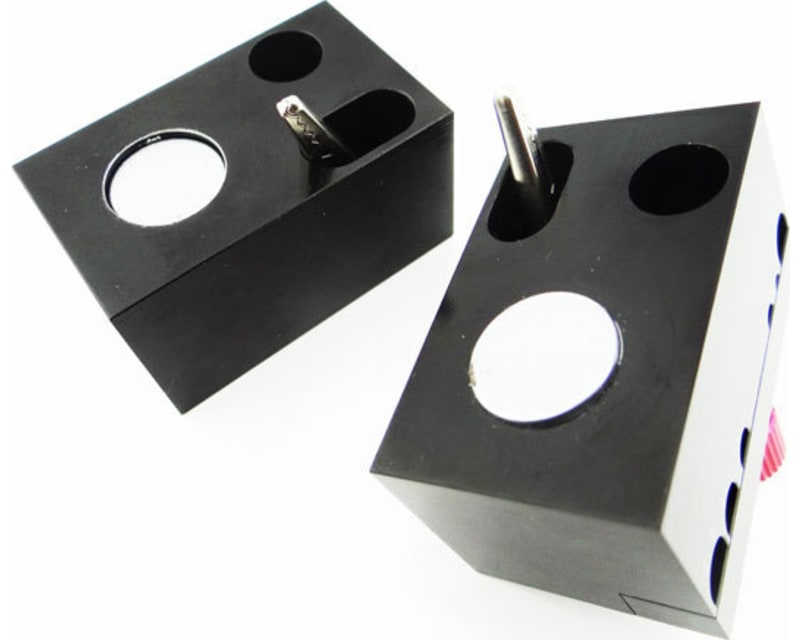

Magnetic two piece design with alligator clips and solder storage

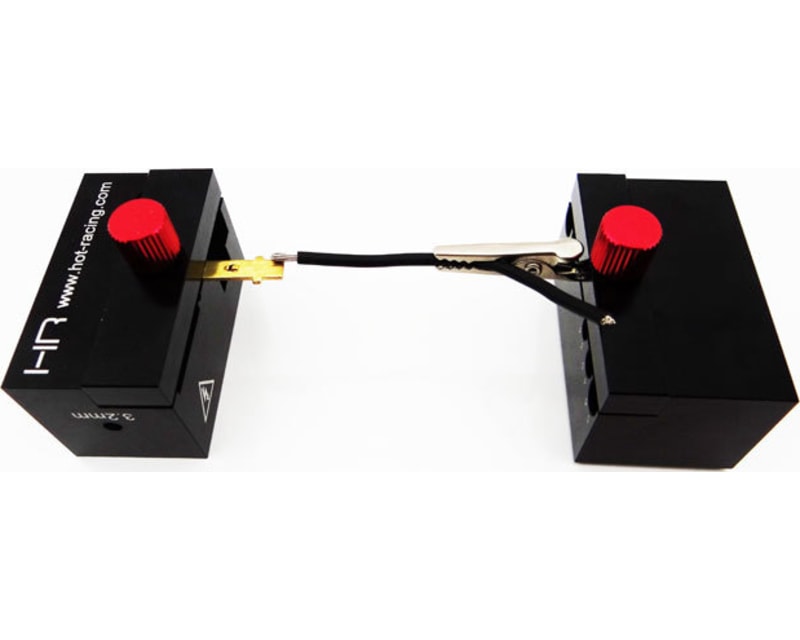

Two alligator clips style holding clamps for wire.
Wide Aluminum base for added stability

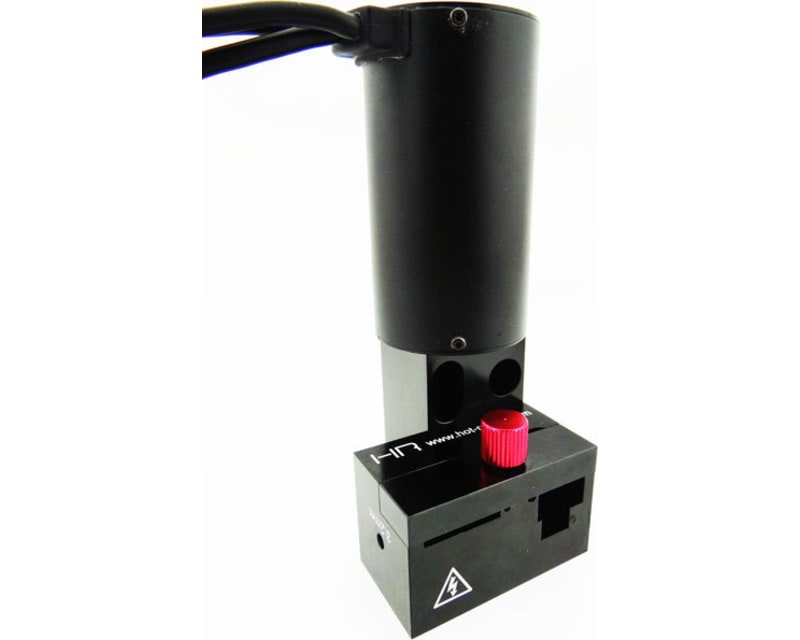

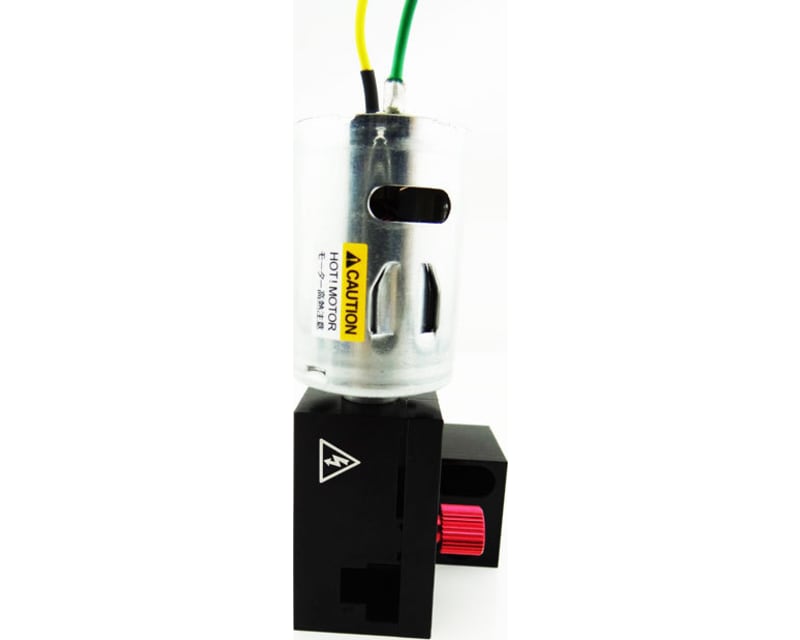

Can be use as motor holder fit both 5mm and 1/8 motor shaft.

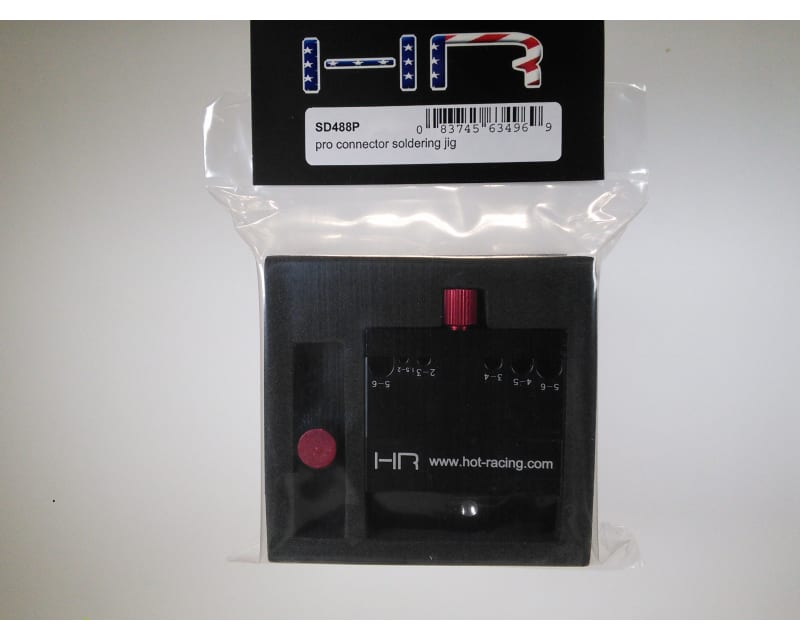

One Hot Racing RC connector soldering Clamp jig with alligator clips and solder storage
.
soldering tip : -
1) soldering iron is must be very HOT!
2) Tin the wires and the connector pins with 60/40 electrical solder
3) Now place the wire and connector pin together with the help of a very hot soldering tip the solder will melts
4) Then remove the soldering tip from the solder join, and let it cool done
Warning
The most dangerous is to connect positive and negative wires together creating a short circuit.
1) One of the wires must be properly isolated at all times.
2) Only clamp on one pin at a time from the same battery.
description revised by: DB September 25, 2014
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 7.00" × 3.75" × 1.00" 17.78 cm × 9.53 cm × 2.54 cm |
| Part numbers | SD488P 840353315181 083745634969 HRASD488P |
| Shipping weight | 7.25 ounces 205.48 grams 0.45 pounds |
