Description

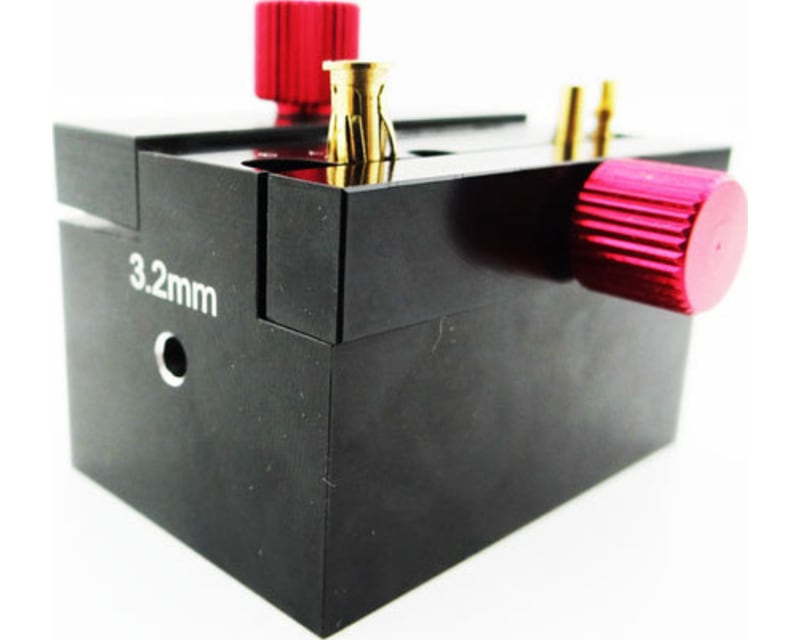

This is Hot Racing RC connector soldering Clamp jig.
Ideal for soldering and all types RC connector
This jig quickly and securely clamps, holds, and releases these connectors for your soldering tasks.

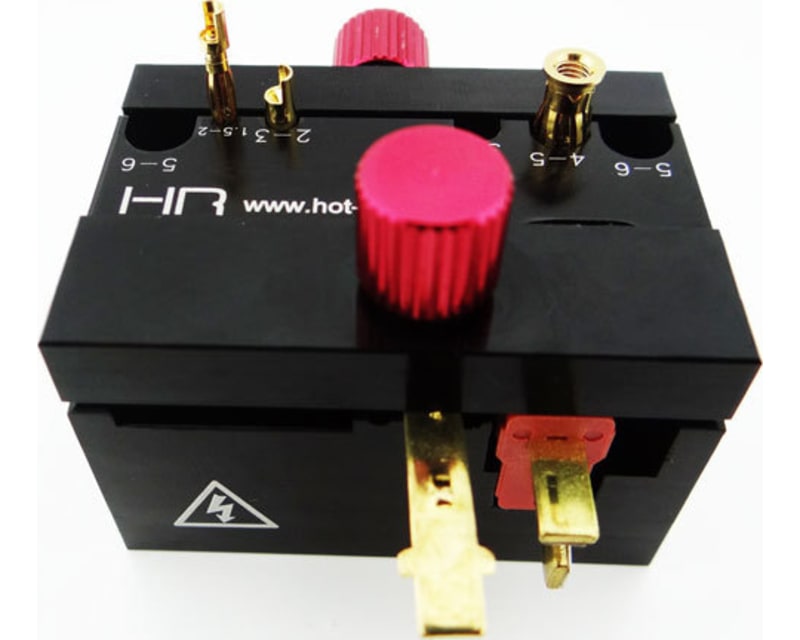

This Jig clamp holds the most common RC connectors

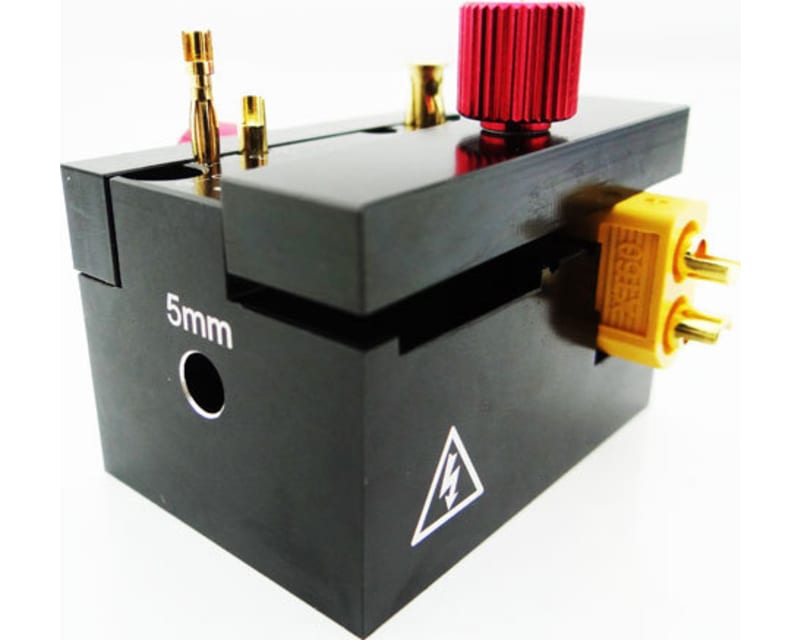

- XT60
- T-Plug connector
- TRA TRX Connector
- EC-2
- EC-3
- EC-4
- EC-5
Micro 2pin to 4pin connectors
Bullet connectors from 2 to 6.5 mm

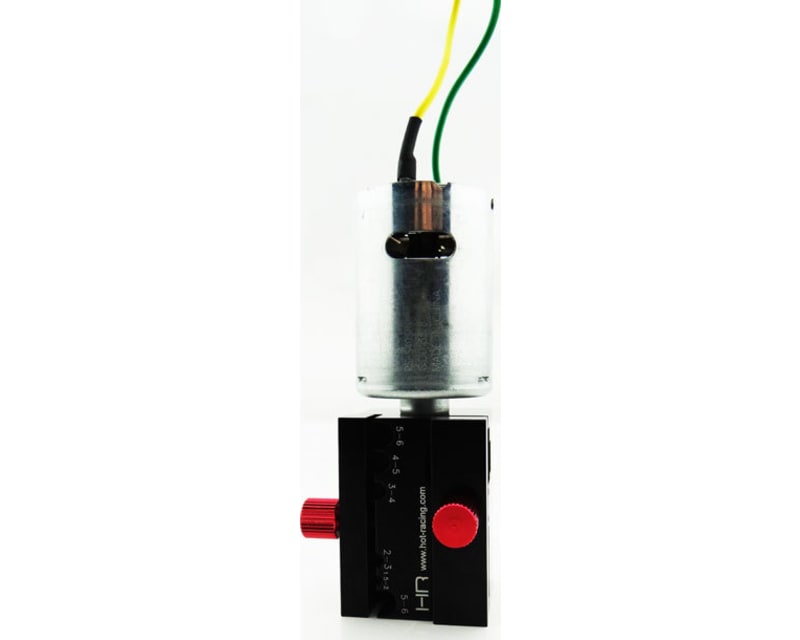

Can be use as motor holder fit both 5mm and 1/8 motor shaft.

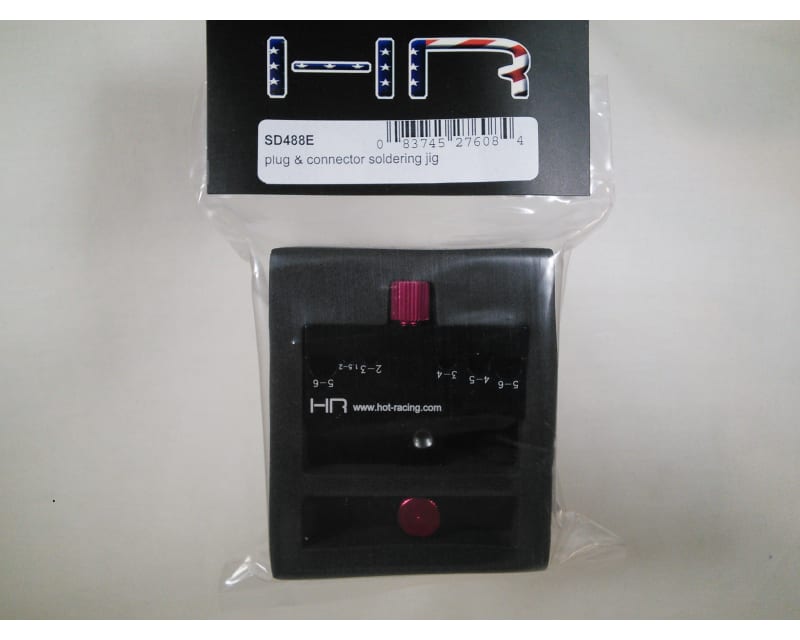

One Hot Racing RC connector soldering Clamp jig
soldering tips:
1) soldering iron is must be very HOT!!!!
2) Tin the wire and the connector pin with good amount of solder.
3) Now place the wire and connector pin together with the help of a very hot soldering tip the solder will melts
4) Then remove the soldering tip from the solder join, and let it cool done
Warning
The most dangerous is to connect positive and negative wires together creating a short circuit.
1) One of the wires must be properly isolated at all times.
2) Only clamp on one pin at a time from the same battery.
description revised by: DB April 28, 2015
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 4.00" × 4.00" × 5.00" 10.16 cm × 10.16 cm × 12.70 cm |
| Part numbers | SD488E 840353306240 083745276084 HRASD488E |
| Shipping weight | 4.99 ounces 141.38 grams 0.31 pounds |
