Description

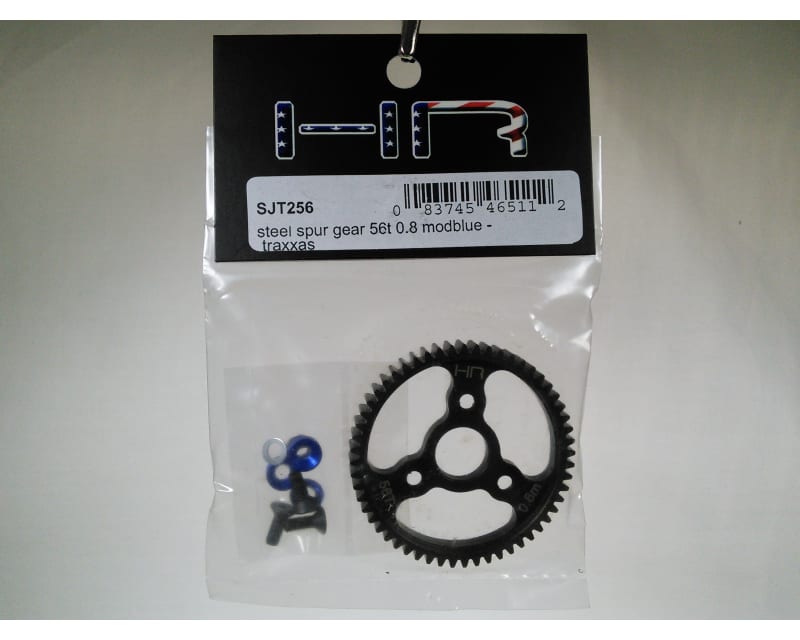

Hot Racing 56 tooth, 32 pitch (0.8 Mod) spur gear for the 1/10 TRA E-Revo, Jato 3.3, T-Maxx 3.3, T-Maxx 2.5R, and Summit
- CNC machined and lightened hardened steel construction
- Black oxide coating for durability and corrosion resistance
- Blue anodized countersunk washers
- Three (3) mounting screws
- Three (3) blue anodized countersunk washers
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)
- Number of Teeth: 56
- Gear Pitch: 32 pitch (0.8 module)
- Mounting Holes: 3
- Tooth Face width: 6mm (0.24 inch)
- Internal diameter: ~11mm (~0.43 inch)
- Hardened clutch bell or pinon gear
- Requires a slipper transmission. Will NOT work with vehicle equipped with a center gear differential. Use Hot Racing SSLF2 series gears for vehicles equipped with a center gear differential.
description revised by: SN July 19, 2017
FEATURES:
- Black oxide coating for durability and corrosion resistance
- Blue anodized countersunk washers
YOU WILL RECEIVE:
- 56 tooth 32 pitch spur gear- Three (3) mounting screws
- Three (3) blue anodized countersunk washers
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)
SPECIFICATIONS:
- Gear Pitch: 32 pitch (0.8 module)
- Mounting Holes: 3
- Tooth Face width: 6mm (0.24 inch)
- Internal diameter: ~11mm (~0.43 inch)
REQUIREMENTS:
- Requires a slipper transmission. Will NOT work with vehicle equipped with a center gear differential. Use Hot Racing SSLF2 series gears for vehicles equipped with a center gear differential.
description revised by: SN July 19, 2017
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 2.00" × 3.00" × 0.55" 5.08 cm × 7.62 cm × 1.40 cm |
| Part numbers | AG46511 SJT256 840353311084 083745465112 HRASJT256 |
| Shipping weight | 1.00 ounces 28.35 grams 0.06 pounds |
