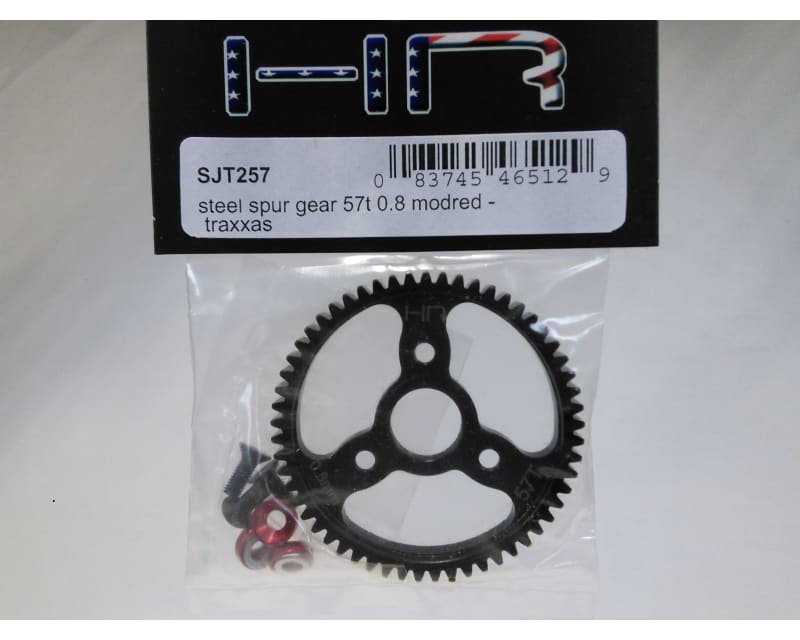

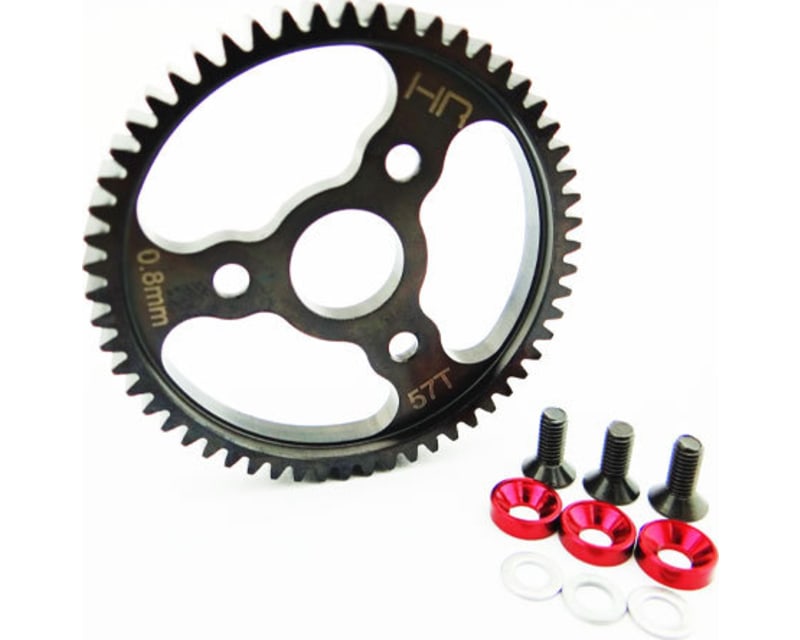

Steel Spur Gear (57t 0.8 Mod)(Red) - TRA
Made by Hot Racing · SJT257
$20.88
Log in to add this part to a parts list to start planning your next project!
Description
Hot Racing 57 tooth, 32 pitch (0.8 Mod) spur gear for the 1/10 TRA E-Revo, Jato 3.3, T-Maxx 3.3, T-Maxx 2.5R, and Summit
- CNC machined and lightened hardened steel construction
- Black oxide coating for durability and corrosion resistance
- Red anodized countersunk washers
- Three (3) mounting screws
- Three (3) red anodized countersunk washers
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)
- Number of Teeth: 57
- Gear Pitch: 32 pitch (0.8 module)
- Mounting Holes: 3
- Tooth Face width: 6mm (0.24 inch)
- Internal diameter: ~11mm (~0.43 inch)
- Hardened clutch bell or pinon gear
- Requires a slipper transmission. Will NOT work with vehicle equipped with a center gear differential. Use Hot Racing SSLF2 series gears for vehicles equipped with a center gear differential.
description revised by: SN July 19, 2017
FEATURES:
- Black oxide coating for durability and corrosion resistance
- Red anodized countersunk washers
YOU WILL RECEIVE:
- 57 tooth 32 pitch (0.8mod) spur gear- Three (3) mounting screws
- Three (3) red anodized countersunk washers
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)
SPECIFICATIONS:
- Gear Pitch: 32 pitch (0.8 module)
- Mounting Holes: 3
- Tooth Face width: 6mm (0.24 inch)
- Internal diameter: ~11mm (~0.43 inch)
REQUIREMENTS:
- Requires a slipper transmission. Will NOT work with vehicle equipped with a center gear differential. Use Hot Racing SSLF2 series gears for vehicles equipped with a center gear differential.
description revised by: SN July 19, 2017
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles (5)
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 2.00" × 3.00" × 0.55" 5.08 cm × 7.62 cm × 1.40 cm |
| Part numbers | SJT257 SRV257 840353302860 083745465129 HRASJT257 |
| Shipping weight | 1.10 ounces 31.18 grams 0.07 pounds |
