RTR Axial AX10 Scorpion
Made by Axial Racing · AXIAX90002
Sale
-52%
$228.88
List price: $475.00
Discontinued
This part is discontinued and we no longer carry it.
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description

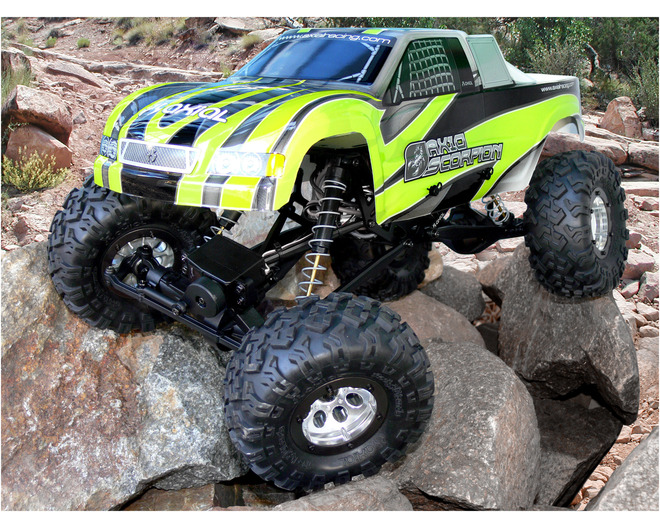

This is the 1/10 scale electric powered, radio controlled, ready to run
Axial AX10 Scorpion Rock Racer off-road Truck.
Chassis: Twin 0.10 (2.5mm) aluminum side plates with aluminum posts
and molded nylon skid plate
Drive: Four wheel drive, with installed rear diff locker, front diff
locker included for true rock crawler performance or leave out for
faster speed
Motor: Axial 27 turn 540/550 size
Electronic Speed Control: Forward and reverse
Radio: 2-channel with high torque servo
Pinion Gear: 20 tooth installed for faster speed, 14 tooth included
for slower rock crawling ratio
Spur Gear: 87 tooth
Ball Bearings: Full set included
Shocks: 80-125mm shocks for super articulation, titanium nitride
coated shock shafts for smooth operation
Gearbox: Sealed front and rear
Differentials: Front-gear diff, Rear-locked (spool)
Transmission: 2.6:1 center mounted single speed with overall gear
ratio range from 15:1 to 74:1, universal front and rear drive
shafts
Tires: 2.2 (56mm) wide Rock Lizard, 4.75 (120.65mm) diameter
Wheels: 2.2 (56mm) wide eight hole Rockster beadlocks (satin
chrome) 2.51 (64mm) diameter
Suspension: Three link, all links constructed of light weight
and strong aluminum
Body:
Axial AX10 Scorpion Rock Racer off-road Truck, body, 2-ch radio,
27T motor, ESC, instruction manual
Radio Batteries: (8) AA size
Battery: 7.2V 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment
VEHICLE-
length: 17.25 (438mm)
width: 10 (254mm)
height: 6.125 (156mm)
Weight: 3.5 lbs (1588g) approx.
Wheelbase: 12 - 12.6 (304 - 320mm)
Ground Clearance: 3.125 (79mm)
Articulation: 70
Gear Ratio: Adjustable from 15:1 - 74:1 with different pinion and
spur gear choices
Tires: 2.2 x 4.75 (56 x 120.65mm)
BODY-
length: 17.75 (451mm)
width: 7.5 (190mm)
height: 5 (125mm)
For Replacement Ball Bearings use:
Qty. Size Location Bearing Set Qty.
4 10x15 Gearbox
8 5x11 Gearbox
4 5x10 Gearbox
2 8x16 Gearbox
4 5x11 Axle
4 10x15 Axle
Axial AX10 Scorpion Rock Racer off-road Truck.
FEATURES:
Chassis: Twin 0.10 (2.5mm) aluminum side plates with aluminum posts
and molded nylon skid plate
Drive: Four wheel drive, with installed rear diff locker, front diff
locker included for true rock crawler performance or leave out for
faster speed
Motor: Axial 27 turn 540/550 size
Electronic Speed Control: Forward and reverse
Radio: 2-channel with high torque servo
Pinion Gear: 20 tooth installed for faster speed, 14 tooth included
for slower rock crawling ratio
Spur Gear: 87 tooth
Ball Bearings: Full set included
Shocks: 80-125mm shocks for super articulation, titanium nitride
coated shock shafts for smooth operation
Gearbox: Sealed front and rear
Differentials: Front-gear diff, Rear-locked (spool)
Transmission: 2.6:1 center mounted single speed with overall gear
ratio range from 15:1 to 74:1, universal front and rear drive
shafts
Tires: 2.2 (56mm) wide Rock Lizard, 4.75 (120.65mm) diameter
Wheels: 2.2 (56mm) wide eight hole Rockster beadlocks (satin
chrome) 2.51 (64mm) diameter
Suspension: Three link, all links constructed of light weight
and strong aluminum
Body:
YOU WILL RECEIVE:
Axial AX10 Scorpion Rock Racer off-road Truck, body, 2-ch radio,
27T motor, ESC, instruction manual
REQUIREMENTS:
Radio Batteries: (8) AA size
Battery: 7.2V 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment
SPECIFICATIONS:
VEHICLE-
length: 17.25 (438mm)
width: 10 (254mm)
height: 6.125 (156mm)
Weight: 3.5 lbs (1588g) approx.
Wheelbase: 12 - 12.6 (304 - 320mm)
Ground Clearance: 3.125 (79mm)
Articulation: 70
Gear Ratio: Adjustable from 15:1 - 74:1 with different pinion and
spur gear choices
Tires: 2.2 x 4.75 (56 x 120.65mm)
BODY-
length: 17.75 (451mm)
width: 7.5 (190mm)
height: 5 (125mm)
COMMENTS:
For Replacement Ball Bearings use:
Qty. Size Location Bearing Set Qty.
4 10x15 Gearbox
8 5x11 Gearbox
4 5x10 Gearbox
2 8x16 Gearbox
4 5x11 Axle
4 10x15 Axle
