OT 57t Mod 0.8 Steel Spur Gear Arrma 1:10 4x4 Blx 3S 4S
Made by Hot Racing · STFF257N
$40.88
10+ in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description

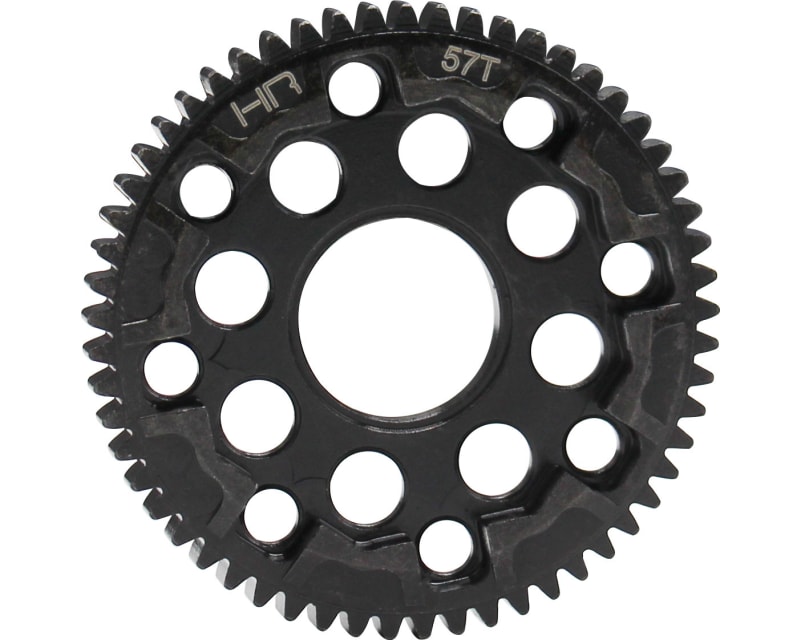

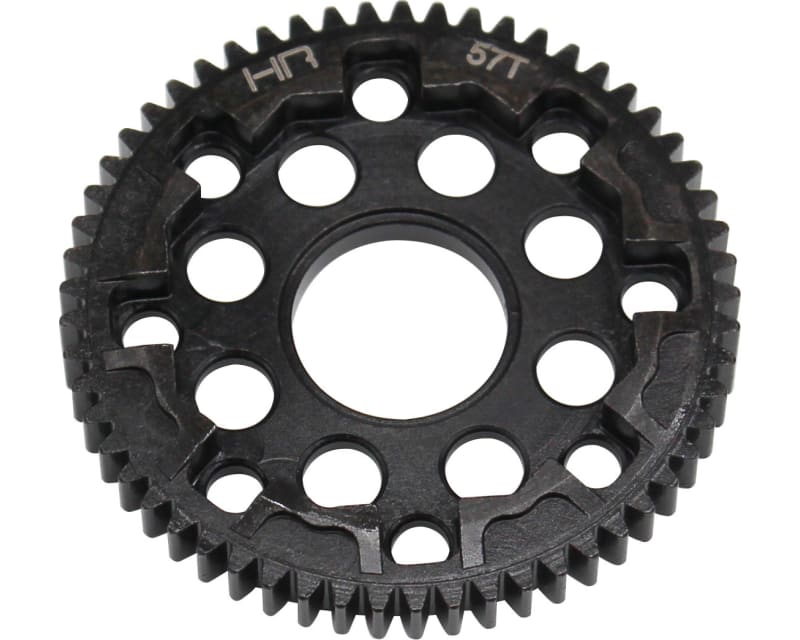

Hot Racing steel super duty 0.8 Mod (32 pitch), 57 tooth spur gear for 1/10 Arrma 4X4 4S 3S BLX brushless vehicles.
See comments below for specific vehicle fit information.
- CNC machined and lightened hardened steel construction
- Replaces factory plastic gear
- Black oxide coating for durability and corrosion resistance

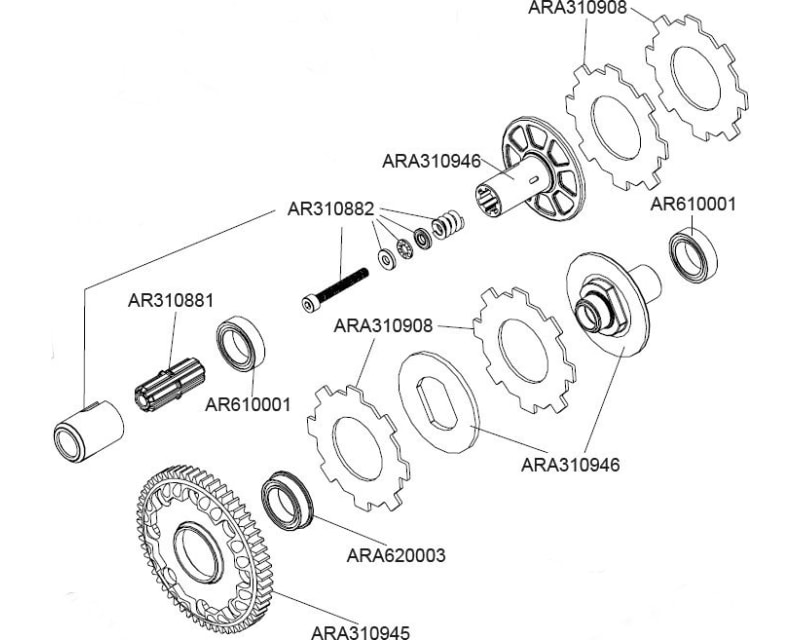

- Can uses factory slipper pads ARA310908 or Hot Racing ATF15N aluminum slipper pad(s)
- Gear Pitch: 32 pitch (0.8 module)
- Tooth Face width: 0.24 inch (6mm)
- KRATON 4X4 4S BLX: ARA102690 and ARA4408V2T1
- OUTCAST 4X4 4S BLX: ARA102692
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
For the following 3S BLX you will need add one more slipper pads (4 total) .
Or order SATF257
- Big Rock 4X4 3S BLX: AR102723 AR102711
- Granite 4X4 3S BLX: AR102720T1 ARA102720T2 AR102666
- Senton 4X4 3S BLX: AR102721T1, AR102721T2 AR102668
- Typhon 4X4 3S BLX: AR102722, AR102696
See comments below for specific vehicle fit information.
FEATURES:
- Rugged 32 pitch (0.8 module) for total reliability when using high power brushless systems- CNC machined and lightened hardened steel construction
- Replaces factory plastic gear
- Black oxide coating for durability and corrosion resistance
- Can uses factory slipper pads ARA310908 or Hot Racing ATF15N aluminum slipper pad(s)
YOU WILL RECEIVE:
- One (1) 57T 32 pitch (Mod 0.8) spur gearSPECIFICATIONS:
- Number of Teeth: 57- Gear Pitch: 32 pitch (0.8 module)
- Tooth Face width: 0.24 inch (6mm)
COMMENTS:

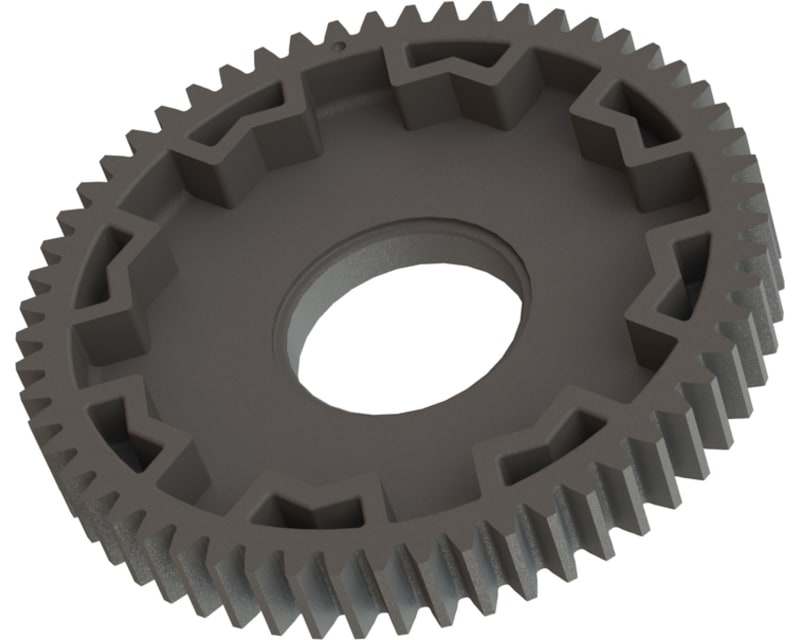

- Direct replacment OF ARA310945 0.8Mod (32P) 57T spur gear- KRATON 4X4 4S BLX: ARA102690 and ARA4408V2T1
- OUTCAST 4X4 4S BLX: ARA102692
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
For the following 3S BLX you will need add one more slipper pads (4 total) .
Or order SATF257
- Big Rock 4X4 3S BLX: AR102723 AR102711
- Granite 4X4 3S BLX: AR102720T1 ARA102720T2 AR102666
- Senton 4X4 3S BLX: AR102721T1, AR102721T2 AR102668
- Typhon 4X4 3S BLX: AR102722, AR102696
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 2.00" × 3.00" × 0.30" 5.08 cm × 7.62 cm × 0.76 cm |
| Part numbers | SATF257N STFF257N 840353309692 083745371918 HRASTFF257N |
| Shipping weight | 1.45 ounces 41.04 grams 0.09 pounds |
