57t Mod 0.8 Steel Spur Gear Arrma 1:10 4x4 Blx
Made by Hot Racing · SATF257
$28.88
Log in to add this part to a parts list to start planning your next project!
Description

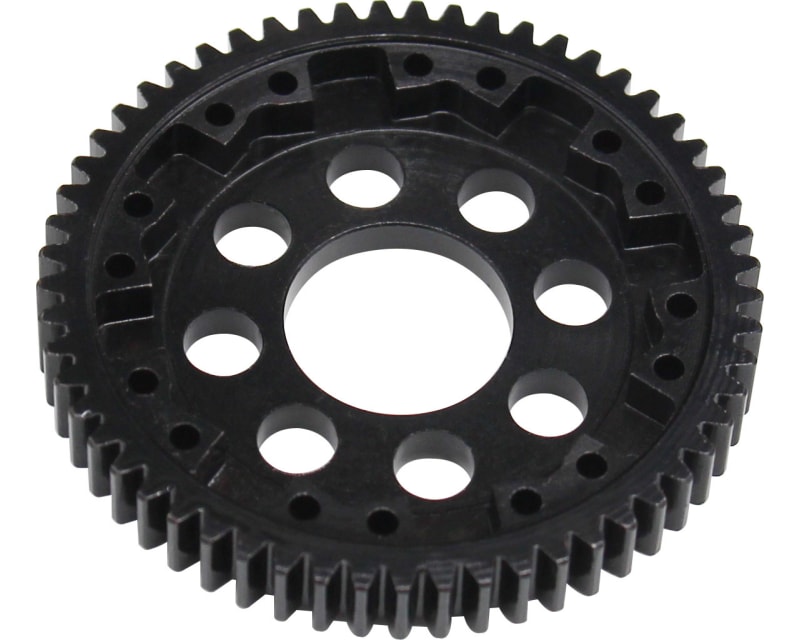

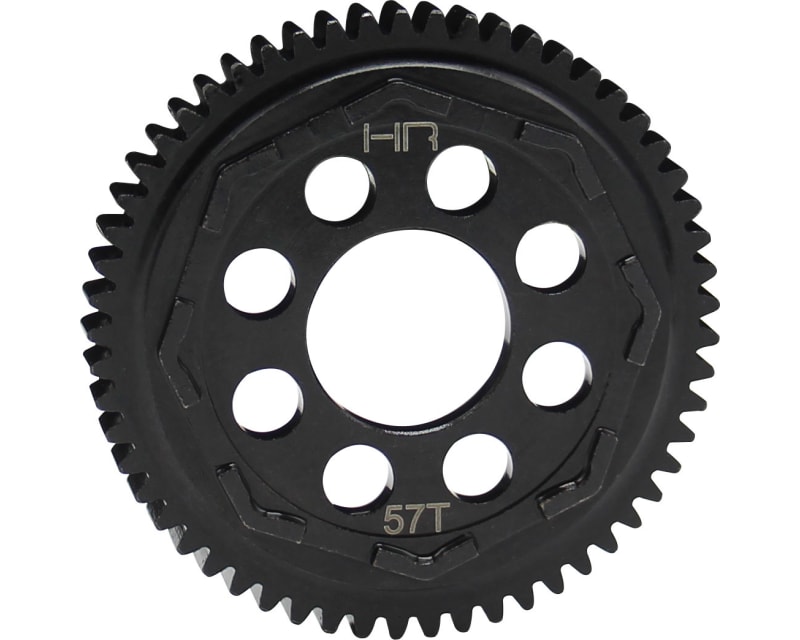

Hot Racing steel super duty 0.8 Mod (32 pitch), 57 tooth spur gear for 1/10 Arrma 4X4 3S BLX brushless vehicles. See comments below for specific vehicle fit information.
- CNC machined and lightened hardened steel construction
- Replaces factory plastic gear
- Black oxide coating for durability and corrosion resistance
- Can uses factory slipper pads (AR310790) (AR310908) or Hot Racing ATF15H ATF15HN aluminum slipper pad(s)
- Gear Pitch: 32 pitch (0.8 module)
- Tooth Face width: 0.24 inch (6mm)
- It will also with with Hot Racing ATF15H aluminum slipper pad(s)

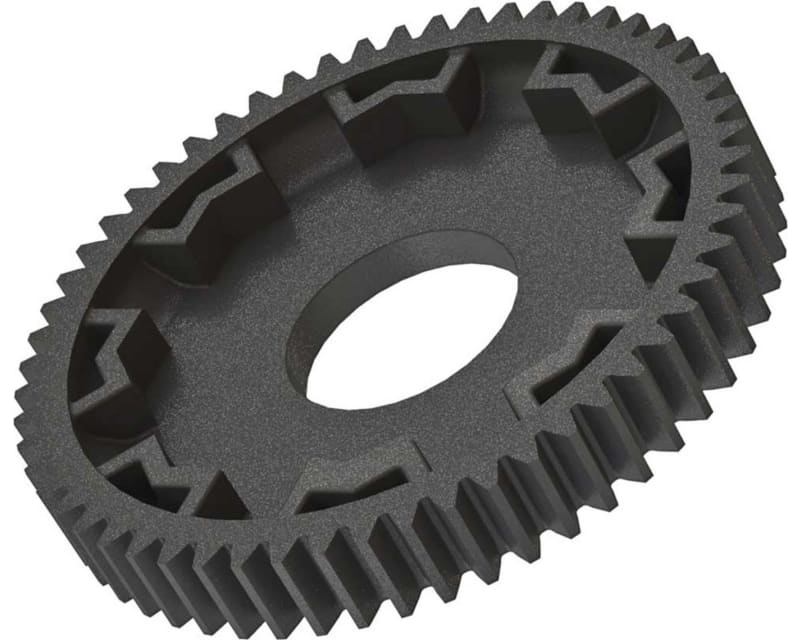

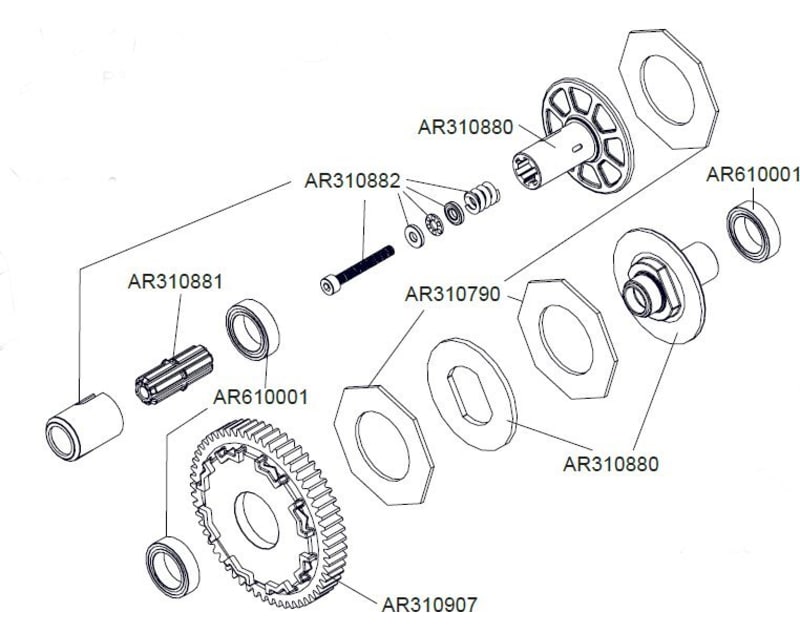

- Upgrade for factory plastic AR310907/AR310879/310947/ 0.8Mod (32P) 57T spur gear
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Big Rock 4X4 3S BLX: AR102711
- Granite 4X4 3S BLX: AR102666
- Senton 4X4 3S BLX: AR102668
- Typhon 4X4 3S BLX: AR102696
description revised by: SN February 8, 2019
FEATURES:
- Rugged 32 pitch (0.8 module) for total reliability when using high power brushless systems- CNC machined and lightened hardened steel construction
- Replaces factory plastic gear
- Black oxide coating for durability and corrosion resistance
- Can uses factory slipper pads (AR310790) (AR310908) or Hot Racing ATF15H ATF15HN aluminum slipper pad(s)
YOU WILL RECEIVE:
- One (1) 57T 32 pitch (Mod 0.8) spur gearSPECIFICATIONS:
- Number of Teeth: 57- Gear Pitch: 32 pitch (0.8 module)
- Tooth Face width: 0.24 inch (6mm)
COMMENTS:
- New gear are up dated to work with both (AR310790) (AR310908) Slipper - It will also with with Hot Racing ATF15H aluminum slipper pad(s)
- Upgrade for factory plastic AR310907/AR310879/310947/ 0.8Mod (32P) 57T spur gear
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Big Rock 4X4 3S BLX: AR102711
- Granite 4X4 3S BLX: AR102666
- Senton 4X4 3S BLX: AR102668
- Typhon 4X4 3S BLX: AR102696
description revised by: SN February 8, 2019
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles (9)
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.25" 10.13 cm × 10.13 cm × 0.64 cm |
| Part numbers | SATF257 840353306967 083745293425 HRASATF257 |
| Shipping weight | 1.64 ounces 46.36 grams 0.10 pounds |
