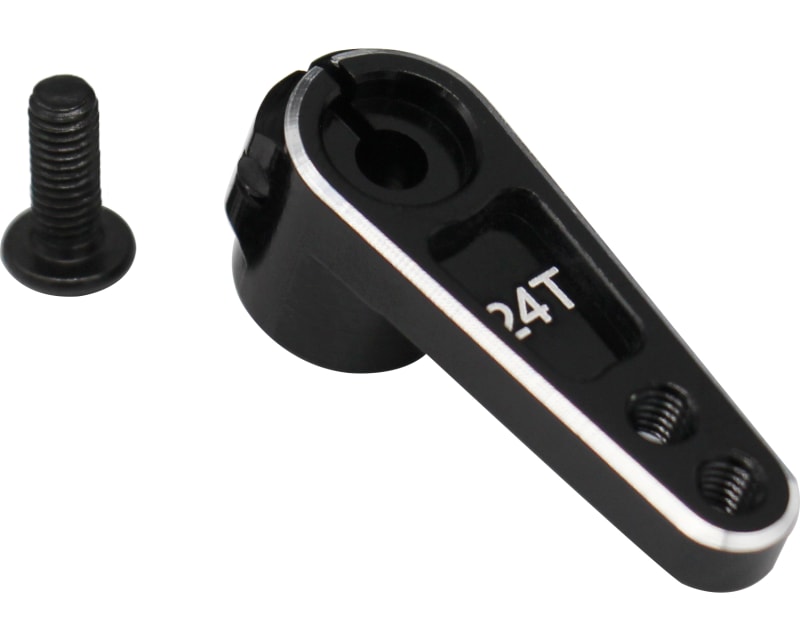

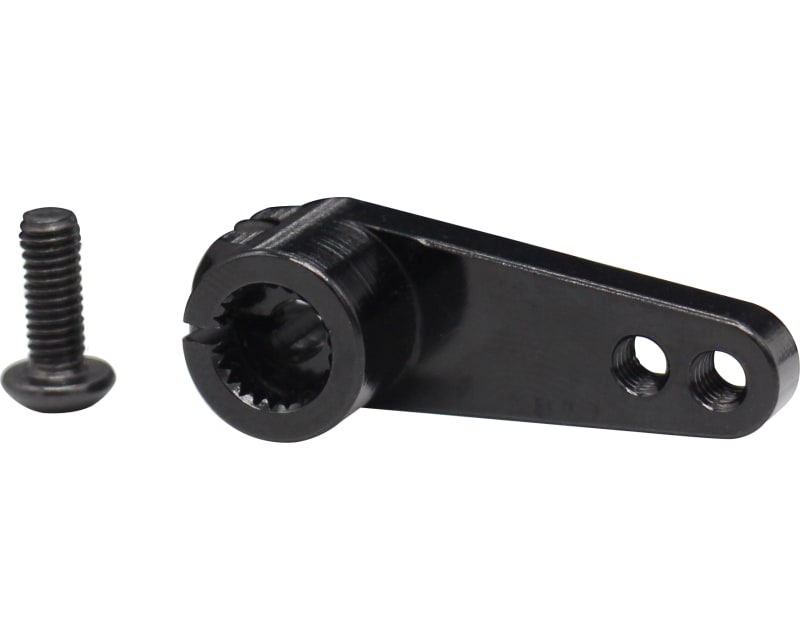

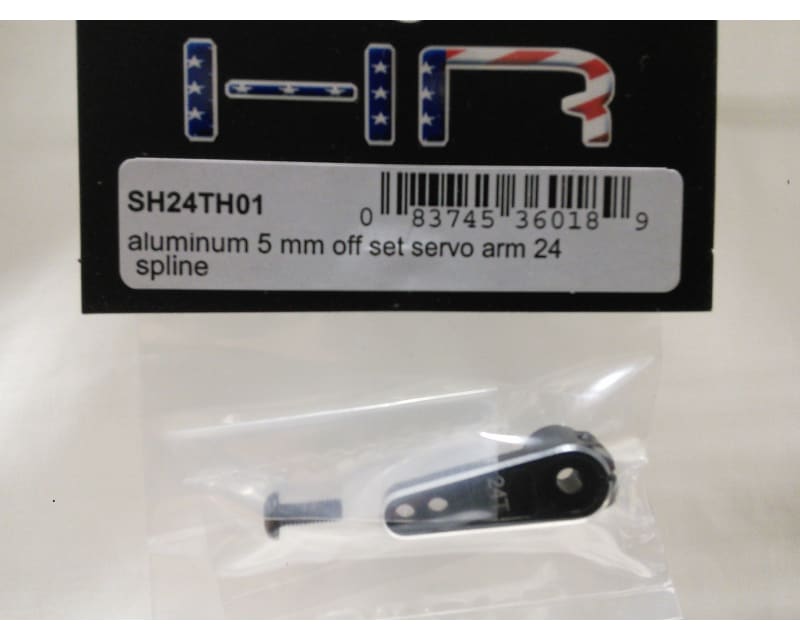

Aluminum 5 mm Off set servo arm 24 Spline

Made by Hot Racing · SH24TH01

$15.88
10+ in stock

Parts lists

Log in to add this part to a parts list to start planning your next project!

Description

Hot Racing clamping servo horn (servo arm) for 24 spline HItec servo
FEATURES:
- Lock clamp gives precise and secure fit
- CNC machined 6061 aluminum, anodized black
- Two M3 holes
YOU WILL RECEIVE:
- One (1) 24T servo horn
- One(1) M2.5x4mm socket head cap screws for clamp
REQUIREMENTS:
- 24 spline servos
- Servo screw
- Thread lock adhesive
SPECIFICATIONS:
-Distance Hole A: 16mm
-Distance Hole B: 20mm
-Thickness: 10mm
-Offset : 5mm
-Material: 6061-T6 Aluminum
-Spline: 24T
- Arm Thickness: ~3.5mm
- length: ~28.5mm

Manufacturer information

Hot Racing logo

Hot Racing

140 Hayward St

Manchester, NH 03103

https://www.hot-racing.com/

All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.

Related parts

X shaped CNC Alum. servo arm
SH0402
X shaped CNC Alum. servo arm
$8.88
10+ in stock

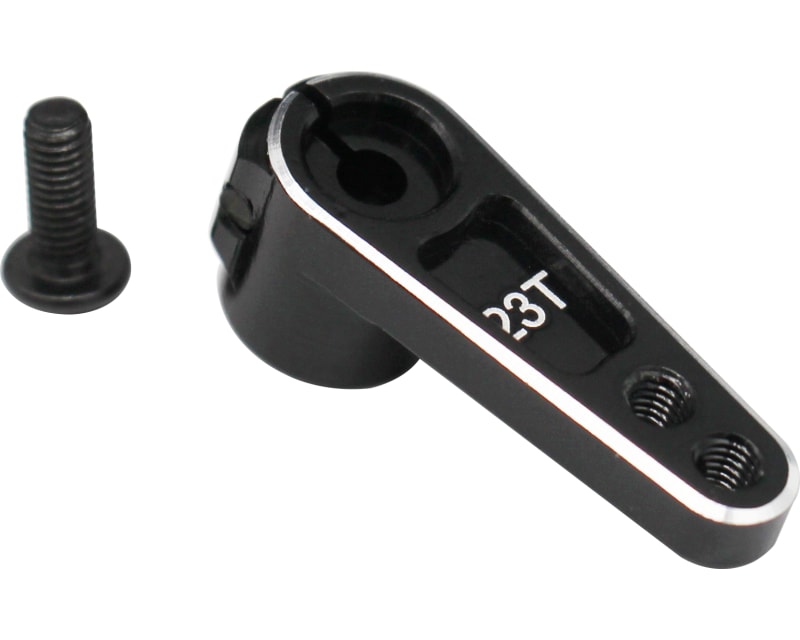

Aluminum 5 mm Off set servo arm 23 Spline
SH23TH01
Aluminum 5 mm Off set servo arm 23 Spline
$15.88
10+ in stock

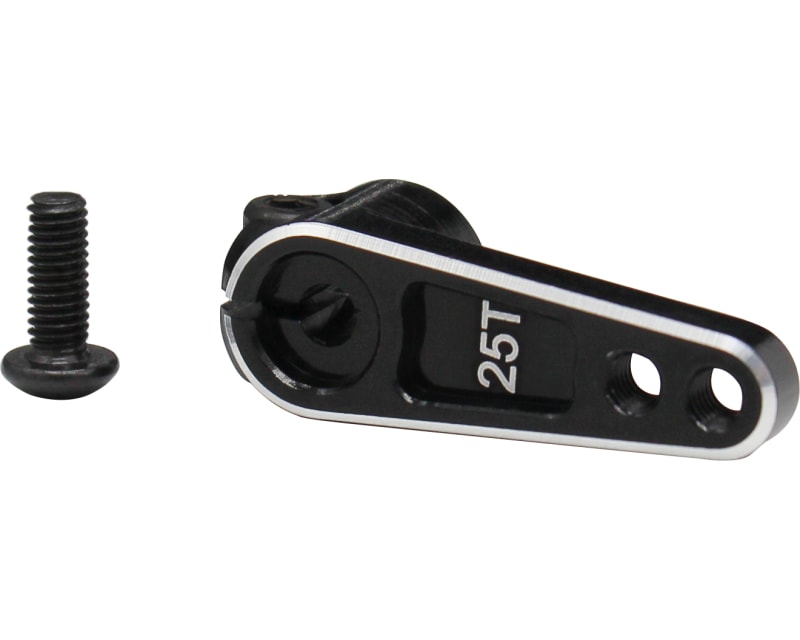

Aluminum 5 mm Off set servo arm 25 Spline
