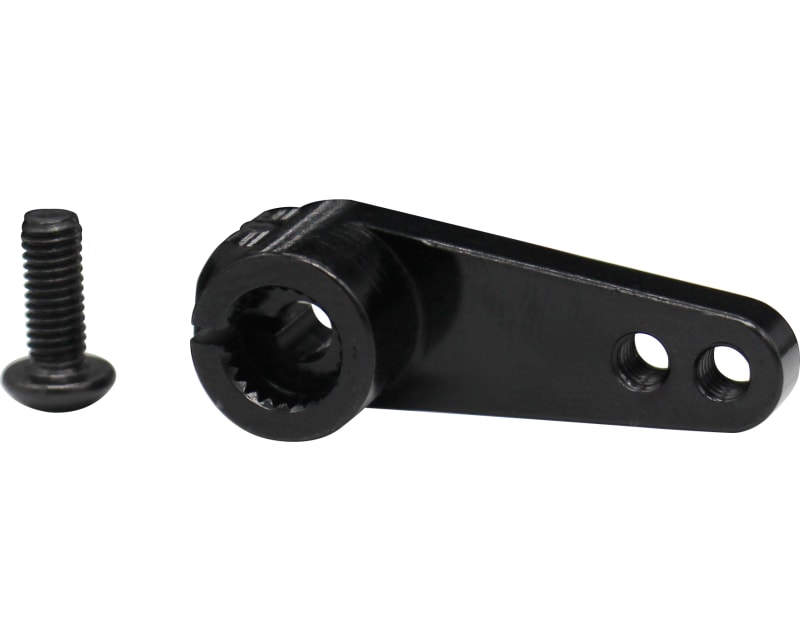

Aluminum 5 mm Off set servo arm 23 Spline
Made by Hot Racing · SH23TH01
$10.88
Log in to add this part to a parts list to start planning your next project!
Description
Hot Racing clamping servo horn (servo arm) for 23 spline (JR/Airtronics/KO/) servos
- 6061 Aluminum Material anodized black
- Strong/Thick
- Increased arm offset for better clearance
- Two M3 drag link mounting holes
- Single Clamp Screw
- One(1) M2.5x5mm socket head cap screws for clamp
- Servo screw
- Thread lock adhesive
-Distance Hole B: 20mm
-Thickness: 10mm
-Offset : 5mm
-Material: 6061-T6 Aluminum
-Spline: 23T
- Arm Thickness: ~3.5mm
- length: ~28.5mm
FEATURES:
- 23T-JR/Airtronics/KO/- 6061 Aluminum Material anodized black
- Strong/Thick
- Increased arm offset for better clearance
- Two M3 drag link mounting holes
- Single Clamp Screw
YOU WILL RECEIVE:

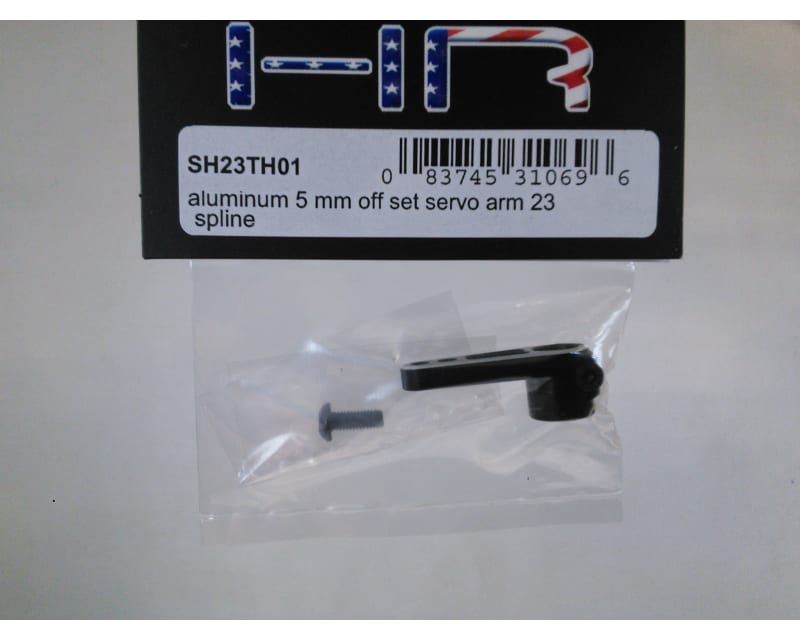

- One (1) 23T servo horn- One(1) M2.5x5mm socket head cap screws for clamp
REQUIREMENTS:
- 23 spline servo (JR/Airtronics/KO/)- Servo screw
- Thread lock adhesive
SPECIFICATIONS:
-Distance Hole A: 16mm -Distance Hole B: 20mm
-Thickness: 10mm
-Offset : 5mm
-Material: 6061-T6 Aluminum
-Spline: 23T
- Arm Thickness: ~3.5mm
- length: ~28.5mm
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.25" 10.13 cm × 10.13 cm × 0.64 cm |
| Part numbers | SH23TH01 840353307896 083745310696 HRASH23TH01 |
| Shipping weight | 0.22 ounces 6.26 grams 0.01 pounds |
