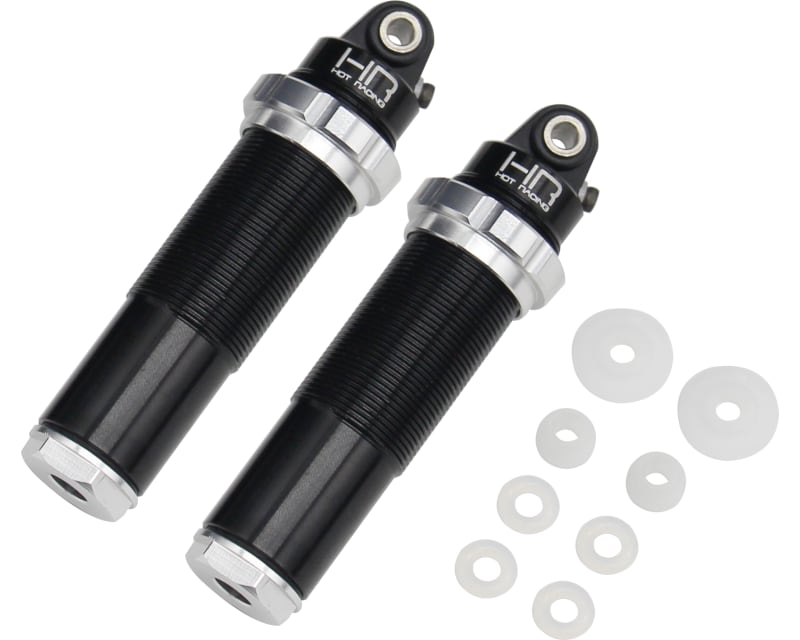

Aluminum Threaded Rear Bleeder Shock Bodies Arrma 1:10 4x4
Made by Hot Racing · ATF155AR08
$18.88
Log in to add this part to a parts list to start planning your next project!
Description
Hot Racing aluminum threaded rear shock bodies for 1/10 Arrma 4X4 Mega and 3S BLX vehicles. See vehicle compatibility in comments below.
- Bleeder screws for easy shock maintenance
- Spring collars feature an o-ring to lock the collar in place to prevent unwanted movement
- CNC turned and machined 6061-T6 aluminum construction, anodized silver
- Two (2) screw-on o-ring cap eliminates the plastic seal retainer
- Two (2) aluminum spring adjusters/collars
- Existing stock shock components
- Length (Threads):
- OD:
- For front shock bodies, see Hot Racing ATF155AF08

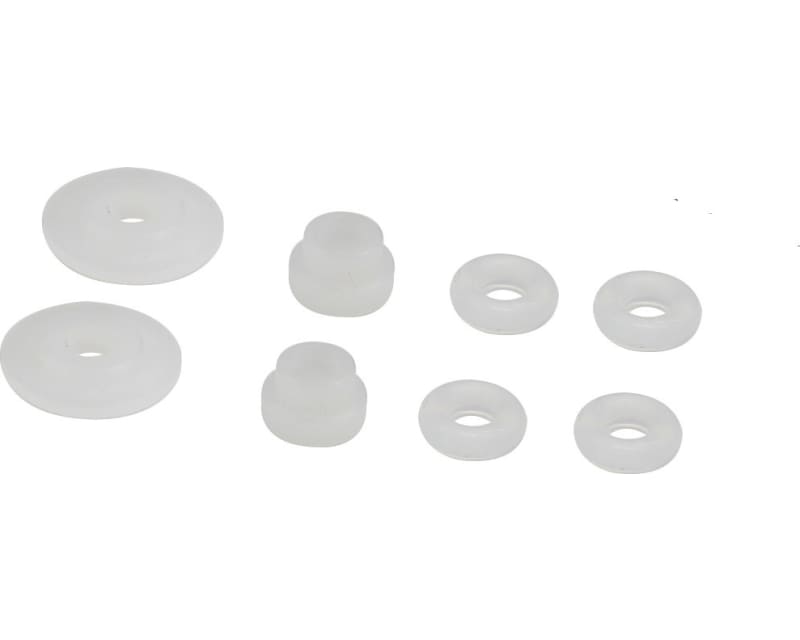

- For rebuild kit, see AFT155R
- Known to fit the following Arrma vehicle models numbers (may also fit vehicles released after this list was created):
- Gorgon 2WD ARA3230T1, ARA3230ST1, ARA3230SKT1
- Big Rock 4X4 3S BLX: AR102711, ARA102723, ARA4312V3
- Granite 4X4: AR102665 (green), AR102676 (red), ARA102714T1 (green), ARA102714T2 (red), ARA4202V3T1 (blue), ARA4202V3T2 (red)
- Granite 4X4 3S BLX: AR102666, ARA102720T1 (orange), ARA102720T2 (red), ARA4302V3T1 (green), ARA4302V3T2 (red)
- Senton 4X4: AR102667 (red), AR102678 (blue), ARA102715T1 (red), ARA102715T2 (blue), ARA4203V3T1 (red), ARA4203V3T2 (blue)
- Senton 4X4 3S BLX: AR102668, ARA102721T1 (green), ARA102721T2 (orange), ARA4303V3T1 (blue), ARA4303V3T2 (red)
- Typhon 4X4: ARA102694, ARA4206V3
- Typhon 4X4 3S BLX: AR102696, ARA102722, ARA4306V3
FEATURES:
- Threaded shock bodies for easy, precise, and consistent adjustment of ride height and shock pre-load- Bleeder screws for easy shock maintenance
- Spring collars feature an o-ring to lock the collar in place to prevent unwanted movement
- CNC turned and machined 6061-T6 aluminum construction, anodized silver
YOU WILL RECEIVE:
- Two (2) rear shock bodies- Two (2) screw-on o-ring cap eliminates the plastic seal retainer
- Two (2) aluminum spring adjusters/collars
REQUIREMENTS:
- Silicone shock oil, assembly, bleeding, and installation per Arrma recommendations- Existing stock shock components
SPECIFICATIONS:
- Length (Overall): - Length (Threads):
- OD:
COMMENTS:
- Replaces Arrma AR330517 or ARA330756 rear shock bodies- For front shock bodies, see Hot Racing ATF155AF08
- For rebuild kit, see AFT155R
- Known to fit the following Arrma vehicle models numbers (may also fit vehicles released after this list was created):
- Gorgon 2WD ARA3230T1, ARA3230ST1, ARA3230SKT1
- Big Rock 4X4 3S BLX: AR102711, ARA102723, ARA4312V3
- Granite 4X4: AR102665 (green), AR102676 (red), ARA102714T1 (green), ARA102714T2 (red), ARA4202V3T1 (blue), ARA4202V3T2 (red)
- Granite 4X4 3S BLX: AR102666, ARA102720T1 (orange), ARA102720T2 (red), ARA4302V3T1 (green), ARA4302V3T2 (red)
- Senton 4X4: AR102667 (red), AR102678 (blue), ARA102715T1 (red), ARA102715T2 (blue), ARA4203V3T1 (red), ARA4203V3T2 (blue)
- Senton 4X4 3S BLX: AR102668, ARA102721T1 (green), ARA102721T2 (orange), ARA4303V3T1 (blue), ARA4303V3T2 (red)
- Typhon 4X4: ARA102694, ARA4206V3
- Typhon 4X4 3S BLX: AR102696, ARA102722, ARA4306V3
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles (13)
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.25" 10.13 cm × 10.13 cm × 0.64 cm |
| Part numbers | ATF155AR08 840353306998 083745293487 GRG155AR08 GRR155AR08 HRAATF155AR08 |
| Shipping weight | 1.20 ounces 34.11 grams 0.08 pounds |
