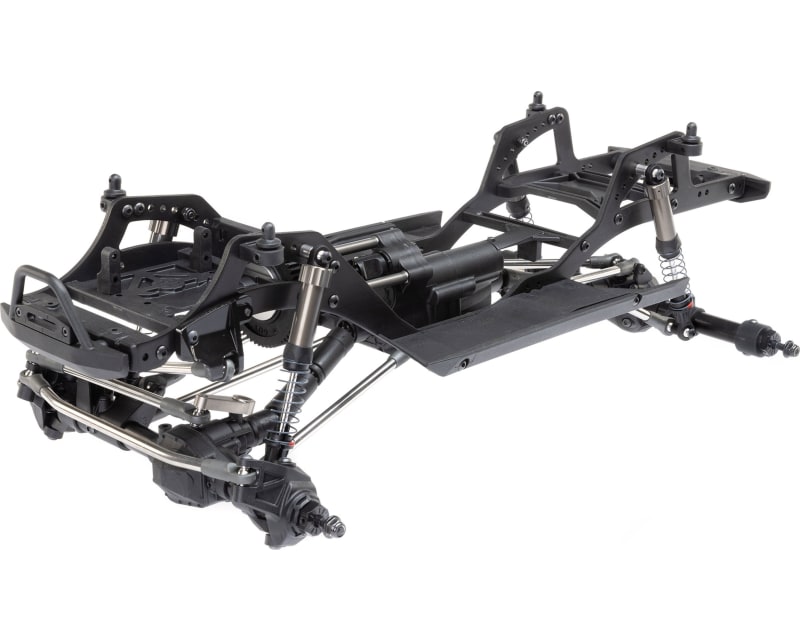

Scx10 Pro Comp Scaler 1:10th 4WD Kit

The easiest, most convenient way to build a scale crawler for competition, with numerous innovations never before offered in a single comp-ready kit.
Pro kit saves significant time and money compared to buying components separately.
Comp-ready chassis is lighter, lower, and more adjustable, optimizing performance for climbing, side hilling, and break over.
Multi-piece steel tube axles can accommodate a servo on the axle (AMS) or chassis-mounted (CMS).
Low and forward motor position provides superior weight distribution and improves balance.
Underdrive the rear axle via servo or manually lock the rear axle in 1:1 or underdrive.
New aluminum smooth body, oil-filled shocks provide higher clearance.
The Pro has already won and placed at multiple events with designer Wyatt Mellon at the wheel.
Approximate Assembly Time
5-7 Hours
Ball Bearings
Complete Vehicle
Battery
Sold Separately
Body
Not Included
Brakes
Integral with ESC
Charger
Sold Separately
Chassis
Aluminum Plate
Completion Level
Kit
Differential
Locked
Drivetrain
4WD
Final Drive Ratio
38.46:1, 57.50:1
Gear Pitch
32-Pitch
Ground Clearance
2.25" (57.1mm)
Internal Gear Ratio
10.26:1, 15.33:1
Motor Size
540/550 recommended
Pinion
13T
Power Type
Electric
Product Height
7" (178 mm)
Product Length
16.65" (423 mm)
Product Weight
3lbs (1.4kg) Without Components
Product Width
9.25" (235 mm)
Radio
Sold Separately
Receiver
Sold Separately
Scale
1/10
Servos
Sold Separately
Shock Type
2.9" - 3.8" (74-96mm) Aluminum Oil filled
Speed Control
Sold Separately
Steering Type
2WS
Suspension
3-Link/4-Link
Vehicle Type
Rock Crawler
Wheel Hex Size
12mm
Wheelbase
12.5" (318 mm)
