Description

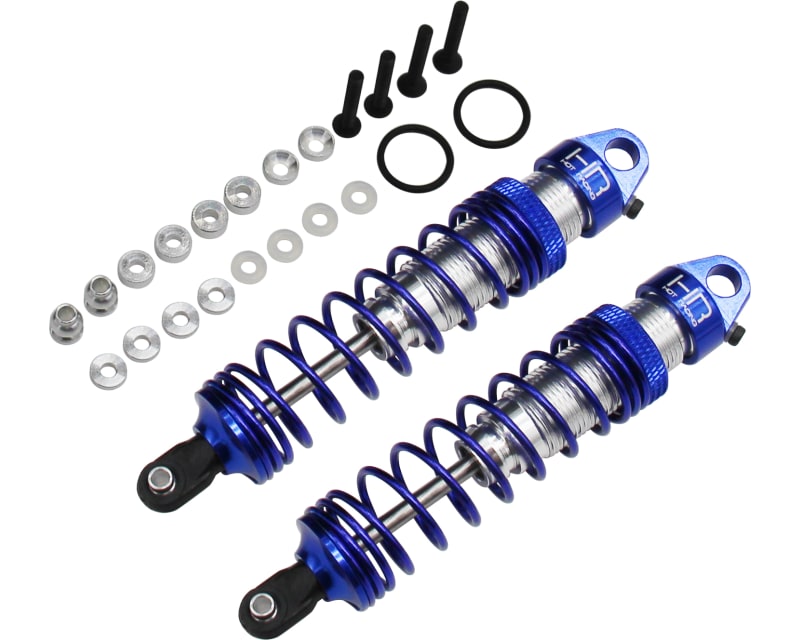

Hot Racing 100mm big bore threaded body aluminum shocks for many 1/10th scale off-road vehicles using 100mm shocks. Some applications include, but are not limited to: the Associated SC10; HPI Blitz; Kyosho Ultima SC; TRA Bandit rear, E-Maxx, Nitro Rustler/Slash/Sport/Stampede rear, Rustler rear, Slash 2WD rear, Slash 4x4 rear, Stampede 2WD rear, Stampede 4x4 rear, T-Maxx; and and other similar vehicles
- "Big Bore" threaded shock bodies
- CNC machined 11mm Delrin pistons
- 3.5mm stainless steel shock shafts
- Silver and blue anodized aluminum components
- Vented shock caps with bladder seals for consistent rebound dampening
- Threaded shock collars with o-ring to prevent unwanted movement
- Composite plastic lower shock ends with aluminum balls
- Fully assembled, just add shock oil and bleed
- Two (2) M3x20mm flat head cap screws
- Two (2) M3x18mm button head cap screws
- Two (2) 3mm countersunk washers
- Two (2) 5.9 hollow balls
- Four (4) 1.5mm thick spacers
- Four (4) 3mm thick spacers
- Best used with Team Associated shock Green Slime grease or shock o-ring grease when rebuilding lower seal
- Snap ring pliers when rebuilding lower seal
- Extended length: 100mm
- Compressed length: 70mm
- Overall length: 110mm
- Spring: ~5.8lb/in, 1.54mm wire, 13 turn dual rate, 19.3mm OD, 69.5mm long
- Can be used with optional Hot Racing springs: SLF63FS261 (progressive), SLF63MR268 (linear), SLF63RS286 (progressive)
- See Hot Racing TD8100X06 for an eight (8) pack of 100mm shocks
- See Hot Racing TD90X06 and TD90PC06 for 90mm shocks
- Accepts optional Hot Racing silicone shock boot RDP34201
- Replacement parts are Hot Racing: RTDS100X (shock shafts and pistons), RTD910BN (shock ends), RTD910RB (pistons and o-rings), RTD1010X (bladders and lower seals)
description revised by: JG, 8/8/23
FEATURES:
- CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers- "Big Bore" threaded shock bodies
- CNC machined 11mm Delrin pistons
- 3.5mm stainless steel shock shafts
- Silver and blue anodized aluminum components
- Vented shock caps with bladder seals for consistent rebound dampening
- Threaded shock collars with o-ring to prevent unwanted movement
- Composite plastic lower shock ends with aluminum balls
- Fully assembled, just add shock oil and bleed
YOU WILL RECEIVE:
- Two (2) assembled shocks- Two (2) M3x20mm flat head cap screws
- Two (2) M3x18mm button head cap screws
- Two (2) 3mm countersunk washers
- Two (2) 5.9 hollow balls
- Four (4) 1.5mm thick spacers
- Four (4) 3mm thick spacers
REQUIREMENTS:
- Silicone shock oil of modeler's choice and bleeding per the typical bladder shock bleeding procedure- Best used with Team Associated shock Green Slime grease or shock o-ring grease when rebuilding lower seal
- Snap ring pliers when rebuilding lower seal
SPECIFICATIONS:
- Replaces TRA Big Bore XX-Long Shocks: 2662, 3762, 3762A, 7462X- Extended length: 100mm
- Compressed length: 70mm
- Overall length: 110mm
- Spring: ~5.8lb/in, 1.54mm wire, 13 turn dual rate, 19.3mm OD, 69.5mm long
COMMENTS:
- Use spacers as need for installation- Can be used with optional Hot Racing springs: SLF63FS261 (progressive), SLF63MR268 (linear), SLF63RS286 (progressive)
- See Hot Racing TD8100X06 for an eight (8) pack of 100mm shocks
- See Hot Racing TD90X06 and TD90PC06 for 90mm shocks
- Accepts optional Hot Racing silicone shock boot RDP34201
- Replacement parts are Hot Racing: RTDS100X (shock shafts and pistons), RTD910BN (shock ends), RTD910RB (pistons and o-rings), RTD1010X (bladders and lower seals)
description revised by: JG, 8/8/23
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 4.00" × 3.75" × 1.00" 10.16 cm × 9.53 cm × 2.54 cm |
| Part numbers | TD100X06 840353304239 083745640250 HRATD100X06 |
| Shipping weight | 2.51 ounces 71.25 grams 0.16 pounds |
