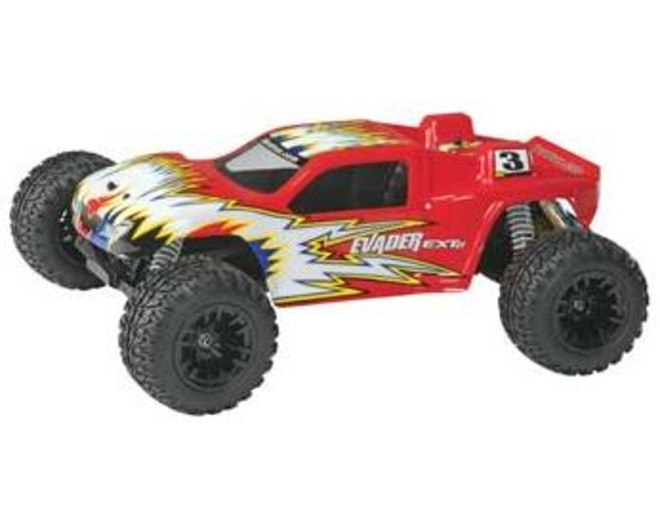

1:10 Evader Ext2 RTR

Duratrax brand 1/10 scale electric powered, radio controlled, Ready To Run
DuraTrax Evader EXT2 Off-Road Stadium Truck.
**Additional Technical Info Will Be Added When It Becomes Available. **

Chassis: Composite tub
Drive: Rear wheel shaft type
Ball Bearings: Full set, 14 total
Motor: DuraTrax Photon Speed 2
Radio: 2-channel Tactic pistol grip 27MHz AM, with steering and
throttle trim and reverse, (transmitter does not have charge jack)
TS200 steering servo
Electronic Speed Control: DuraTrax Sprint with reverse, Evader DT
ESC mount
Body: Trimmed and painted stadium truck
Shocks: Oil-filled, plastic body
Gearbox: Closed rear
Differential: Gear type
Transmission: Single speed with metal idler gear
Slipper Clutch: Adjustable, matches power delivery to the track
surface, for better traction and speed. Protected from debris by
a cover, and has a removeable cap for easy access for adjustments.
Tires: All terrain, treaded 3.8 (94.5mm) diameter, 2 (51mm) wide
Wheels: Nylon construction, black in color, six split spokes, 2.2
(56mm) diameter, 2 (51mm) wide
Battery Strap: newly designed to accept a 2S LiPo battery
Spur Gear: Nylon 88 tooth, 48 pitch
Pinion Gear: Steel 18 tooth, 48 pitch
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Suspension: Adjustable, includes steel turnbuckles that are
factory-set, but adjustable to various driving conditions
Steering: Bell-crank type with servo saver
Warranty Period: 90 days

DuraTrax Evader EXT2 assembled Stadium Truck with motor, radio, ESC,
full ball bearings, decal sheet, painted body and manual

AA Batteries: 8 for radio transmitter
Battery: 6-or 7-cell stick pack with standard connector (if using a
7-cell, remove foam battery spacer block under the ESC)
OR 2S LiPo pack (Low Voltage Cutoff, NOVP5470 required if using
LiPos)
Charger: AC/DC Timed or Peak for 6-cell battery
Misc. Items: Track equipment

Vehicle-
length: 16.1 (409mm)
width: 12.9 (327mm)
height: 6.6 (168mm)
Weight: 3.6lb (1.63kg)
Wheelbase: 11.6 (294mm)
Front Tread: 11.5 (292mm)
Rear Tread: 11 (279mm) wheels on-center side-to-side
Front Track: 12.4 (314mm)
Rear Track: 12.8 (325mm) wheels at outer edges
Ground Clearance: 1.4 (36mm)
Body-
length: 15.3 (390mm)
width: 6 (152mm) at front wheels, narrowest point
width: 6.7 (170mm) at rear wheels, widest point
height: 4 (103mm)

The DuraTrax Evader EXT is available with the following radio
channels and body colors;
A1 Black, DTXD32A1 A3 Red, DTXD32A3
A2 Blue, DTXD32A2 A4 Yellow, DTXD32A4
For replacement ball bearings use:
Qty. Size Location Qty. Bearing Set
4 5x10mm Rear Hubs 2 DTXC1535
4 3/16x3/8 Front Hubs 2 DTXC1423
2 5x10mm Top Shaft 1 DTXC1535
2 5x11mm Idler Gear 1 DTXC1547
2 10x15mm Diff Gear 1 DTXC1595
jxs 08/09/10
