4.5 High Voltage brushless Motor

Parts lists

Log in to add this part to a parts list to start planning your next project!

Description

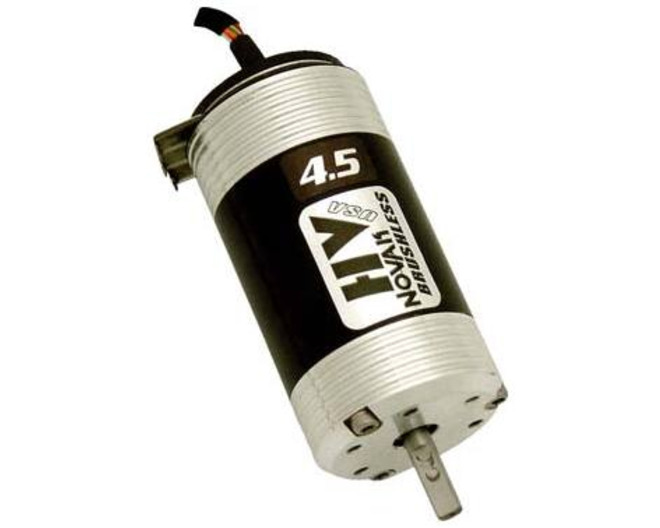

This is the Novak H.V. 4.5 High Voltage Brushless Motor w/5mm Output Shaft.

FEATURES:

Specifically designed for R/C vehicles One H.V 4.5 replaces the two brushed motors used in the TRA E- Maxx, E-Revo, HPI Savage and Kyosho Twin Force trucks Handles input voltage up to 14 cells (1.2V/cell) Nickel plated sintered neodymium rotor improves acceleration, speed and brakes, is more durable and resilient to heat Sensor based design for continious synchronization with ESC, excellent starting torque, low speed driveability, consistent braking and increased torque handling Completely enclosed and maintenence free Aluminum ribbed end bells for maximum cooling Full ball bearings and oversized front bearing for smooth low friction operation and increased torque handling

YOU WILL RECEIVE:

Novak H.V. 4.5 High Voltage Brushless Motor with solder tabs and connector

REQUIREMENTS:

Electronic Speed Control for Brushless motors

SPECIFICATIONS:

Number of Turns: 4.5 Design: Sensor-based Input Voltage: up to 14 cells (1.2V/cell) Watts: 890 KV (unloaded) 5,000 RPM/Volt Motor Size: 2.84" (72.1mm) length; 1.41" (35.8mm) diameter Shaft Diameter: 5mm (compatible with Novak Mod 1 (5100-5110) and 32p (5152-5157) pinion gears with 5mm bore Motor Weight: 8.36 oz. (295 grams) Magnet: Nickel-plated sintered high-strength neodymium Performance: Capable of speeds between 40-45 mph jxs 9/25/06 ir/jxs &

Manufacturer information

Novak

17032 Armstrong Avenue

Irvine, CA 92614

https://www.teamnovak.com/

All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers. Novak (not Hobby Etc., Inc.) guarantees this to be free from defects in materials and workmanship for a period of 120 days from the date of purchase.

Compatible vehicles

E-Maxx

E-Maxx 3905

E-Revo 5603 5605 5608

Additional details

Package dimensions

5.25" × 4.00" × 1.75"

13.34 cm × 10.16 cm × 4.45 cm

Shipping weight

9.60 ounces

272.17 grams

0.60 pounds
