Description

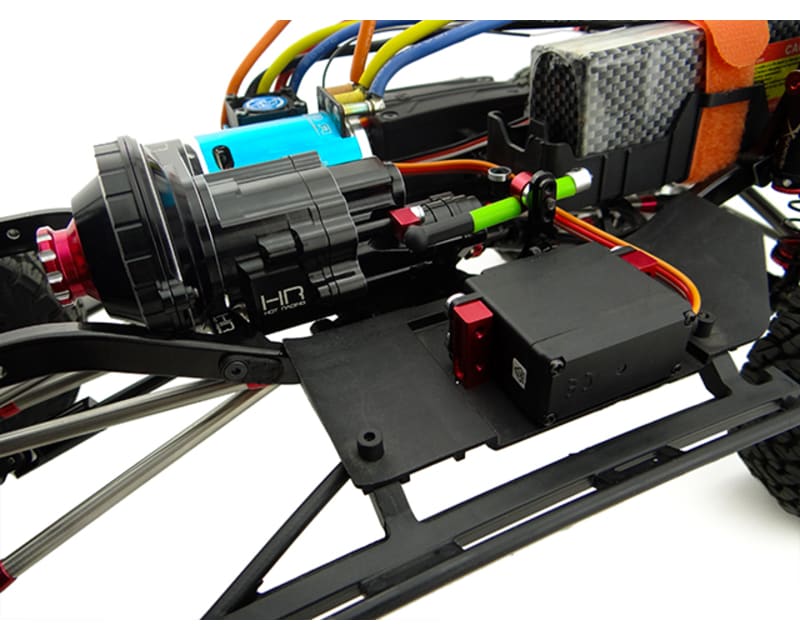

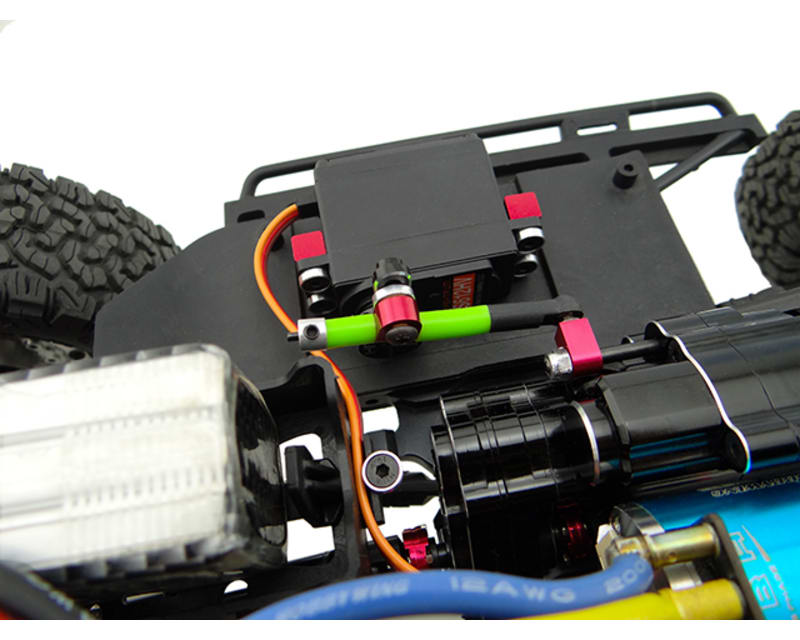

This Hot Racing 2-speed transmission conversion kit for the Axial SCX10 II allows the best of both worlds; a super low gear for crawling and ultimate torque and a high gear for top speeds. With the addition of a servo (purchased separately), the transmission can be shifted from the remote for supreme convenience and vehicle performance. - Two speed remote shifting with servo (purchased separately)
- 1st speed 2:1 crawling gear
- 2nd speed 1.1:1 speed gear
- Hardened CNC machined steel gears and shift dog
- CNC machined aluminum servo mounts
- Sealed ball bearings
- Direct fit compatibility with SCX10 II equipped with either Axial 2-speed transmission case or Hot Racing SCXT3801 2-speed aluminum transmission case
- One (1) 28T gear with bearings
- One (1) 26T gear
- One (1) 18T gear
- One (1) sliding shift dog
- One (1) shift fork
- Servo mounts
- Hardware
- 1st gear ratio: 2:1 (18T to 36T)
- 2nd gear ratio: 1.1:1 (26T to 28T)
- This is not an automatic transmission and the conversion requires a shift servo (standard 1/10 size), servo arm, and extra radio channel
- SCX10 II equipped with either Axial 2-speed transmission case or Hot Racing SCXT3801 2-speed aluminum transmission case
- Light application of gear lube
description revised by: SN August 9, 2017
FEATURES:
- 1st speed 2:1 crawling gear
- 2nd speed 1.1:1 speed gear
- Hardened CNC machined steel gears and shift dog
- CNC machined aluminum servo mounts
- Sealed ball bearings
- Direct fit compatibility with SCX10 II equipped with either Axial 2-speed transmission case or Hot Racing SCXT3801 2-speed aluminum transmission case

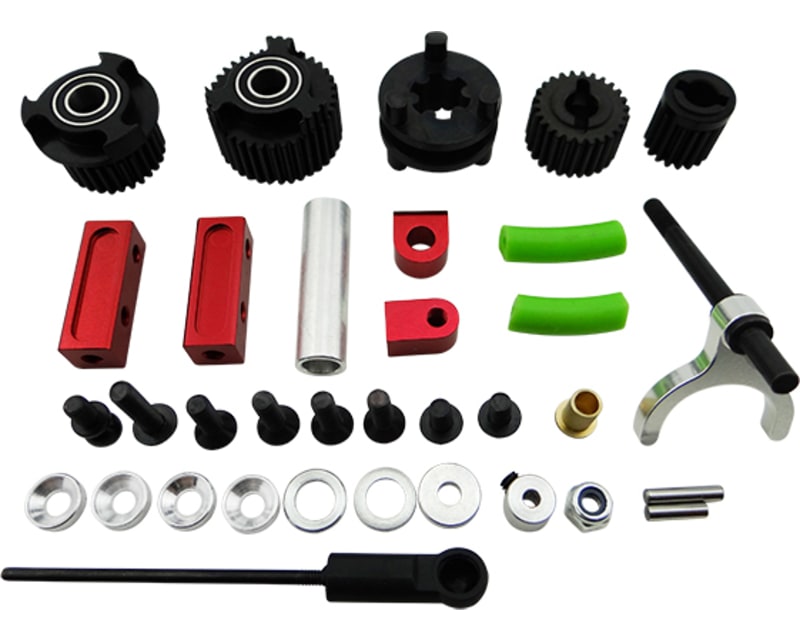

YOU WILL RECEIVE:
- One (1) 36T gear with bearings- One (1) 28T gear with bearings
- One (1) 26T gear
- One (1) 18T gear
- One (1) sliding shift dog
- One (1) shift fork
- Servo mounts
- Hardware
SPECIFICATIONS:
- 2nd gear ratio: 1.1:1 (26T to 28T)
REQUIREMENTS:
- SCX10 II equipped with either Axial 2-speed transmission case or Hot Racing SCXT3801 2-speed aluminum transmission case
- Light application of gear lube
description revised by: SN August 9, 2017
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | China |
| Package dimensions | 4.00" × 3.00" × 0.75" 10.16 cm × 7.62 cm × 1.91 cm |
| Part numbers | 083745995817 SCXT1000TP 083745236736 840353323155 HRASCXT1000TP |
| Shipping weight | 2.77 ounces 78.53 grams 0.17 pounds |
