Talon 90- Amp 25v Bl Esc W/20amp Bec 010-0097-00

Made by Castle Creations · CSE010-0097-00

Sale

-31%

$109.95

List price: $159.51

One left

Parts lists

Description

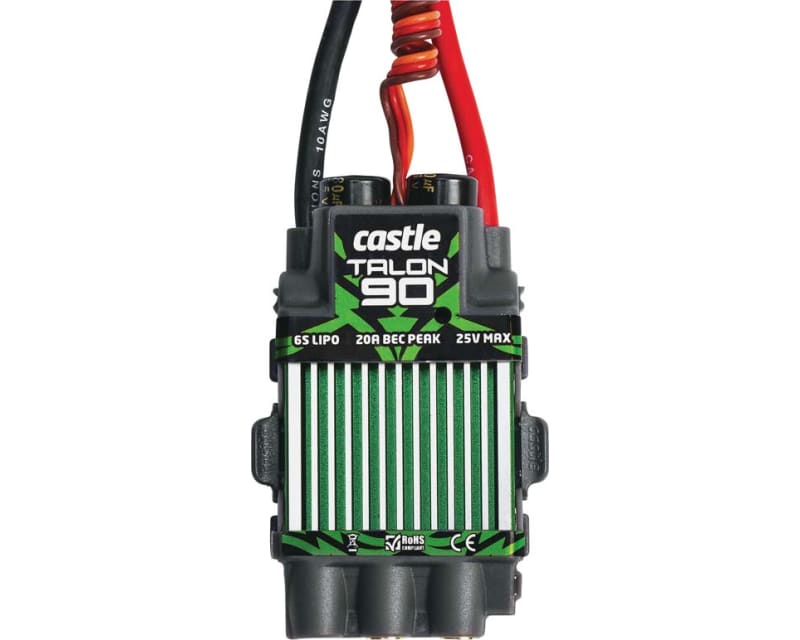

This is the Castle Creations Talon 90 25.2V 90A Electronic Speed Control.

FEATURES:

Ideal for extreme 500 and 550 class helis and sport (6S) 600 setups,
also fixed wing aerobats up to 10 lbs (4.5 kg) and scale
ships up to 20 lbs (9.07 kg)
BEC offers 20 amps peak power and 9 amps of continuous power
Castle Link compatible, order CSEM9999
One year limited warranty through Castle Creations beginning at date
of purchase. Warranty does not cover abuse, neglect, or damage due
to incorrect wiring, over voltage or overloading

YOU WILL RECEIVE:

Talon 90 25.2V 90A ESC with 10AWG Battery Wires, Receiver Connector,
three 5.5mm Male Bullet Motor Connectors, and Instructions

REQUIREMENTS:

Connector to match selected battery

SPECIFICATIONS:

Input Voltage: 3-6S LiPo
Max Continuous Amperage at Full Throttle: 90A (rating determined with
5MPH airflow across the ESC)
BEC Voltage: User selectable 6 or 8V
BEC Output: 20 amp peak, 9 amp continuous

DIMENSIONS:

1.7 x 3.14 x 0.7" (43 x 80 x 18mm)
mounting bracket adds 2mm depth and 8mm width
Weight: 3.0oz (84.5g) with 5.9" (150mm) power wires and no battery
connectors
jxs 01/14/13
ir/jxs
&

Manufacturer information

Castle Creations

402 E. Pendleton Ave.

Wellsville, KS 66092

https://www.castlecreations.com/

Your Mamba is warranted for one (1) year from date of purchase to be free from manufacturing and component defects. This warranty does not cover abuse, neglect, or damage due to incorrect wiring, over voltage, or overloading. If you have any questions, comments, or wish to return your Mamba for warranty or non-warranty repair/replacement contact Castle Creations at: Castle Creations 402 E. Pendleton Ave. Wellsville, KS 66092 Tel: (785) 883- 4519 Email: info@castlecreations.com Fax: (785) 883- 4571 Website: http://www.castlecreations.com All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.

Compatible vehicles

RC airplane - brushless

Additional details

Country of origin	China
Package dimensions	7.25" × 4.13" × 1.63" 18.42 cm × 10.49 cm × 4.14 cm
Part numbers	CSEM9700 0819326010316 010-0097-00 CSE010009700 CSE010-0097-00 819326010316
Shipping weight	6.40 ounces 181.45 grams 0.40 pounds
