Heavy Duty CNC Aluminum Outer Diff Case Black Revo
Made by Hot Racing · RVO11MX01
$48.88
Log in to add this part to a parts list to start planning your next project!
Description
Hot Racing aluminum outer differential housing for the TRA E-Revo, Revo 3.3, and Slayer Pro 4X4.
- CNC machined billet aluminum
- Anodized Black
- Direct fit hop-up requires no modifications
- One (1) Steel bearing crush sleeve
- Four (4) M3x10 socket head cap screws
- Two (2) 11.2x10.2x0.2mm shims
- Two (2) 9.4x8x0.1mm shims
- Two (2) 6 x 13 x 5 Bearings
- Shimming may be required for proper alignment and fitment
- Removable thread lock for screws threading into metal
- 2.5mm hex wrench for housing screws
- width: 35mm
- height: 43.5mm
- Replaces TRA plastic 5380 differential housing
description revised by: PP January 7, 2017
FEATURES:
- Two Over size Heavy Duty bearings - CNC machined billet aluminum
- Anodized Black
- Direct fit hop-up requires no modifications

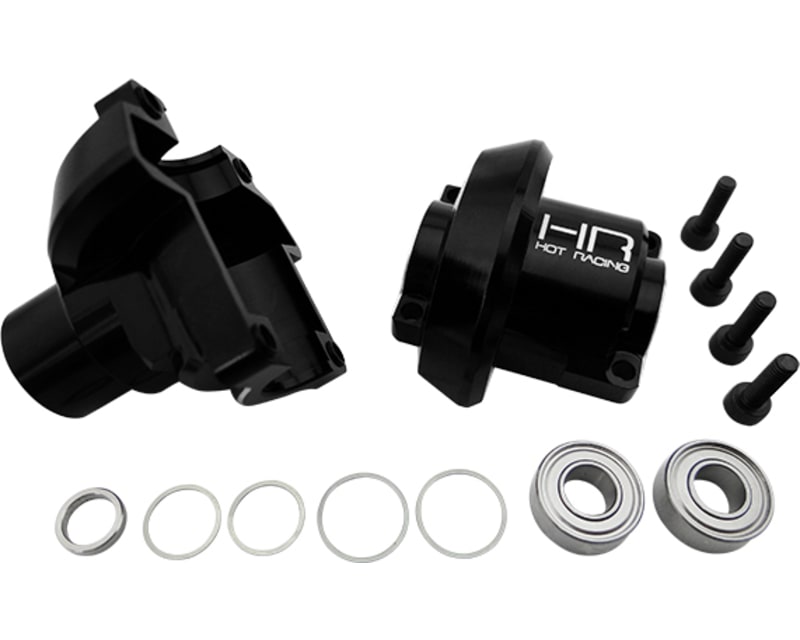

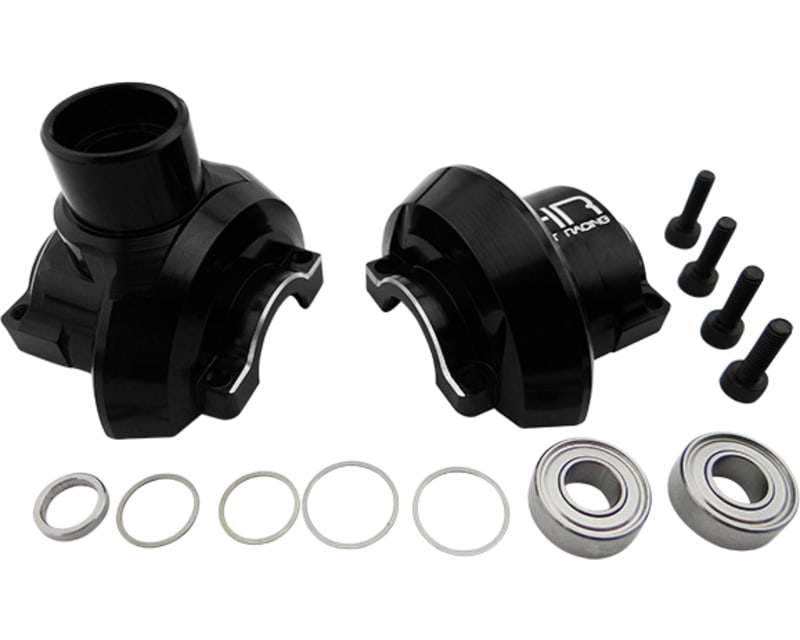

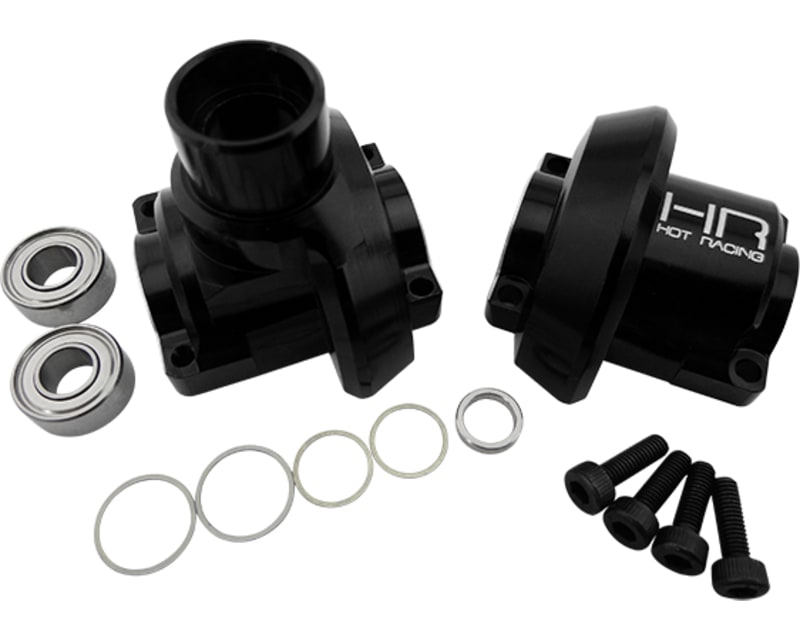

YOU WILL RECEIVE:
- One (1) differential housing (2 pieces)- One (1) Steel bearing crush sleeve
- Four (4) M3x10 socket head cap screws
- Two (2) 11.2x10.2x0.2mm shims
- Two (2) 9.4x8x0.1mm shims
- Two (2) 6 x 13 x 5 Bearings
REQUIREMENTS:
- Installation- Shimming may be required for proper alignment and fitment
- Removable thread lock for screws threading into metal
- 2.5mm hex wrench for housing screws
SPECIFICATIONS:
- length: 52.7mm- width: 35mm
- height: 43.5mm
COMMENTS:
- This is ultimate choice for use with SRVO1337T Steel Helical Spiral Differential Ring/Pinion Gear Set - Replaces TRA plastic 5380 differential housing
description revised by: PP January 7, 2017
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 4.00" × 3.50" × 1.00" 10.16 cm × 8.89 cm × 2.54 cm |
| Part numbers | RVO11MX01 083745992113 840353323032 HRARVO11MX01 |
| Shipping weight | 1.50 ounces 42.46 grams 0.09 pounds |
