32-Bit Multipurpose WP Steel Gear Servo D840WP

Parts lists

Log in to add this part to a parts list to start planning your next project!

Description

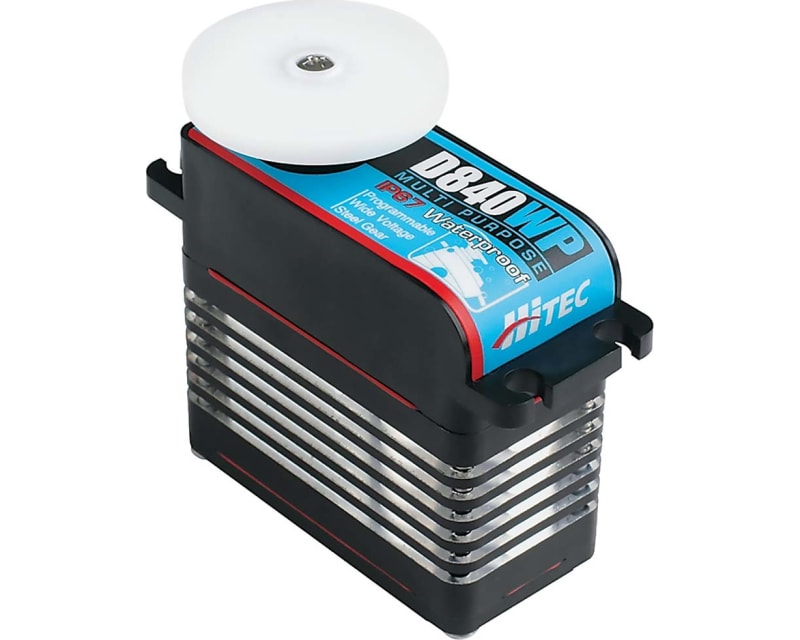

This is the Hitec D840WP Programmable Mega Scale Waterproof Servo.

FEATURES:

Ideal for airplane, giant scale car, boat, UAV and robotic applications Center heat sink for efficient motor cooling Operates on 3.5-8.4V Programmable high response digital amplifier* Durable steel gears with dual ball bearings Water and dust resistance

YOU WILL RECEIVE:

D840WP Servo with 1.6" (39.9mm) Round Servo Horn, 1.8" (46mm) Single Arm, 2.2" (55mm) Double Arm Aluminum Horn. 2.4" (61mm) 4-Point Horn Four each, Grommets, Eyelets and Screws 3mm Servo Horn Screw

SPECIFICATIONS:

DIMENSIONS:

2.59 x 1.26 x 2.44" (66 x 32 x 62mm) Weight: 8.0oz (227g) Output Spline: 25 tooth 4.8V 6.0V 7.4V Speed: 0.17 sec/60° 0.14 sec/60° 0.11 sec/60° Torque: 264oz-in (19kg-cm) 333oz-in (24kg-cm) 417oz-in (30kg-cm)

COMMENTS:

*Programmble features require the Hitec DPC-11 Universal Programming Interface, HRCP4429 jxs 03/18/16 ir/jxs &

Manufacturer information

Hitec/RCD

12115 PAINE STREET

POWAY, CA 92064

https://www.hitecrcd.com/

All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should t here be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.

Additional details

Country of origin	China
Package dimensions	4.00" × 3.00" × 1.88" 10.16 cm × 7.62 cm × 4.78 cm
Part numbers	0669962368407 HRC36840 HRCM6840 669962368407
Shipping weight	9.44 ounces 267.64 grams 0.59 pounds
