3pv R304sb 3pv W/R304sb Rx Telemetry Tfhss

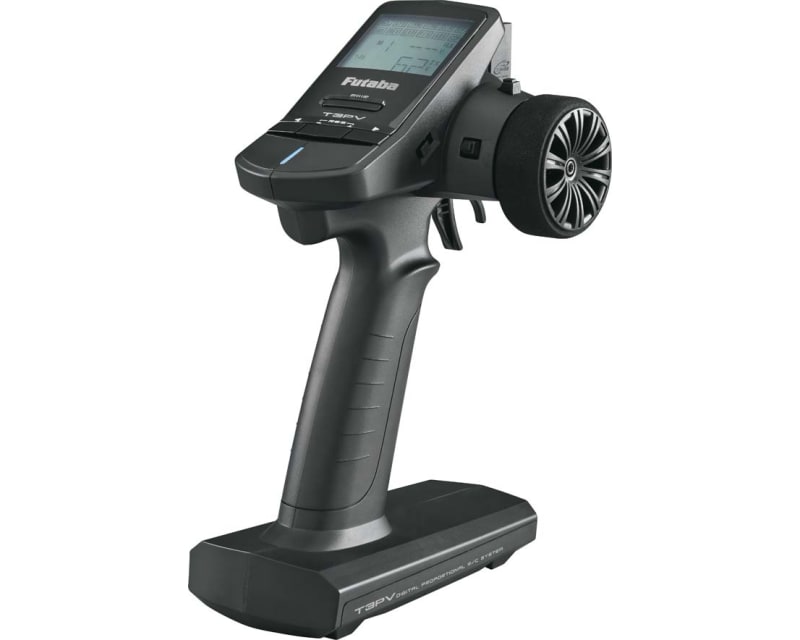

This is the Futaba 3PV 3-Channel Telemetry Radio System
with the 4-Channel R304SB T-FHSS Telemetry Receiver.
**Additional Technical Info Will Be Added When It Becomes Available. **
FHSS/S-FHSS/T-FHSS protocols
Large, easy to read programming screen
Four wheel steering and brake mixing
Model data copy
Anti-lock brake system (ABS) function
R304SB telemetry receiver
Link Mode
DT3 selection
SW1
Throttle fail safe
Steering and throttle trim
Channel 4 trim
Sub trim
Steering dual rate adjustment
Steering and throttle end point adjustment
Channel 3 and 4 end point adjustment, and servo reversing
Steering and throttle exponential
Auto power off after ten minutes
Futaba 3PV 3-CH Transmitter, 4-CH R304SB T-FHSS Telemetry Receiver
AA Batteries: Four for transmitter (may also be powered by the
Futaba HT5F1800B 6V NiMh pack FUTM1482, or the Hobbico LiFe 6.6V
1900mAh pack, HCAM6521
Transmitter;
R304SB Receiver; FUTL7680
Power Requirement: 4.8 - 7.4V battery (dry cells cannot be used)
Receiving Frequency: 2.4GHz
System: T-FHSS (auto detection) with SBUS2 port
1.38 x 0.91 x 0.33" (35.1 x 23.2 x 8.5mm)
Weight: 0.23oz (6.6g)
Antenna length: 7.5" (190.5mm)
jxs 04/28/16
&
