Description

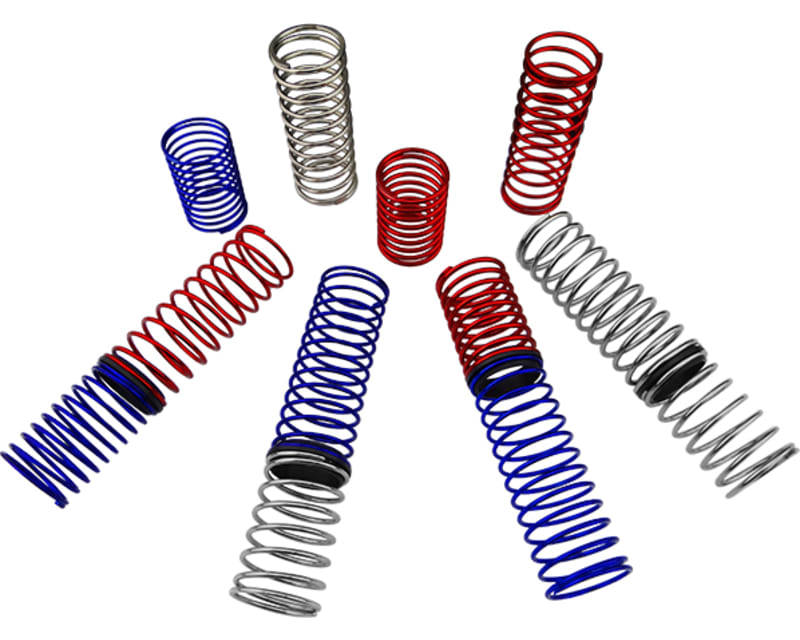

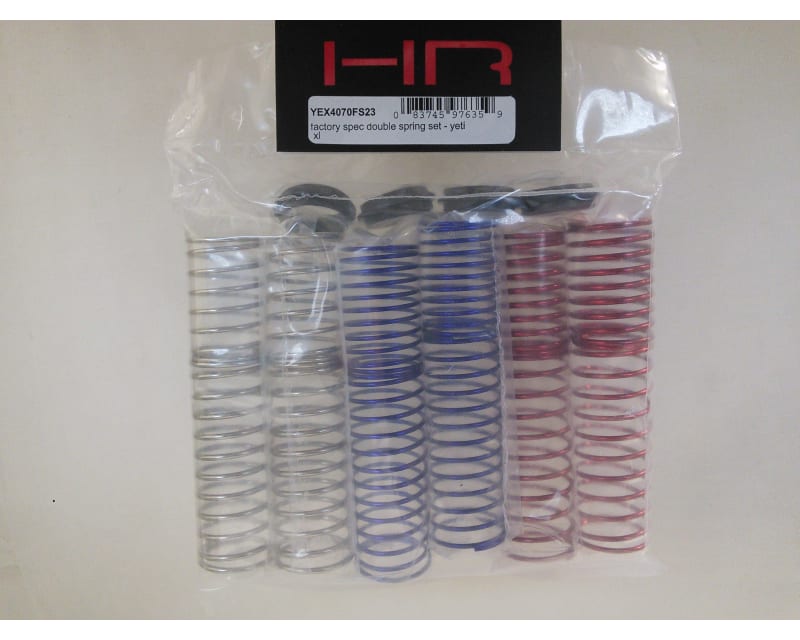

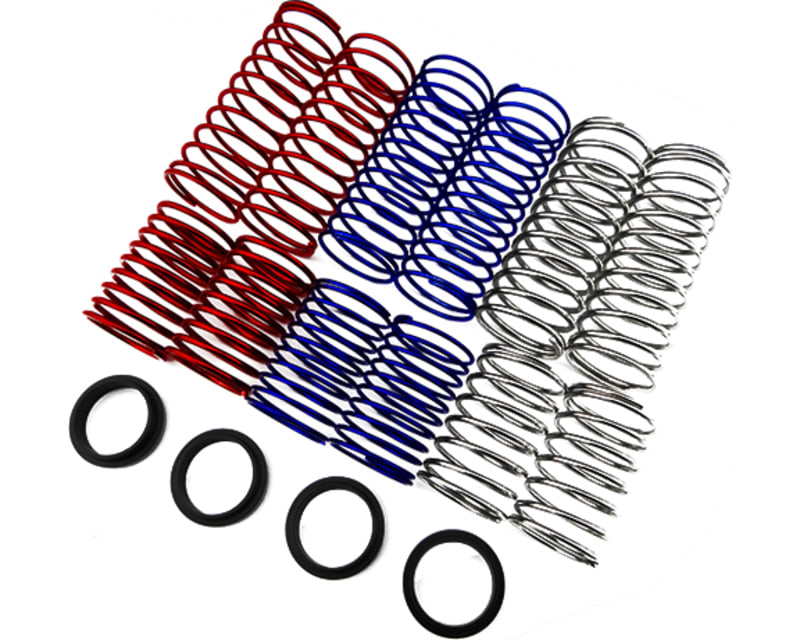

Hot Racing optional tuning spring set for dual spring coilover shocks on the 1/8 Axial Yeti XL
- Double spring system provides a soft response at the beginning of the stroke for smaller bumps (tender spring) and an increased stiffness at larger
-compression to handle larger jumps (main spring). Together, the tender and main springs allow the suspension to keep contact with the surface during terrain irregularities and provide tuning options to reduce body roll during cornering and squat and dive during acceleration and braking.
- Steel construction, with three colors indicating stiffness (see specifications)
- Kit allows 9 combinations of springs
- Two (2) soft tender springs (blue)
- Two (2) medium tender springs (chrome)
- Two (2) hard tender springs (red)
- Two (2) soft main springs (blue)
- Two (2) medium main springs red)
- Two (2) hard main springs (chrome)
- Four (4) machined Delrin spring collars
- Installation
- Tender Springs:
- 40mm long, 23mm ID
- Blue: 10 coil, 1.4mm wire, 1.7 lb/in
- Chrome: 8 coil, 1.7mm wire, 5.2 lb/in
- Red tender springs, 11 coil, 2.0mm wire, 7.6 lb/in
- Main springs:
- 70mm long, 23mm ID
- Blue: 14 coil, 1.5mm wire, 1.7 lb/in
- Red: 12 coil, 1.7mm wire, 3.3 lb/in
- Chrome: 12 coil, 2.0mm wire, 5.6 lb/in
description revised by: SN June 29, 2016
FEATURES:
- Double spring system provides a soft response at the beginning of the stroke for smaller bumps (tender spring) and an increased stiffness at larger
-compression to handle larger jumps (main spring). Together, the tender and main springs allow the suspension to keep contact with the surface during terrain irregularities and provide tuning options to reduce body roll during cornering and squat and dive during acceleration and braking.
- Steel construction, with three colors indicating stiffness (see specifications)
- Kit allows 9 combinations of springs
YOU WILL RECEIVE:
- Two (2) soft tender springs (blue)
- Two (2) medium tender springs (chrome)
- Two (2) hard tender springs (red)
- Two (2) soft main springs (blue)
- Two (2) medium main springs red)
- Two (2) hard main springs (chrome)
- Four (4) machined Delrin spring collars
REQUIREMENTS:
- Installation
SPECIFICATIONS:
- Tender Springs:
- 40mm long, 23mm ID
- Blue: 10 coil, 1.4mm wire, 1.7 lb/in
- Chrome: 8 coil, 1.7mm wire, 5.2 lb/in
- Red tender springs, 11 coil, 2.0mm wire, 7.6 lb/in
- Main springs:
- 70mm long, 23mm ID
- Blue: 14 coil, 1.5mm wire, 1.7 lb/in
- Red: 12 coil, 1.7mm wire, 3.3 lb/in
- Chrome: 12 coil, 2.0mm wire, 5.6 lb/in
description revised by: SN June 29, 2016
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | China |
| Package dimensions | 9.50" × 4.00" × 2.50" 24.13 cm × 10.16 cm × 6.35 cm |
| Part numbers | YEX4070FS23 083745976359 840353322660 HRAYEX4070FS23 |
| Shipping weight | 7.20 ounces 204.12 grams 0.45 pounds |
