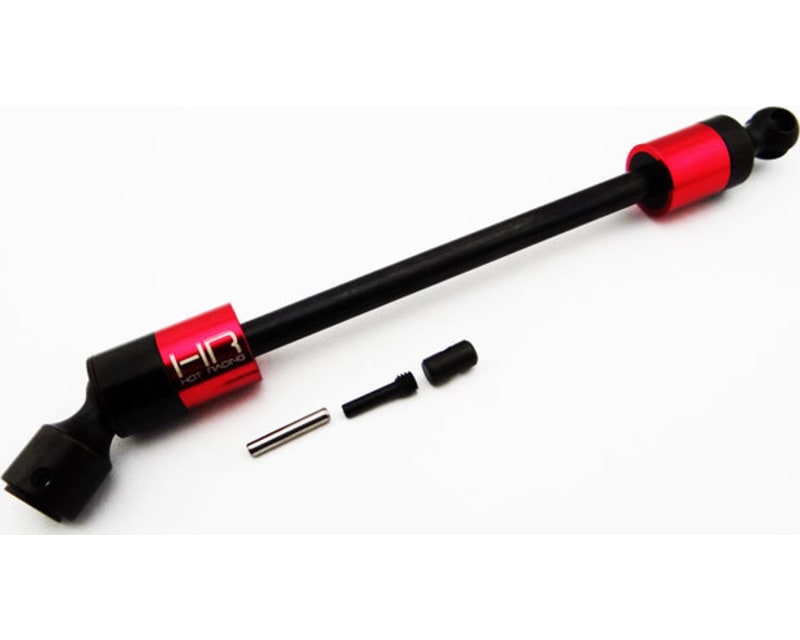

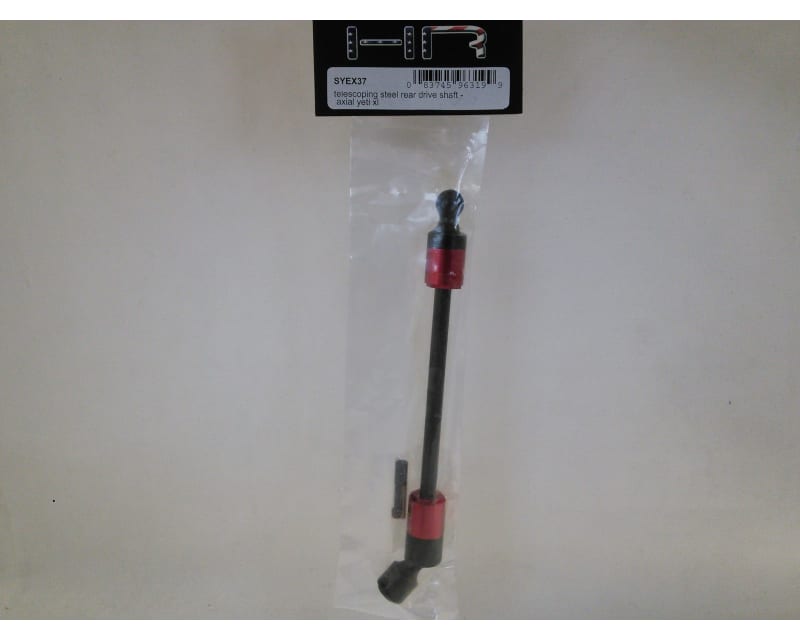

Telescoping Steel Rear Drive Shaft - Axial Yeti XL
Made by Hot Racing · SYEX37
$28.88
This part is discontinued and we no longer carry it.
Description
Hot Racing hard steel telescoping rear drive shaft for the 1/8th scale Axial Yeti XL kit and RTR vehicles
- Replaces factory plastic rear drive shaft
- Screw-on sleeves capture telescoping dogbone pins, sleeves are red anodized aluminum
- Steel is black oxide finished for corrosion protection
- One (1) CV joint coupler
- One (1) CV joint cross pin
- One (1) steel screw pin
- Approximate overall (end-to-end) extended length: 183mm (7.2 inch)
- Approximate travel: 20mm (0.8 inch)
- Outside diameter: 15mm (0.59 inch)
- Slider pin: 12.8x2.5mm
- Recommended to maintain telescoping assembly and CV joints with grease
- Recommended to use a removable-type locking adhesive on screws threading into metal
- Replacement parts include, Hot Racing: RYEX37H (CV rebuild kit), RYEX37U (transmission side drive hub)
description revised by: SN January 29, 2018
FEATURES:
- Heavy duty CNC machined hardened carbon steel construction- Replaces factory plastic rear drive shaft
- Screw-on sleeves capture telescoping dogbone pins, sleeves are red anodized aluminum
- Steel is black oxide finished for corrosion protection
YOU WILL RECEIVE:
- One (1) assembled drive shaft- One (1) CV joint coupler
- One (1) CV joint cross pin
- One (1) steel screw pin
SPECIFICATIONS:
- Approximate overall (end-to-end) compressed length: 163mm (6.4 inch)- Approximate overall (end-to-end) extended length: 183mm (7.2 inch)
- Approximate travel: 20mm (0.8 inch)
- Outside diameter: 15mm (0.59 inch)
- Slider pin: 12.8x2.5mm
REQUIREMENTS:
- Removal and installation of drive shaft per Axial manual. Requires temporary removal of rear pinion gear. - Recommended to maintain telescoping assembly and CV joints with grease
- Recommended to use a removable-type locking adhesive on screws threading into metal
COMMENTS:
- Replaces factory plastic Axial drive shaft AX31034 and associated coupler(s)- Replacement parts include, Hot Racing: RYEX37H (CV rebuild kit), RYEX37U (transmission side drive hub)
description revised by: SN January 29, 2018
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible Vehicles (1)
Additional Details
| Country of origin | China |
| Package dimensions | 3.75" × 3.00" × 0.70" 9.53 cm × 7.62 cm × 1.78 cm |
| Part numbers | SYEX37 083745963199 HRASYEX37 |
| Shipping weight | 3.17 ounces 89.81 grams 0.20 pounds |
