discontinued Rear Axle Assembly Aluminum & Composite (Orange) -
Made by Hot Racing · SCX12GR03
$78.88
This part is discontinued and we no longer carry it.
Description

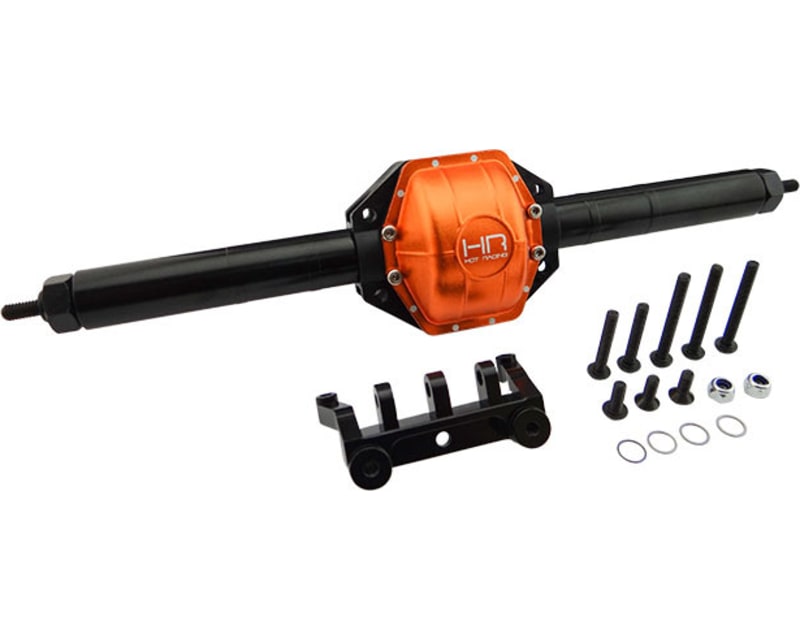

Hot Racing optional upgrade complete rear axle assembly with hardened steel gears, locked center differential, and 4-link axle truss for the 1/10th scale Axial SCX10 straight rear axle vehicles. Reference the axle width below to confirm fitment.

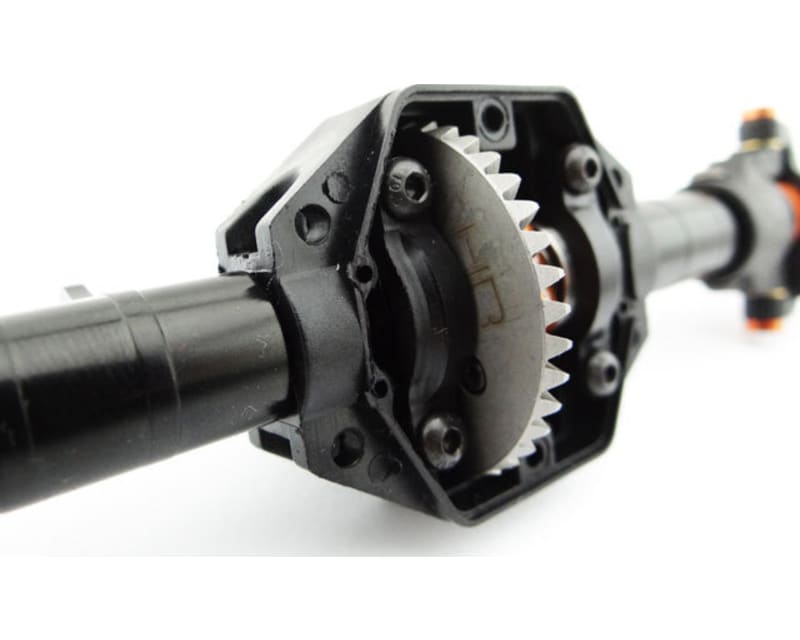

- Heavy duty composite plastic center housing (i. e. third member, 3rd member, center section, pumpkin)
- CNC machined billet aluminum axle tubes
- Full ball bearing drivetrain support
- Hardened steel, helical cut ring and pinion gears. 38T ring, 13T pinion
- Aluminum locked/spool differential for maximized traction
- Integrated CNC machined lower link mounts
- Hardened steel axle shafts
- Fully assembled and ready to install
- 12mm steel hexes
- CNC milled 4-link suspension truss
- Aluminum differential cover, finished in orange, allows for easy access to differential
- Aluminum is black anodized for durability, corrosion resistance, and great looks
- One (1) aluminum truss for 4-link suspension
- Two (2) 12mm hexes
- Hardware kit
- Approximate width from outside of hex to outside of hex: 191.7mm (7.55 inch)
- Approximate lateral distance between lower link pivots: 91.1mm (3.59 inch)
- Vehicle width should be approximately 9 inch
- Recommended to maintain ring and pinion with a quality general purpose gear lube/grease
- Recommended to use a removable-type locking adhesive on screws threading into metal
- Color variants available, see Hot Racing: SCX12GR01 (black), SCX12GR02 (red), SCX12GR03 (orange)
- For matching front axle, see Hot Racing SCX12GF03 (orange)
- For aluminum center section variants, see Hot Racing: SCX12XR03 (orange)
- Replacement/Spare hex hubs are SSCX288CH
- For aluminum center pivot three link suspension truss order Hot Racing SCX12M01
description revised by: SN April 12, 2016
FEATURES:
- CNC machined billet aluminum axle tubes
- Full ball bearing drivetrain support
- Hardened steel, helical cut ring and pinion gears. 38T ring, 13T pinion
- Aluminum locked/spool differential for maximized traction
- Integrated CNC machined lower link mounts
- Hardened steel axle shafts
- Fully assembled and ready to install
- 12mm steel hexes
- CNC milled 4-link suspension truss
- Aluminum differential cover, finished in orange, allows for easy access to differential
- Aluminum is black anodized for durability, corrosion resistance, and great looks

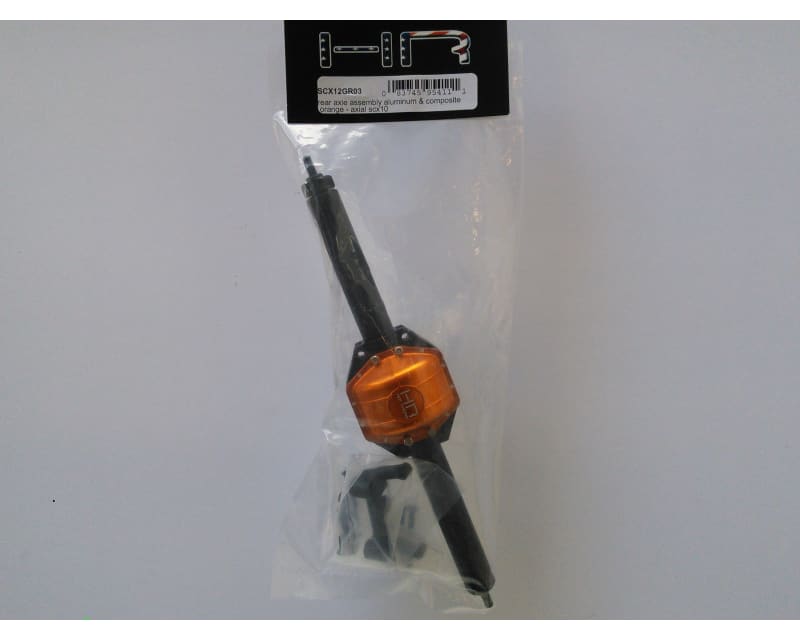

YOU WILL RECEIVE:
- One (1) fully assembled axle assembly- One (1) aluminum truss for 4-link suspension
- Two (2) 12mm hexes
- Hardware kit
SPECIFICATIONS:
- Approximate lateral distance between lower link pivots: 91.1mm (3.59 inch)
- Vehicle width should be approximately 9 inch
REQUIREMENTS:
- Recommended to use a removable-type locking adhesive on screws threading into metal
COMMENTS:
- For matching front axle, see Hot Racing SCX12GF03 (orange)
- For aluminum center section variants, see Hot Racing: SCX12XR03 (orange)
- Replacement/Spare hex hubs are SSCX288CH
- For aluminum center pivot three link suspension truss order Hot Racing SCX12M01
description revised by: SN April 12, 2016
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible Vehicles (1)
Additional Details
| Country of origin | China |
| Package dimensions | 12.00" × 3.00" × 2.00" 30.48 cm × 7.62 cm × 5.08 cm |
| Part numbers | 083745954111 SCX12GR03 HRASCX12GR03 |
| Shipping weight | 8.40 ounces 238.14 grams 0.53 pounds |
