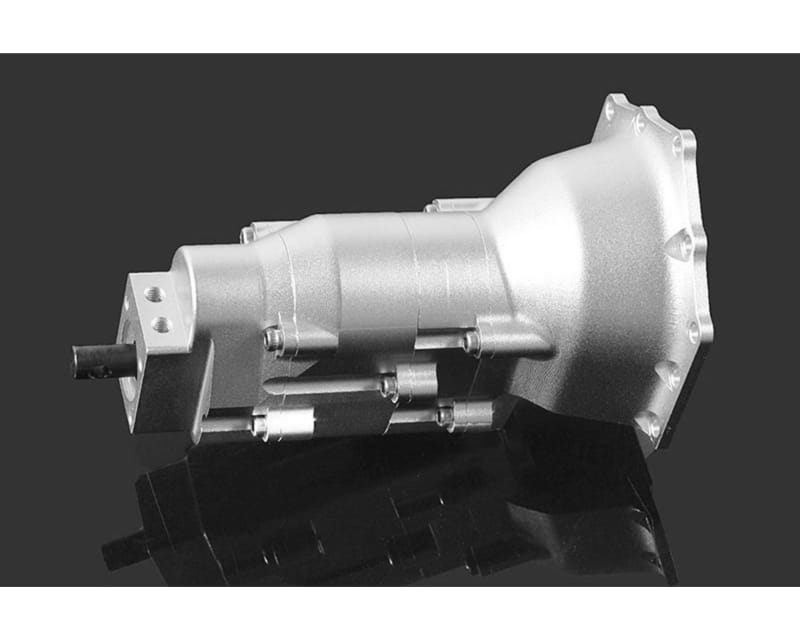

RC4WD R4 Ultimate Scale Single Speed Transmission
Made by RC4WD · RC4Z-U0031
List price: $131.03
Parts lists
Description
CNC machined billet aluminum construction
Hardened steel gears
Fastens to the Z-S1043 V8 engine replica (not included)
14T 48P Pinion Gear
36T / 20T 48P Gear
Ten M2.5 x 5mm Socket Head Cap Screws
5x11x4mm Ball Bearing
Body length: 3.07 (78mm)
Body height: 2.36 (60mm)
Output Shaft length: 0.33 (8.5mm)
Output Shaft OD: 0.19 (5mm)
Gear Ratio: 10.1:1
Weight: 5.86oz (166g)
3 Link Kit installed.
jxs 04/03/15
ir/jxs
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | China |
| Package dimensions | 2.00" × 4.50" × 7.00" 5.08 cm × 11.43 cm × 17.78 cm |
| Part numbers | Z-U0031 0639302581445 RC4ZU0031 RC4C1331 639302581445 RC4C1-331 RC4C13-31 RC4ZU0-031 RC4ZU00-31 RC4Z-U0031 |
| Shipping weight | 7.20 ounces 204.12 grams 0.45 pounds |
