AR390139 ADS-15M V2 15kg Waterproof Servo Red
Made by Arrma · ARAM1025
Sale
-15%
$62.99
List price: $74.03
2 in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description
Arrma brand Arrma ADS-15M Waterproof Metal Gear V2 Steering Servo.
Ideal for use as a steering or throttle servo in 1/10 scale vehicles
used for backyard bashing
Dual ball bearings
Metal gears
6-Point Horn, 1.5 (39mm) diameter 4-Point Horn, 1.5 (39mm)
Double Arm Horn, 0.83 (21mm) Round Horn, four each Screws,
Grommets and Eyelets
4.8V 6V
Speed: 0.16 sec 0.14 sec
Weight: 1.4oz (40g) without horn attached
Wire length: 11.8 (300mm)
Signal: Analog
Spline: 25 tooth
jxs 10/31/13
ir/jxs
FEATURES:
Dustproof and waterproof in normal USAge when mounted to a vehicleIdeal for use as a steering or throttle servo in 1/10 scale vehicles
used for backyard bashing
Dual ball bearings
Metal gears

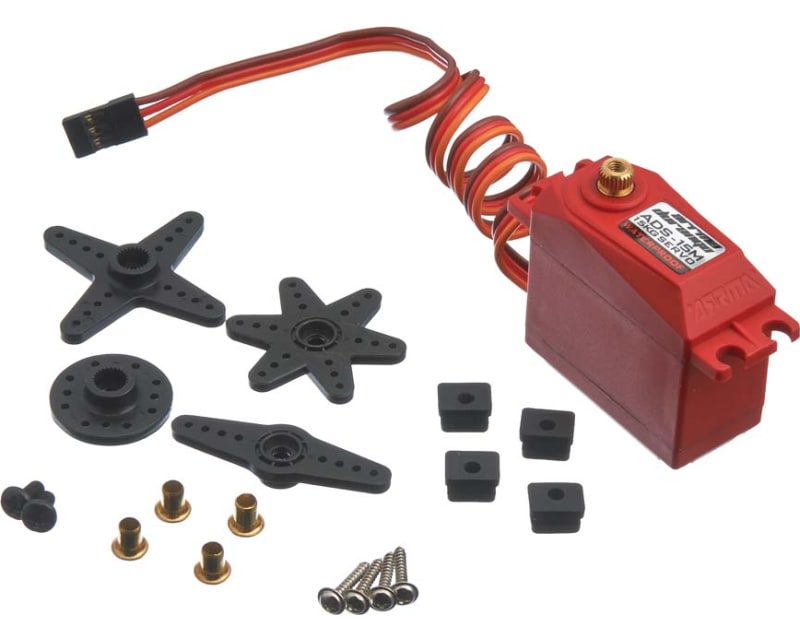

YOU WILL RECEIVE:
Arrma ADS-15M Servo with Futaba style Connector, 1.2 (32mm) diameter6-Point Horn, 1.5 (39mm) diameter 4-Point Horn, 1.5 (39mm)
Double Arm Horn, 0.83 (21mm) Round Horn, four each Screws,
Grommets and Eyelets
SPECIFICATIONS:
Torque: 208 oz/in (15 kg/cm) @ 7.2V4.8V 6V
Speed: 0.16 sec 0.14 sec
DIMENSIONS:
1.6 x 1.5 x 0.79 (40 x 38 x 20mm)Weight: 1.4oz (40g) without horn attached
Wire length: 11.8 (300mm)
Signal: Analog
Spline: 25 tooth
jxs 10/31/13
ir/jxs
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | China |
| Package dimensions | 2.00" × 3.00" × 4.50" 5.08 cm × 7.62 cm × 11.43 cm |
| Part numbers | ARAAR390139 AR390139 052127015035 ARAM1025 5052127015035 |
| Shipping weight | 3.20 ounces 90.72 grams 0.20 pounds |
