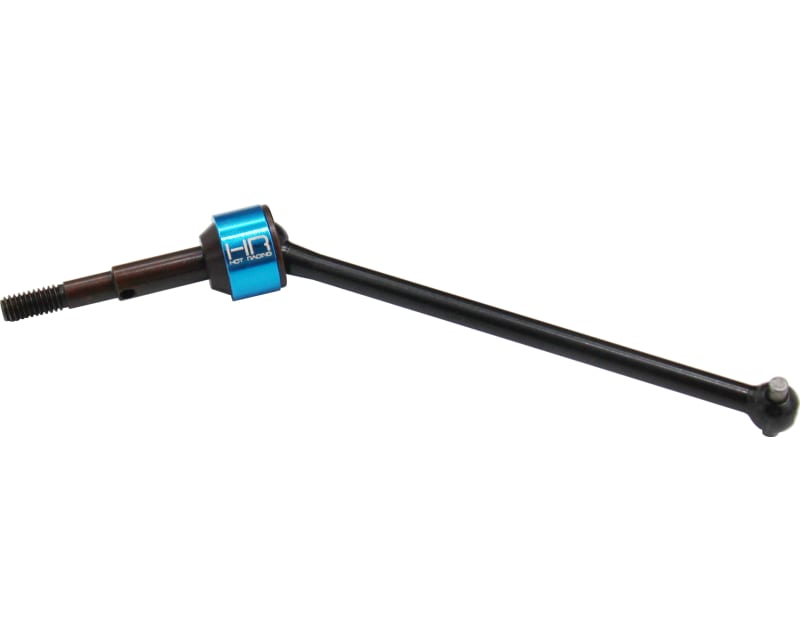

Steel & Spring Steel Cv Axles Drive Shafts ECX 2WD
Made by Hot Racing · SECT288RP
$36.88
This part is discontinued and we no longer carry it.
Description
Hot Racing optional upgrade heavy duty CV axle kit for 1/10th scale 2WD electric ECX vehicles, including the Amp, Circuit Stadium Truck, Ruckus Monster Truck, and Torment SCT. These axles will NOT work with the Boost Buggy. Kit includes axles and outdrive cups.
- Heavy duty CNC machined #45 hardened carbon steel axle shafts and outdrive cups
- Heavy duty CNC machined S2 spring steel wheel stub shafts
- Replaces factory plastic rear drive axles
- Black and brown oxide coated steel aids corrosion resistance
- Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Design eliminated CV pin setscrew
- Fully rebuildable
- Near zero backlash design
- Utilized factory 12mm wheel hex hubs
- Two (2) rear assembled CVD with spring steel wheel stub shafts
- Two (2) steel outdrive cups
- Reuses stock ECX1033 3x13mm driveshaft screws (screw shafts)
- Removable thread lock (blue threadlocking compound) on screws threading into metal
- Light grease for CV joint helps maintain their longevity
- Overall length: 113 mm (4.45 inch)
- Dogbone length pin to pin: 75mm
- Dogbone pin diameter: 2.5mm
- NOT compatible with the ECX Boost Buggy
- For brushless and high power applications Hot Racing SECT288RC splined axles are recommended
- Replae ECX232000
- Replacement parts include: RECT288A (outdrive drive hubs), RECT288C (CV rebuild), RECT288R (dogbone), and RECT288XP (Spring Steel stub shaft)
description revised by: SN September 26, 2018
FEATURES:
- Heavy duty CNC machined #45 hardened carbon steel axle shafts and outdrive cups
- Heavy duty CNC machined S2 spring steel wheel stub shafts
- Replaces factory plastic rear drive axles
- Black and brown oxide coated steel aids corrosion resistance
- Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Design eliminated CV pin setscrew
- Fully rebuildable
- Near zero backlash design
- Utilized factory 12mm wheel hex hubs
YOU WILL RECEIVE:
- Two (2) rear assembled CVD with spring steel wheel stub shafts
- Two (2) steel outdrive cups
REQUIREMENTS:
- Reuses stock ECX1033 3x13mm driveshaft screws (screw shafts)
- Removable thread lock (blue threadlocking compound) on screws threading into metal
- Light grease for CV joint helps maintain their longevity
SPECIFICATIONS:
- Overall length: 113 mm (4.45 inch)
- Dogbone length pin to pin: 75mm
- Dogbone pin diameter: 2.5mm
COMMENTS:
- NOT compatible with the ECX Boost Buggy
- For brushless and high power applications Hot Racing SECT288RC splined axles are recommended
- Replae ECX232000
- Replacement parts include: RECT288A (outdrive drive hubs), RECT288C (CV rebuild), RECT288R (dogbone), and RECT288XP (Spring Steel stub shaft)
description revised by: SN September 26, 2018
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional Details
| Country of origin | China |
| Package dimensions | 6.00" × 3.00" × 0.25" 15.24 cm × 7.62 cm × 0.64 cm |
| Part numbers | 083745932577 SECT288RP HRASECT288RP |
| Shipping weight | 1.80 ounces 51.03 grams 0.11 pounds |
