Description

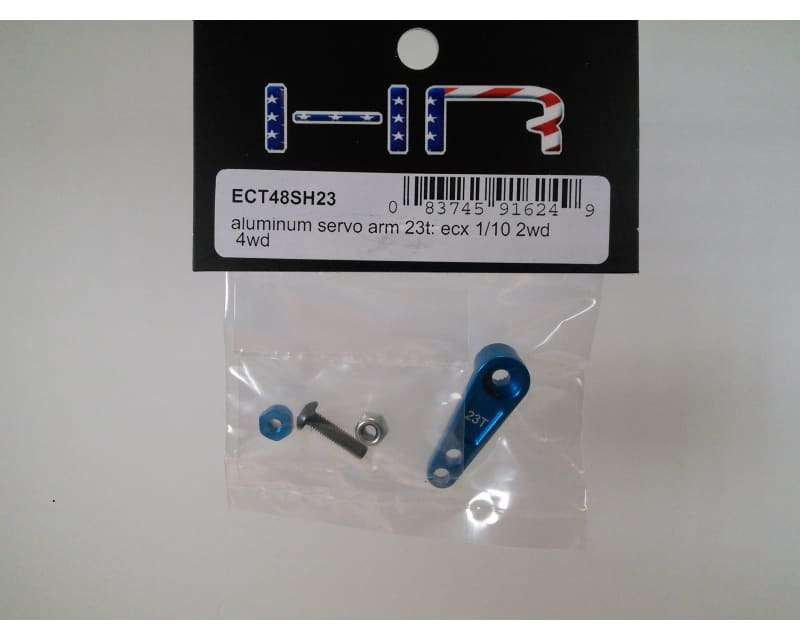

Hot Racing single arm servo arm for ECX 1/10 2WD and 1/10 4WD
- Aluminum construction
- Anodized Blue
- For use with JR KO Airtronics and Sanwa brand servos with 23 tooth spline drive
- Two 3mm linkage hole
- One 4-40 mini lock nut (blue) (for 2WD)
- One M3 x 12mm screw (for 4WD)
- One M3 Lock nut (Silver) (for 4WD)
- 23 spline servo
-Distance Hole A: 18mm
-Distance Hole B: 16mm
-Total Thickness: 7.0mm
-Material: 6061-T6 Aluminum
-Spline: 23T
- Arm Thickness: ~4mm
- Total length: ~28mm
Comment
Replace part of ECX1028 or ECX 231013
Use it in 4WD you will not have servo saver function
FEATURES:
- Anodized Blue
- For use with JR KO Airtronics and Sanwa brand servos with 23 tooth spline drive
- Two 3mm linkage hole
YOU WILL RECEIVE:
- One (1) single arm servo(Blue)- One 4-40 mini lock nut (blue) (for 2WD)
- One M3 x 12mm screw (for 4WD)
- One M3 Lock nut (Silver) (for 4WD)
REQUIREMENTS:
SPECIFICATIONS:
-Distance Hole A: 18mm
-Distance Hole B: 16mm
-Total Thickness: 7.0mm
-Material: 6061-T6 Aluminum
-Spline: 23T
- Arm Thickness: ~4mm
- Total length: ~28mm
Comment
Replace part of ECX1028 or ECX 231013
Use it in 4WD you will not have servo saver function
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 4.00" × 4.00" × 0.25" 10.16 cm × 10.16 cm × 0.64 cm |
| Part numbers | 083745916249 ECT48SH23 ECF48SH23 840353321236 HRAECT48SH23 |
| Shipping weight | 0.30 ounces 8.50 grams 0.02 pounds |
