Aluminum Steering Blocks Hd Bearings Kraton Senton Talion Typhon
Made by Hot Racing · AON21MA01
$71.88
10+ in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description

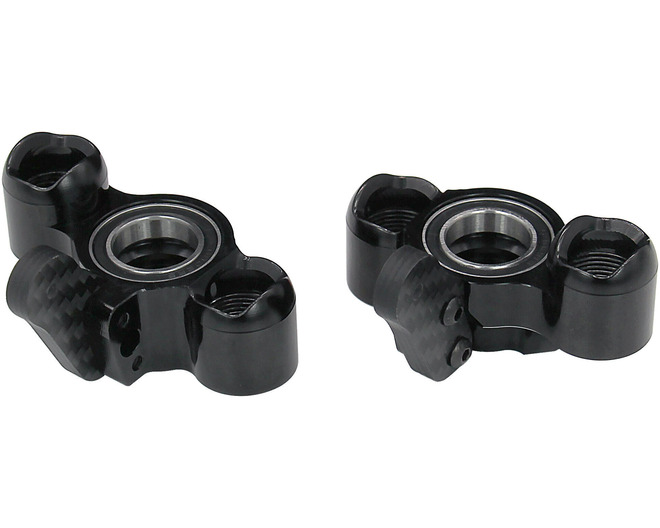

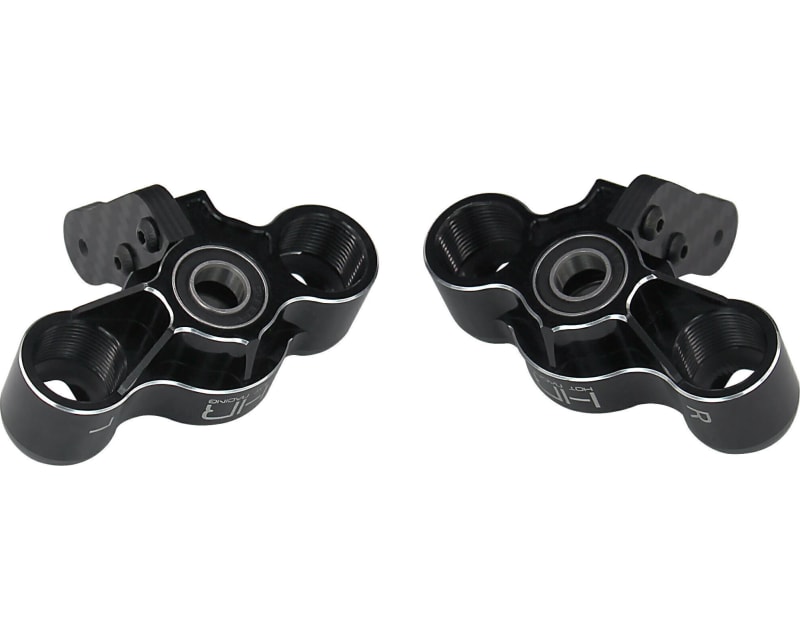

Hot Racing heavy duty aluminum steering blocks (axle carriers) with carbon fiber steering arms for the 1/8 ArrmaTalion BLX, and Typhon 6s BLX. See vehicle model compatibility in comments below.
- 4mm carbon fiber steering arms
- Aluminum hub nuts with Delrin cups and o-ring position locks
- Heavy duty rubber sealed bearings, with oversized inner bearings
- One (1) right aluminum axle carrier with with carbon fiber steering arms
- Four (4) aluminum hub nuts with Delrin cups and o-ring position locks
- Two (2) 8x16x5mm rubber shielded outer bearings
- Two (2) 15x24x5mm rubber shielded inner bearings
- Installation
- Recommended to use medium thread lock on screws

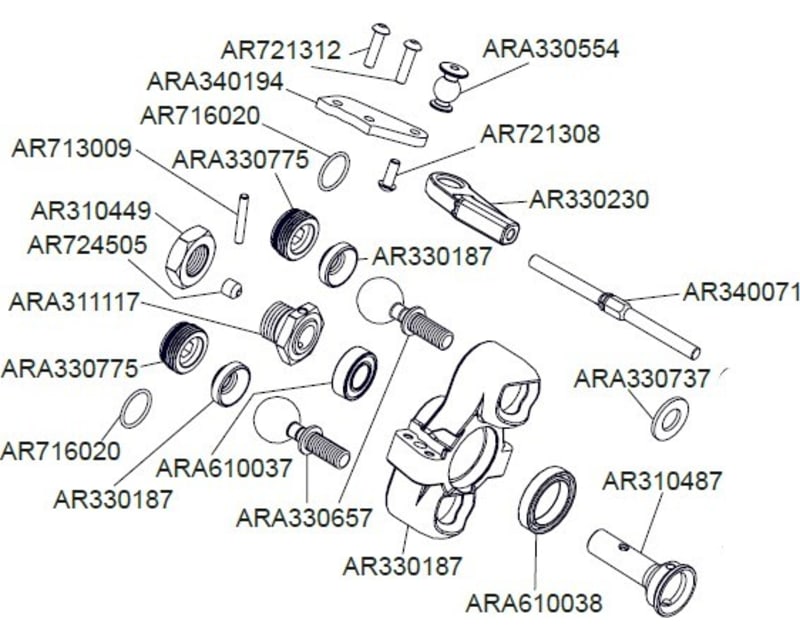

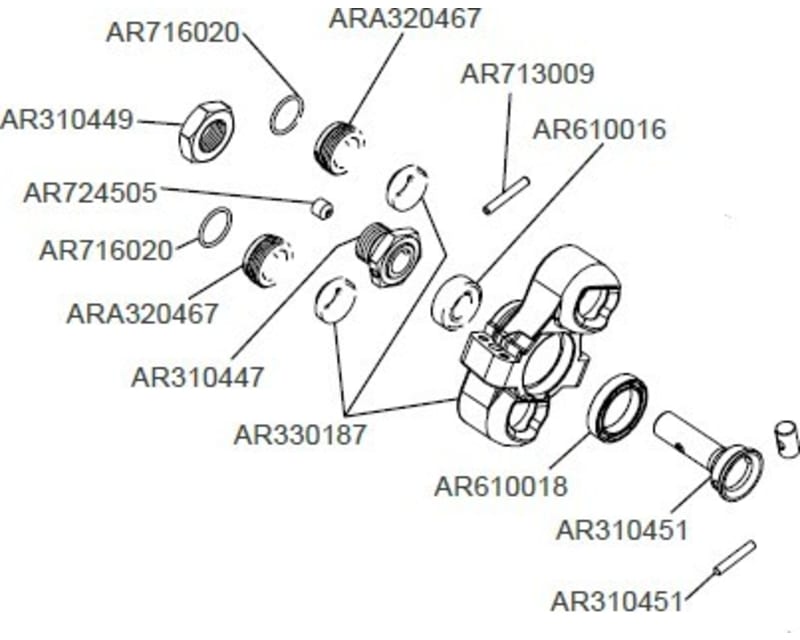

- Arrma vehicle that uses the front steering blocks from Arrma AR330187 .
- Does NOT fit vehicles that use Any Arrma that use any of these parts AR330403.Wheel hex ARAAR310447,
CVD Wheel Axle AR310451. (even they use AR330187)
- Replacement parts include, Hot Racing: AON21G (CF arms), AON21N02 (hub nuts)
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Infraction: ARA109001
- Limitless: ARA109011
- Mojave ARA106058T1, ARA106058T2
- Kraton: AR106005
- Senton: AR106007, AR102654, AR102673
- Talion: AR106003, AR106014, AR106030 (2018 V3 model), ARA106048 (V4)
- Typhon: AR106001, AR106013, AR106028, ARA106046, ARA8606V5
description revised by: JG 3-28-23
FEATURES:
- CNC machined aluminum, anodized black- 4mm carbon fiber steering arms
- Aluminum hub nuts with Delrin cups and o-ring position locks
- Heavy duty rubber sealed bearings, with oversized inner bearings
YOU WILL RECEIVE:
- One (1) left aluminum axle carrier with with carbon fiber steering arms- One (1) right aluminum axle carrier with with carbon fiber steering arms
- Four (4) aluminum hub nuts with Delrin cups and o-ring position locks
- Two (2) 8x16x5mm rubber shielded outer bearings
- Two (2) 15x24x5mm rubber shielded inner bearings
REQUIREMENTS:
- 5mm Hex wrench - Installation
- Recommended to use medium thread lock on screws
- Arrma vehicle that uses the front steering blocks from Arrma AR330187 .
- Does NOT fit vehicles that use Any Arrma that use any of these parts AR330403.Wheel hex ARAAR310447,
CVD Wheel Axle AR310451. (even they use AR330187)
SPECIFICATIONS:
- Weight: 45g per steering blockCOMMENTS:
- Replaces Arrma AR330187 front steering blocks- Replacement parts include, Hot Racing: AON21G (CF arms), AON21N02 (hub nuts)
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Infraction: ARA109001
- Limitless: ARA109011
- Mojave ARA106058T1, ARA106058T2
- Kraton: AR106005
- Senton: AR106007, AR102654, AR102673
- Talion: AR106003, AR106014, AR106030 (2018 V3 model), ARA106048 (V4)
- Typhon: AR106001, AR106013, AR106028, ARA106046, ARA8606V5
description revised by: JG 3-28-23
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 5.00" × 4.00" × 1.75" 12.70 cm × 10.16 cm × 4.45 cm |
| Part numbers | AON21MA01 083745901931 AOR21MA01 840353320826 HRAAON21MA01 |
| Shipping weight | 3.43 ounces 97.30 grams 0.21 pounds |
