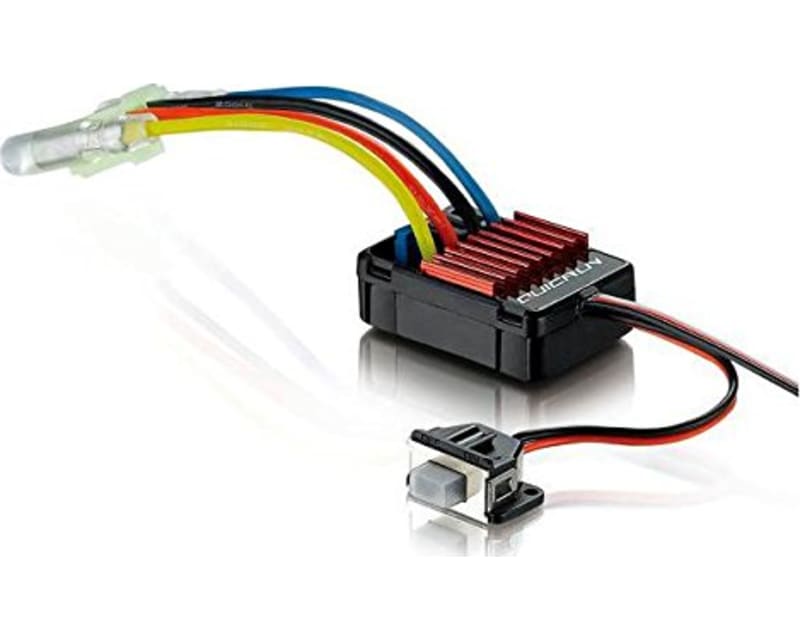

QUICRUN Brushed micro ESC - WP 1625

QUICRUN Brushed ESC - WP 1625 made by Hobbywing
Waterproof and dustproof, suitable for races in all weather conditions.
Small size with built-in capacitor module.
Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
Great current endurance capability.
Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.
ESC parameters are easy to set with jumpers.
Multiple protections:
Over Voltage Protection
Low voltage cut-off protection for battery
Over-heating protection
Throttle signal loss protection.
Risk Free Manufacturers limited warranty
Fwd Cont. Current /Peak Current/ Resistance - 25A/100A/0.003
Rev Cont. Current /Peak Current/ Resistance - 25A/100A/0.003
Motor Type Supported - Brushed Motor
Car Applicable - 1:16 & 1:18 On-road/Off-road/Buggy/Monster
Suitable Battery - For 2S LiPo or 6 cell NiMh :
Brushed Motor Limit :
280370 or 380 Size Motor RPM<30000 @7.2V
For 3S LiPo or 9 cell NiMh :
280370 or 380 Size Motor RPM<20000 @7.2V
Input Connectors - Small-sized Tamiya Connector
Output Connectors - 4.0 Bullet Connectors (Female)
BEC Output - 1A/5V (Linear Mode)
PWM Frequency - 1KHz
Size/ Weight - 34(L)*24(W)*14(H) / 23.5g
Running Modes - Forward/Reverse/Brake
