SCXT12SR
Ar44 Steel Solid Axle for Scx10 Ii$14.88
10+ in stock
Ackerman Steering Hard Axle Case - Axial Scx Ii
Made by Hot Racing · SCXT12AH
$168.88
This part is discontinued and we no longer carry it.
Description

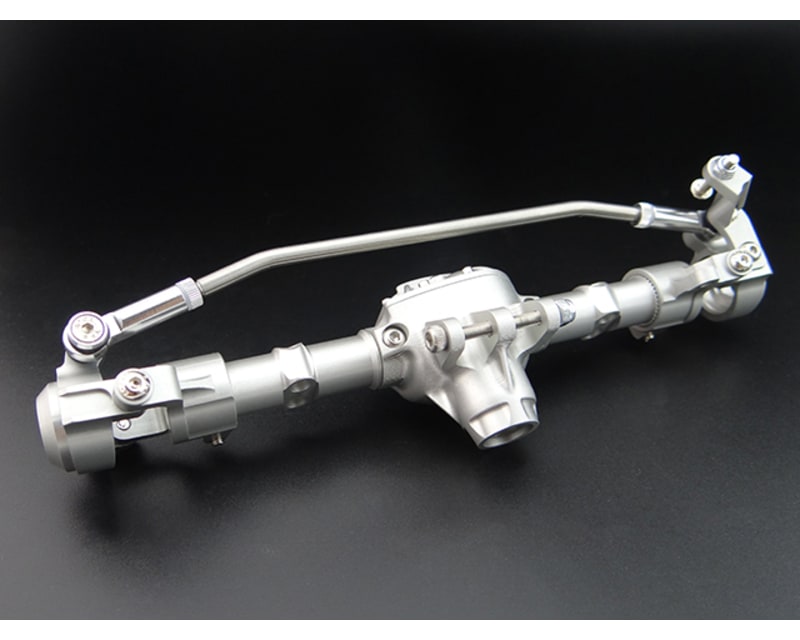

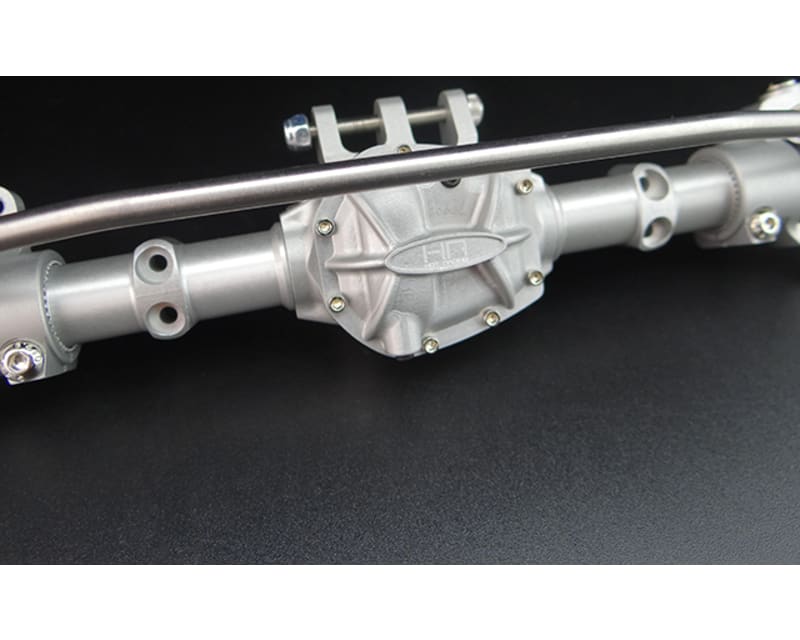

Hot Racing's machined aluminum hi-steer AR44 axle for the Axial SCX10 II kit and RTR vehicles
- High pinion center section
- Extreme scale looks
- CNC machined 6061 aluminum, including: center section, tubes, diff cover, C-hubs, and knuckles
- Silver anodizing
- Retains stock 8 degree kingpin angle for optimum scrub radius (can be adjusted by rotating the C-hubs)
- High clearance front steering tie rod and aluminum rod ends
- Optimized ackermann steering knuckle arms allow for tighter turning radius
- Interlocking c-hub knuckle to distribution equal joint loads
- Functioning diff cover fill and drain plugs
- Replaces factory plastic axle case housing and diff cover
- Parts to complete the axle, including: gears, bearings, differential, axles, etc.
- Recommended to use medium thread lock on screws threading into metal (screws may not have thread lock from the factory)
- Adjust the end points and dual rate settings on the transmitter to prevent over-steering damage to steering and drivetrain
- See the Hot Racing SCXT12A02 axle for a black variant
description revised by: SN January 25, 2017
FEATURES:
- Center section designed for maximum ground clearance- High pinion center section
- Extreme scale looks
- CNC machined 6061 aluminum, including: center section, tubes, diff cover, C-hubs, and knuckles
- Silver anodizing
- Retains stock 8 degree kingpin angle for optimum scrub radius (can be adjusted by rotating the C-hubs)
- High clearance front steering tie rod and aluminum rod ends
- Optimized ackermann steering knuckle arms allow for tighter turning radius
- Interlocking c-hub knuckle to distribution equal joint loads
- Functioning diff cover fill and drain plugs
- Replaces factory plastic axle case housing and diff cover
YOU WILL RECEIVE:

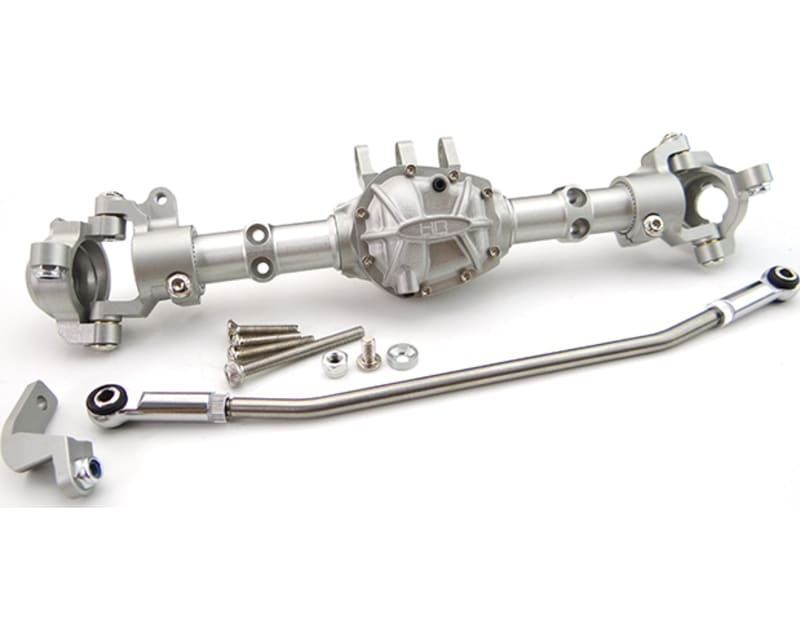

- One (1) set of axle housing, diff cover, steering knuckles, and tie rodSPECIFICATIONS:
- Weight: 106gREQUIREMENTS:
- Installation- Parts to complete the axle, including: gears, bearings, differential, axles, etc.
- Recommended to use medium thread lock on screws threading into metal (screws may not have thread lock from the factory)
COMMENTS:

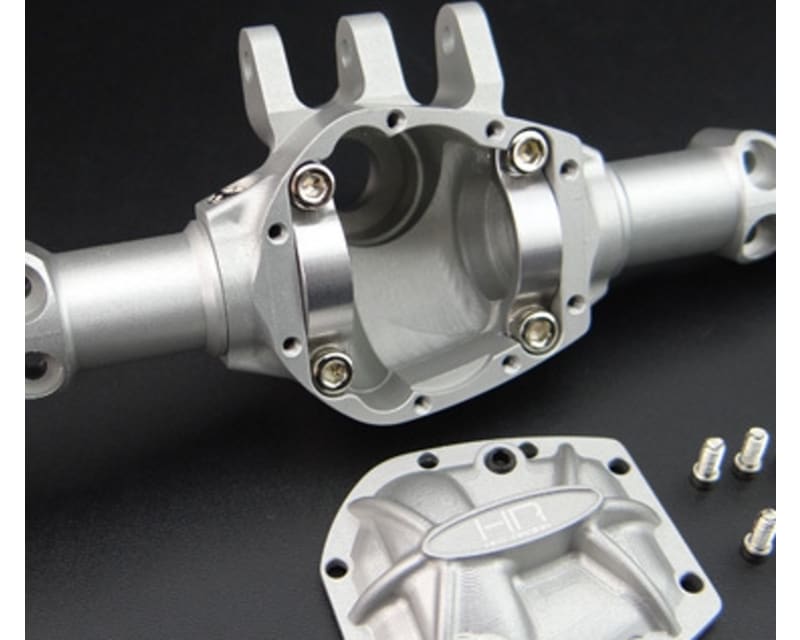

- The case is EMPTY. You will need gears, bearings, differential, axles, etc. - Adjust the end points and dual rate settings on the transmitter to prevent over-steering damage to steering and drivetrain
- See the Hot Racing SCXT12A02 axle for a black variant
description revised by: SN January 25, 2017
Related Parts
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional Details
| Country of origin | China |
| Package dimensions | 9.00" × 3.00" × 2.00" 22.86 cm × 7.62 cm × 5.08 cm |
| Part numbers | SCXT12AH 083745895452 840353319653 HRASCXT12AH |
| Shipping weight | 3.90 ounces 110.56 grams 0.24 pounds |
