Heavy Duty Steel Scale Look U-Joints Shafts Scx10 Ii (2speed)
Made by Hot Racing · SCXT37A02
$56.88
10+ in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description

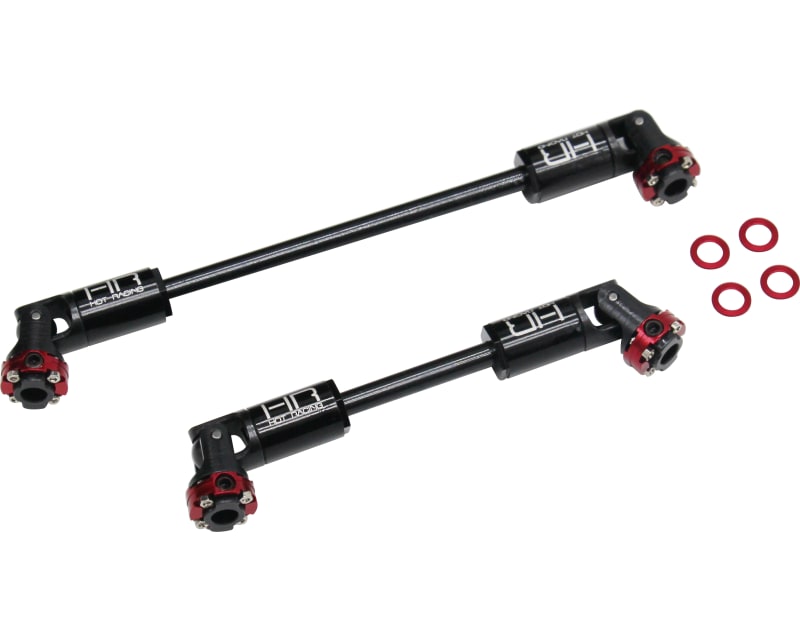

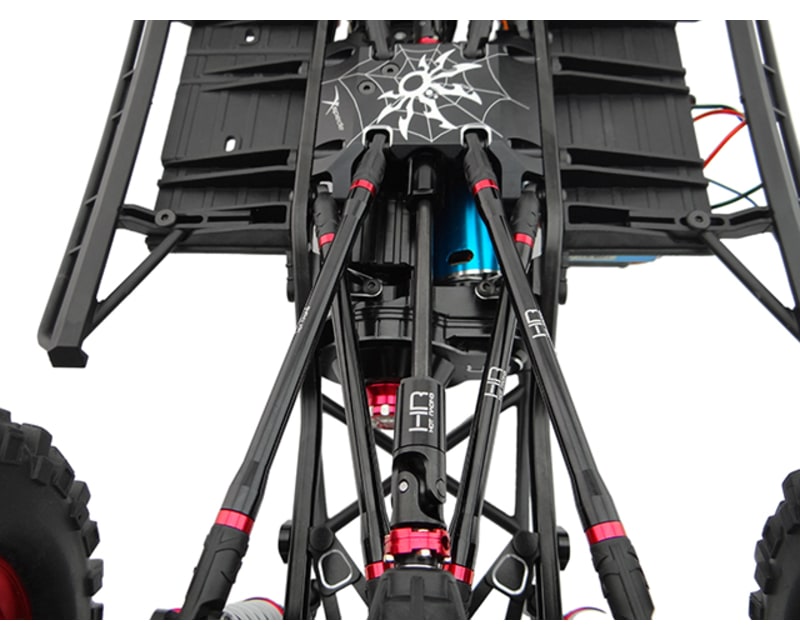

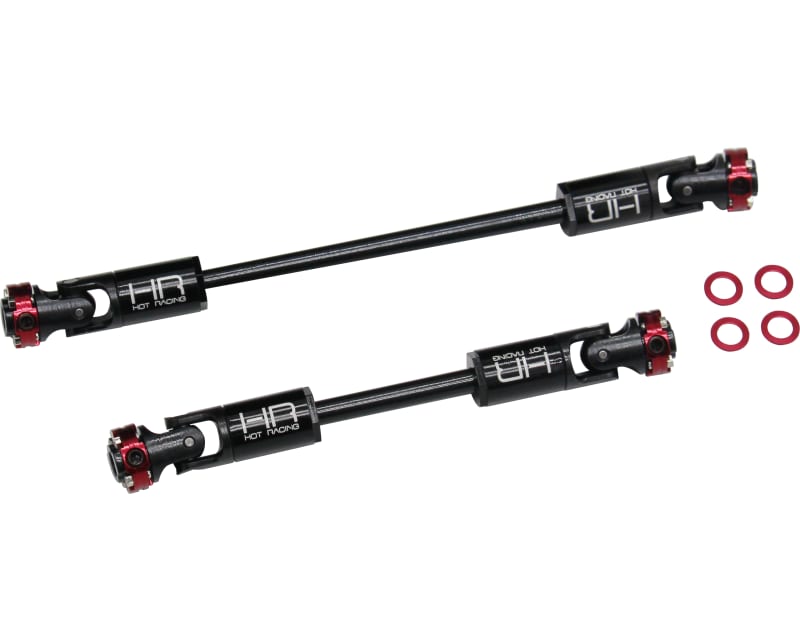

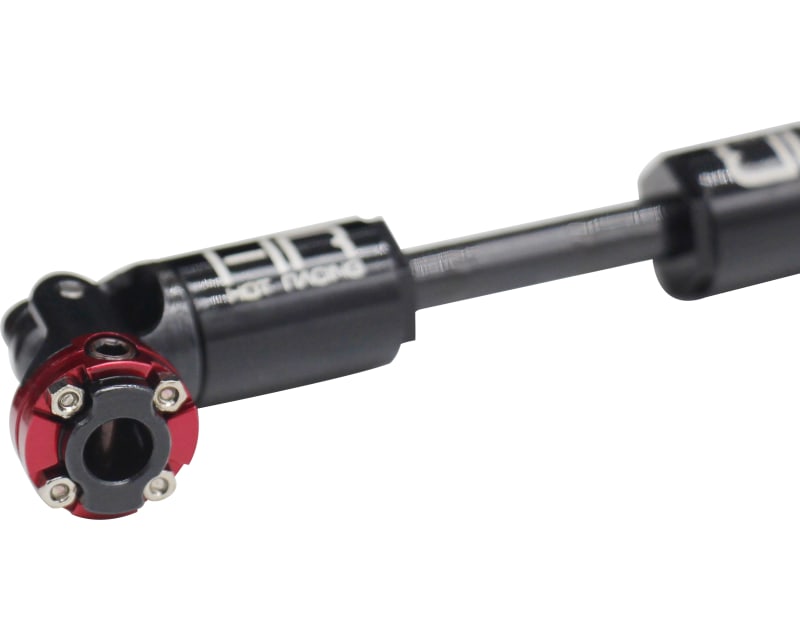

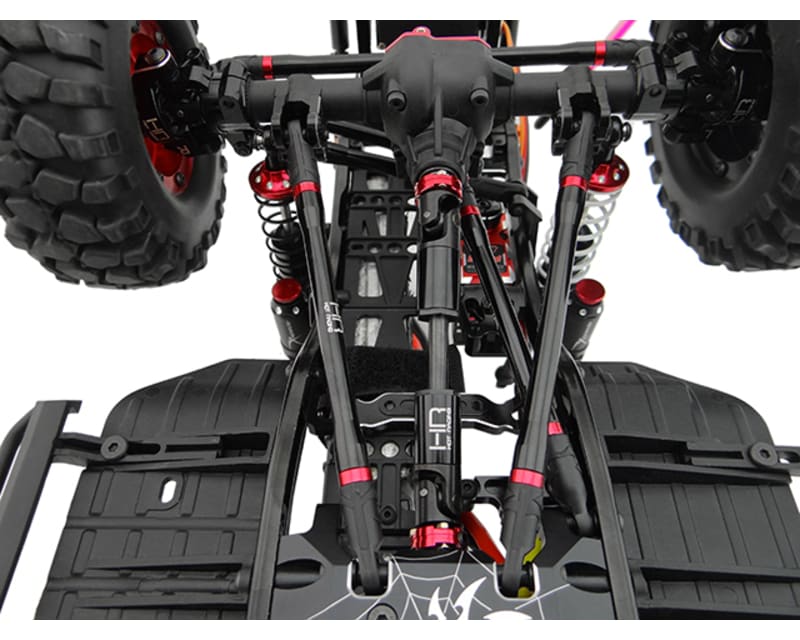

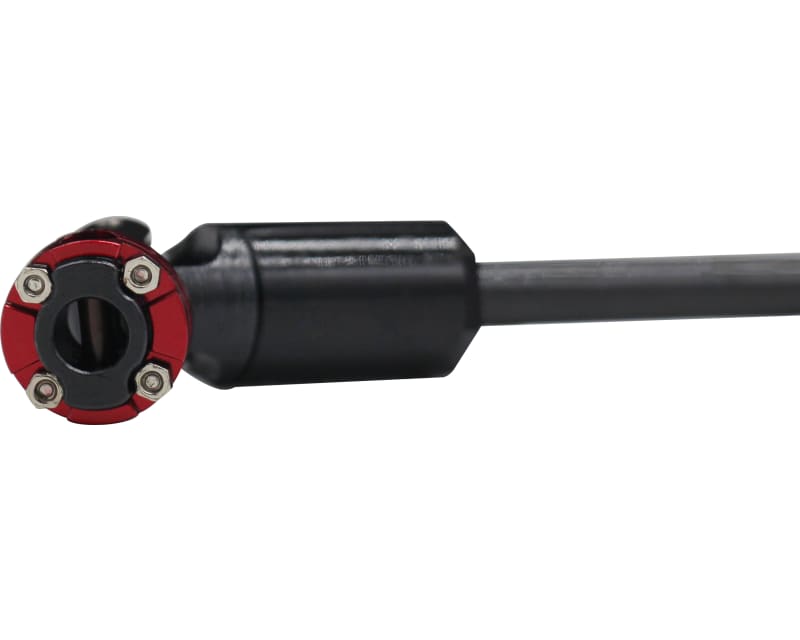

Hot Racing heavy duty steel front and rear telescoping driveshafts with scale looks for the for the Axial SCX10 II Kit vehicles (not RTR)
- 6061 aluminum screw-on sleeves to capture steel telescoping pins
- Red anodized aluminum cross-pin ring enhances scale look
- Replaces factory plastic front and rear drive shafts
- One (1) rear steel drive shaft with universal joints
- SCX10 II Kit vehicle (not RTR) with 2-speed capable transmission
- Recommended to use medium threadlock on screw shafts
- Recommended to maintain telescoping assembly with grease
- Short shaft extended length: 84mm joint-joint, 112.5mm overall
- Short shaft travel: ~22mm
- Long shaft compressed length: 108mm joint-joint, 136.5mm overall
- Long shaft extended length: 130mm joint-joint, 158.5mm overall
- Long shaft travel: ~22mm
- Outside diameter: 11.5mm
- Shaft diameter: 5mm
- Couplers fit 5mm shafts
- Replacement screw shafts are AXA0286 M4x2.5x12mm
- Replacement red pin collars are Hot Racing RSCXT37A02
description revised by: SN February 27, 2019
FEATURES:
- Heavy duty CNC machined hardened carbon steel construction- 6061 aluminum screw-on sleeves to capture steel telescoping pins
- Red anodized aluminum cross-pin ring enhances scale look
- Replaces factory plastic front and rear drive shafts
YOU WILL RECEIVE:
- One (1) front steel drive shaft with universal joints- One (1) rear steel drive shaft with universal joints
REQUIREMENTS:
- Installation, refer to vehicle manual- SCX10 II Kit vehicle (not RTR) with 2-speed capable transmission
- Recommended to use medium threadlock on screw shafts
- Recommended to maintain telescoping assembly with grease
SPECIFICATIONS:
- Short shaft compressed length: 61.5mm joint-joint, 90mm overall- Short shaft extended length: 84mm joint-joint, 112.5mm overall
- Short shaft travel: ~22mm
- Long shaft compressed length: 108mm joint-joint, 136.5mm overall
- Long shaft extended length: 130mm joint-joint, 158.5mm overall
- Long shaft travel: ~22mm
- Outside diameter: 11.5mm
- Shaft diameter: 5mm
- Couplers fit 5mm shafts
COMMENTS:
- Will NOT work with SCX II vehicles equipped with the RTR (The old SCX) transmission- Replacement screw shafts are AXA0286 M4x2.5x12mm
- Replacement red pin collars are Hot Racing RSCXT37A02
description revised by: SN February 27, 2019
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 8.00" × 3.50" × 0.25" 20.32 cm × 8.89 cm × 0.64 cm |
| Part numbers | SCXT37A02 083745892994 840353319349 HRASCXT37A02 |
| Shipping weight | 3.49 ounces 98.88 grams 0.22 pounds |
