Description

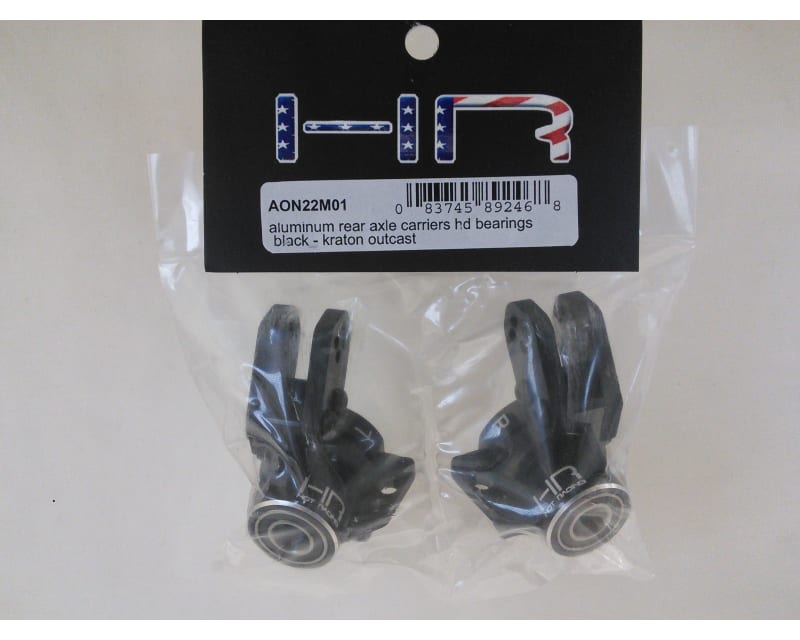

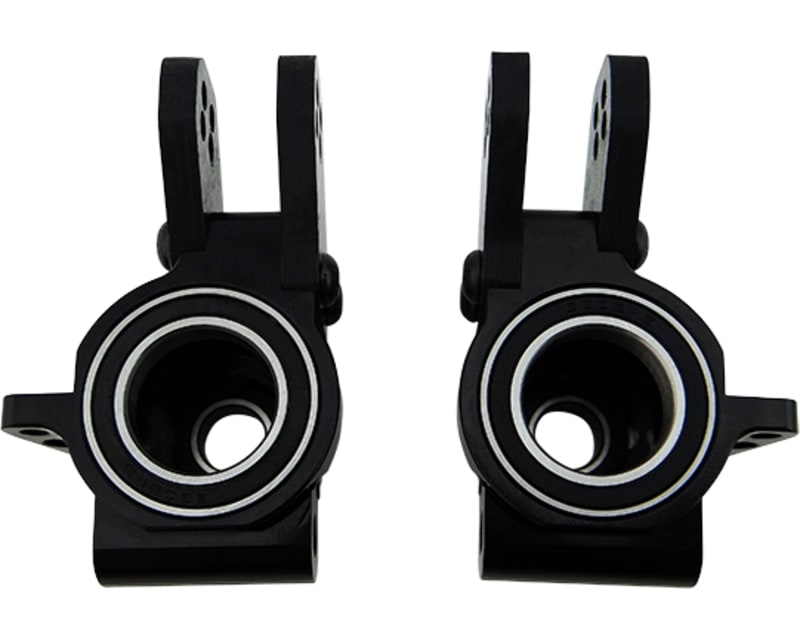

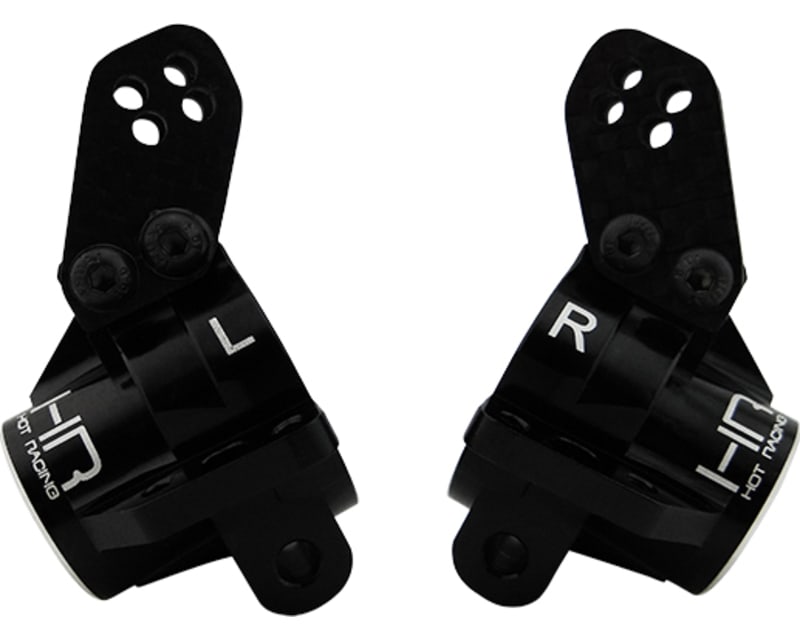

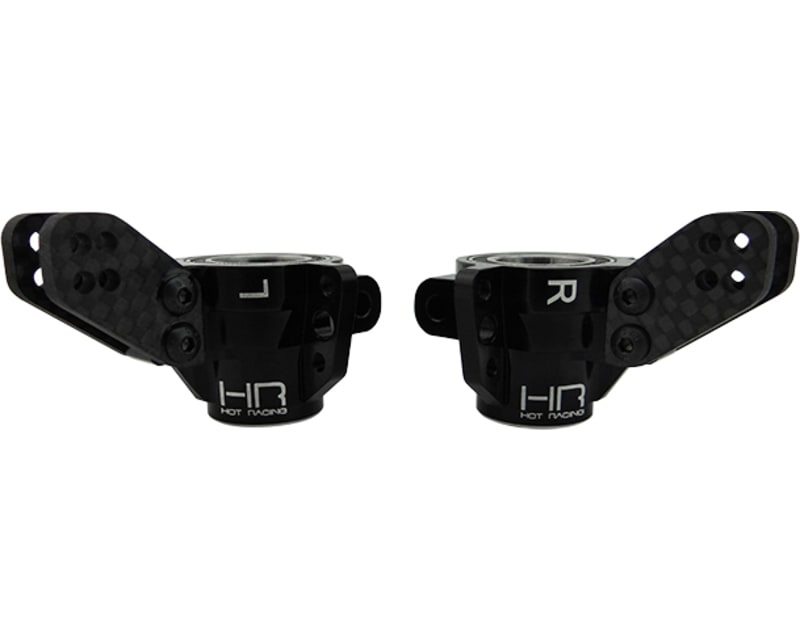

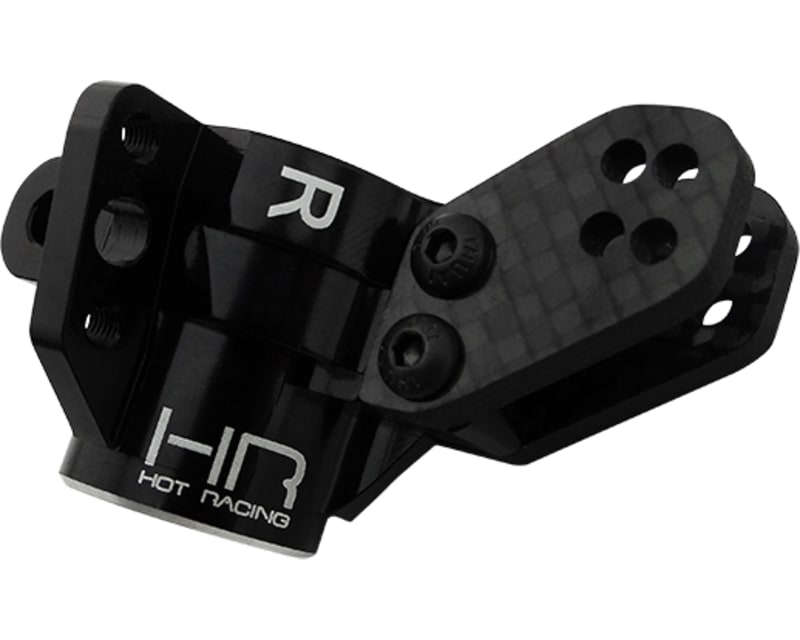

Hot Racing aluminum rear hubs with carbon fiber link tabs for the 1/8 Arrma Kraton BLX Notorious BLX, or Outcast BLX. See vehicle model compatibility in comments below.
- Double shear 4mm carbon fiber link tabs
- Oversized heavy duty rubber sealed inner bearings
- One (1) right aluminum axle carrier with with carbon fiber link mounts
- Two (2) 15x24x5mm rubber shielded inner bearings
- Recommended to use medium thread lock on screws
- Arrma vehicle that uses the rear hubs from Arrma AR330404
- Replacement parts include: AON22G (CF link tabs)
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Kraton: AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
- Notorious: AR106034/6 (black/blue), ARA106044T1/2 (black/blue)
- Outcast: AR106021, AR106027, AR106032/3 (silver/orange), ARA106042T1/2 (silv/org)
description revised by: SN May 6, 2019
FEATURES:
- CNC machined aluminum construction, anodized black- Double shear 4mm carbon fiber link tabs
- Oversized heavy duty rubber sealed inner bearings
YOU WILL RECEIVE:
- One (1) left aluminum axle carrier with with carbon fiber link mounts- One (1) right aluminum axle carrier with with carbon fiber link mounts
- Two (2) 15x24x5mm rubber shielded inner bearings
REQUIREMENTS:
- Installation- Recommended to use medium thread lock on screws
- Arrma vehicle that uses the rear hubs from Arrma AR330404
COMMENTS:
- Replaces Arrma AR330404 rear hubs- Replacement parts include: AON22G (CF link tabs)
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- Kraton: AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
- Notorious: AR106034/6 (black/blue), ARA106044T1/2 (black/blue)
- Outcast: AR106021, AR106027, AR106032/3 (silver/orange), ARA106042T1/2 (silv/org)
description revised by: SN May 6, 2019
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.95" 10.13 cm × 10.13 cm × 2.41 cm |
| Part numbers | AON22M01 083745892468 840353319295 HRAAON22M01 |
| Shipping weight | 2.76 ounces 78.26 grams 0.17 pounds |
