4-Pole Sensored BL Motor 1406-4600Kv 060-0056-00

Made by Castle Creations · CSE060-0056-00

Sale
-31%
$99.95

List price: $145.43

One left

Parts lists

Log in to add this part to a parts list to start planning your next project!

Description

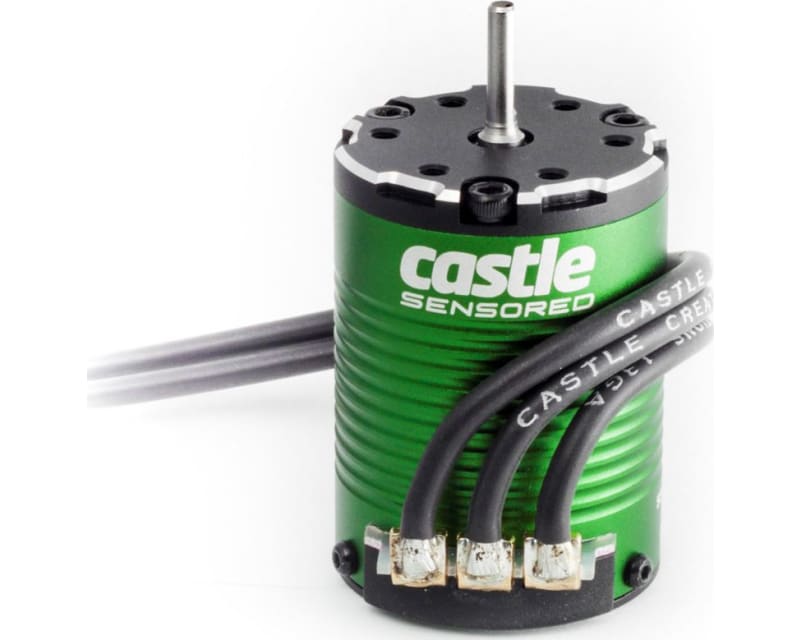

This is the Castle Creations 1406 4600Kv Sensored brushless Motor.
**NOT for use in 4WD short course trucks. **
FEATURES:
For 2WD short course trucks on 2S LiPos geared conservatively,
1/10 scale 2WD stadium trucks and buggies on 2S for bashing and
limited runs on 3S LiPos with conservative gearing, also ideal for
1/10 scale on road cars running on 2S and 3S LiPo power
Four pole configuration for maximum efficiency at high RPM
YOU WILL RECEIVE:
1406 4600Kv Sensored brushless Motor
Sensor Wire
Three 4mm Female Connectors
REQUIREMENTS:
Electronic Speed Control such as the Castle Creations Sidewinder
SV3, CSEM0115
SPECIFICATIONS:
Input Voltage Range: 2-3S LiPo
Kv: 4600
Max. RPM: 100, 000
Max. Recommended Vehicle Weight: 5lbs (2278g) with battery RTR
length: 1.9" (49.5mm)
diameter: 1.4" (36mm)
Weight with Wires: 6.9oz (197g)
Shaft diameter: 1/8" (3.17mm)
Shaft length: 0.59" (15mm)
Mounting Hole
SPECIFICATIONS:
M3 @ 25mm
Connectors: 4mm Male Castle Bullet
jxs 12/23/16
ir/jxs

Manufacturer information

Castle Creations logo

Castle Creations

402 E. Pendleton Ave.

Wellsville, KS 66092

https://www.castlecreations.com/

Your Mamba is warranted for one (1) year from date of purchase to be free from manufacturing and component defects. This warranty does not cover abuse, neglect, or damage due to incorrect wiring, over voltage, or overloading. If you have any questions, comments, or wish to return your Mamba for warranty or non-warranty repair/replacement contact Castle Creations at: Castle Creations 402 E. Pendleton Ave. Wellsville, KS 66092 Tel: (785) 883- 4519 Email: info@castlecreations.com Fax: (785) 883- 4571 Website: http://www.castlecreations.com All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.

Additional details

Country of originChina
Package dimensions

6.25" × 3.13" × 2.38"

15.88 cm × 7.95 cm × 6.05 cm

Part numbers

CSE060005600

CSE5600

CSE060-0056-00

CSEC5600

819326011399

Shipping weight

8.70 ounces

246.64 grams

0.54 pounds
