Description

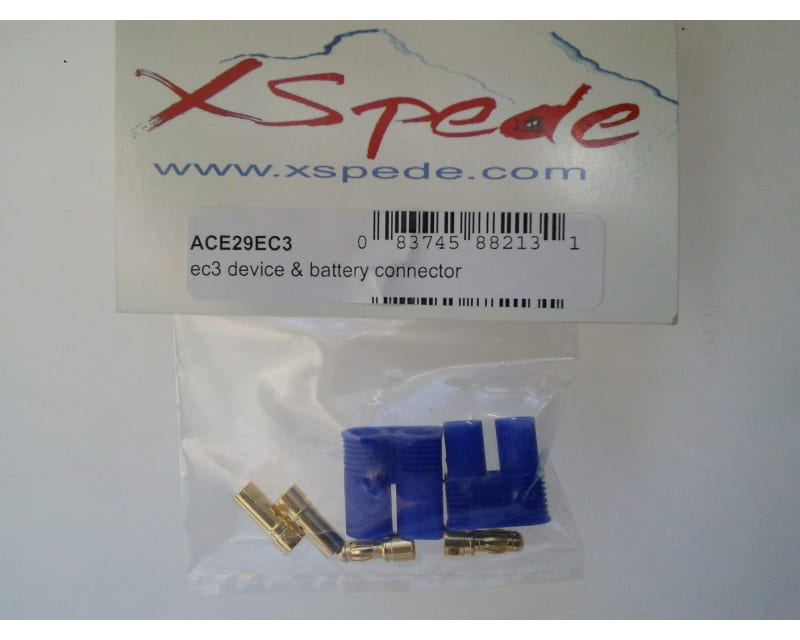

This is the Xspede EC3 Skidproof 3.5 Connector Set
Ideal for battery to ESC connections
Order of assembly:
1. insert wire through plastic housing
2. strip and tin wire
3. pre-tin connector contact being careful to keep solder inside cup
4. solder wire into contact
5. seat contact into housing
FEATURES:

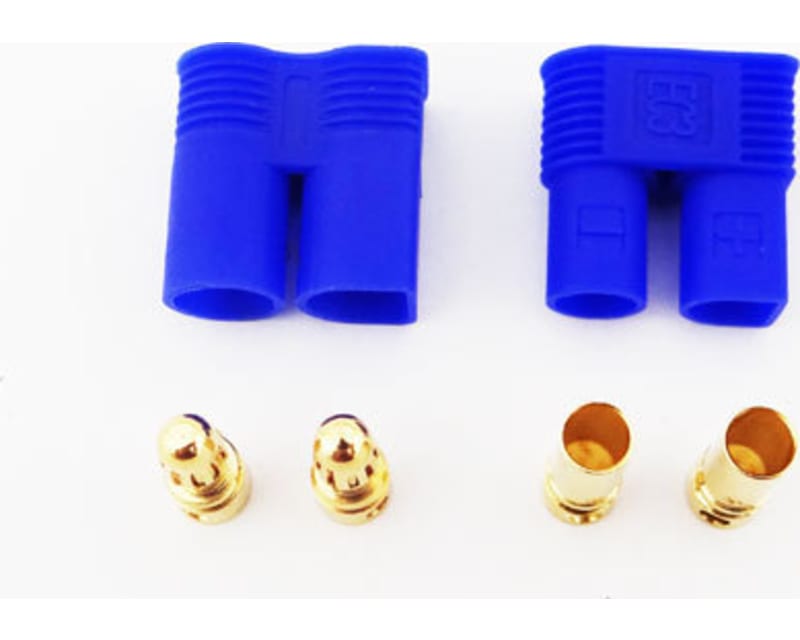

Blue plastic housing with two each 3.5mm diameter male and female connectorsIdeal for battery to ESC connections
YOU WILL RECEIVE:
Two EC3 Skidproof 3.5 ConnectorsREQUIREMENTS:
Soldering leads to connectorsNOTE:
The contacts install wire side into the housing. This is backwards from other brands of EC connectors. Order of assembly:
1. insert wire through plastic housing
2. strip and tin wire
3. pre-tin connector contact being careful to keep solder inside cup
4. solder wire into contact
5. seat contact into housing
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.95" 10.13 cm × 10.13 cm × 2.41 cm |
| Part numbers | ACE29EC3 083745882131 840353324565 HRAACE29EC3 |
| Shipping weight | 0.32 ounces 9.07 grams 0.02 pounds |
