Description

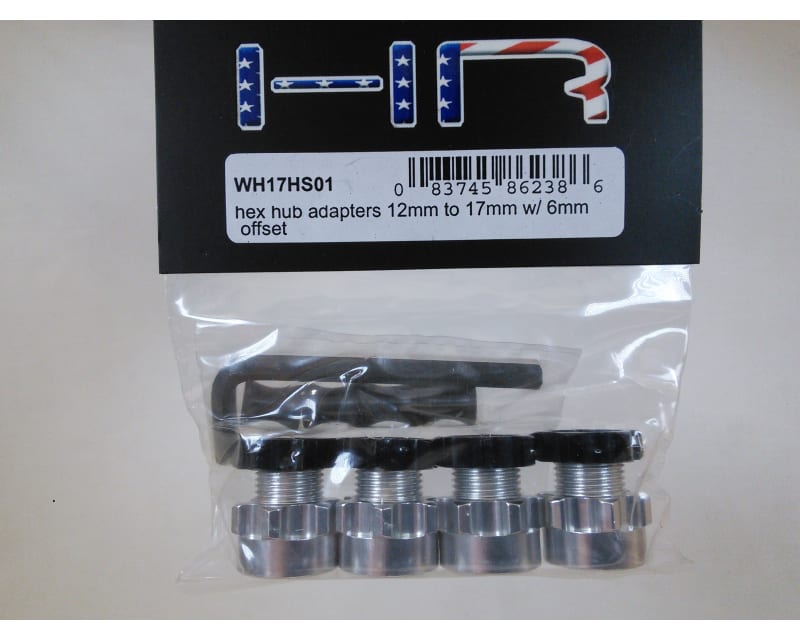

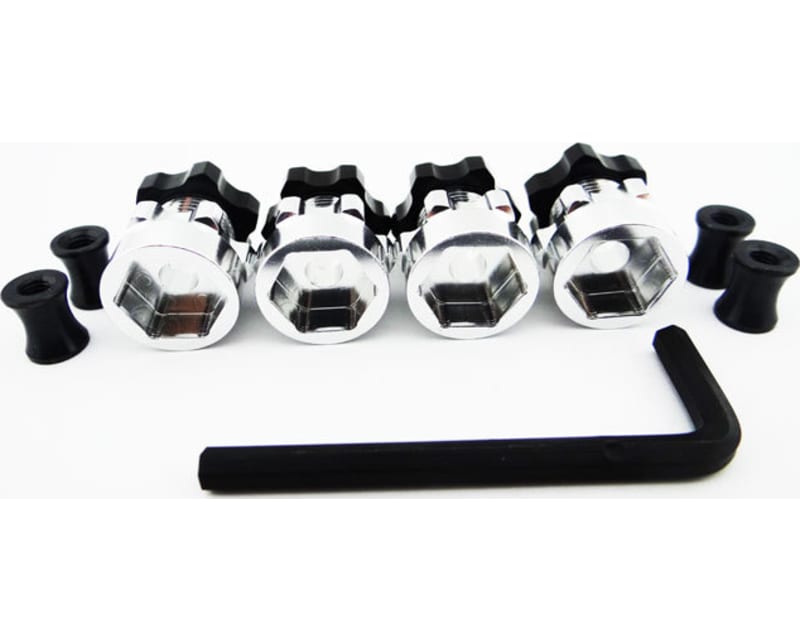

Hot Racing's aluminum 12mm to 17mm hex wheel hub adapters. These adapters are compatible with many 1/10th scale vehicles with factory 12mm hex hubs and allow the use of 17mm hex wheels, all while adding a 6mm width extension per side of the vehicle for a wider, more stable, stance.
- 12mm hex to 17mm hex conversion
- 6mm offset extension per side
- 17mm wheel nuts
- Adapters are anodized silver in color, wheel nuts are anodized black
- Wheel nuts feature an internal o-ring to maintain the nut position, even under the most severe conditions
- Four (4) wheel nuts
- Four (4) M4 axle hub nuts
- These adapters fix a wide array of vehicles. Make sure the vehicle uses a hex at least 5mm thick, or the adapter may bind against the hub.
- Max axle diameter: 5mm
- Axle thread: M4
- Hex depth: 5mm
- O-rings are 11x1mm
description revised by: SN December 31, 2018
FEATURES:
- CNC machined solid billet aluminum construction- 12mm hex to 17mm hex conversion
- 6mm offset extension per side
- 17mm wheel nuts
- Adapters are anodized silver in color, wheel nuts are anodized black
- Wheel nuts feature an internal o-ring to maintain the nut position, even under the most severe conditions
YOU WILL RECEIVE:
- Four (4) wheel adapters- Four (4) wheel nuts
- Four (4) M4 axle hub nuts
REQUIREMENTS:
- Recommended to use a removable-type locking adhesive on axle nuts- These adapters fix a wide array of vehicles. Make sure the vehicle uses a hex at least 5mm thick, or the adapter may bind against the hub.
SPECIFICATIONS:
- Total length: 20mm- Max axle diameter: 5mm
- Axle thread: M4
- Hex depth: 5mm
COMMENTS:
- See Hot Racing RSSLF117X for replacement/spare M4 axle hub nuts- O-rings are 11x1mm
description revised by: SN December 31, 2018
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 2.00" × 3.25" × 0.75" 5.08 cm × 8.26 cm × 1.91 cm |
| Part numbers | WH17HS01 083745862386 SLF17HS01 840353318601 HRAWH17HS01 |
| Shipping weight | 1.70 ounces 48.11 grams 0.11 pounds |
