Description

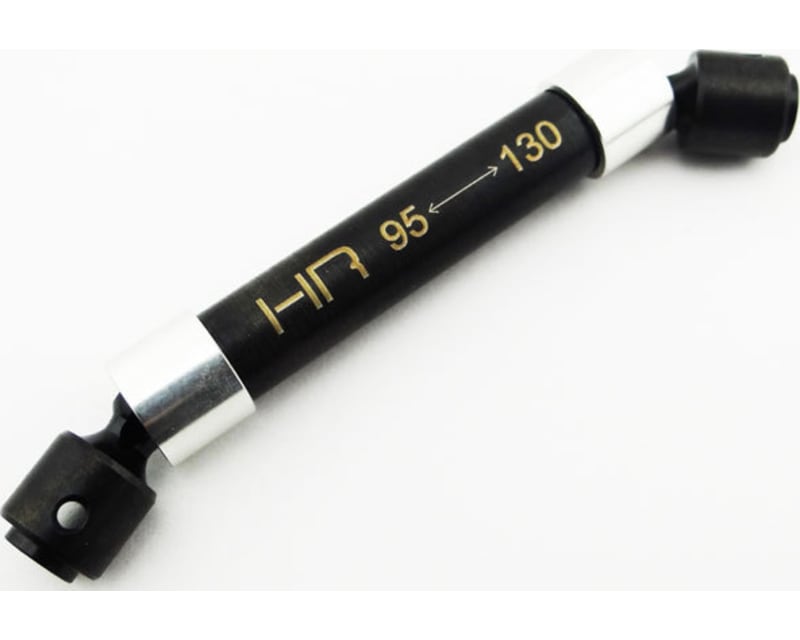

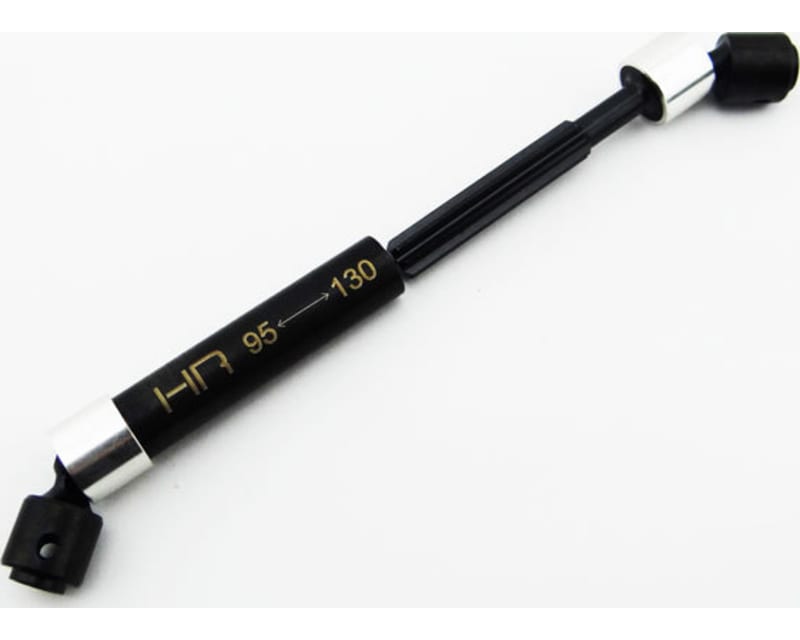

Hot Racing optional upgrade heavy duty splined star drive shaft for the Tamiya CR01 (front), Axial AX10 (stock), Axial SCX10 (front), or custom vehicle. Please see the specifications below to verify fitment for your vehicle.
- Aluminum pin capture rings with rubber o-rings to prevent movement
- Design eliminated CV pin setscrew
- Compatible with 5mm output shafts
- Steel is black finished
- Recommended to maintain CV joint and shaft spline with grease
- Recommended to use a removable-type locking adhesive on screws threading into metal
- Recommended operating length: 95-130mm end-to-end (85-120mm hub pin to hub pin)
- Recommended travel: 35mm
- Spline engagement at 130mm: 10mm
- Compatible with 5mm output shafts
- M3 threaded holes for vehicle attachment
- Replacement parts are Hot Racing: RCV11DH (drive hub), RCV11P (CV rebuild kit), RCV11R (o-rings)

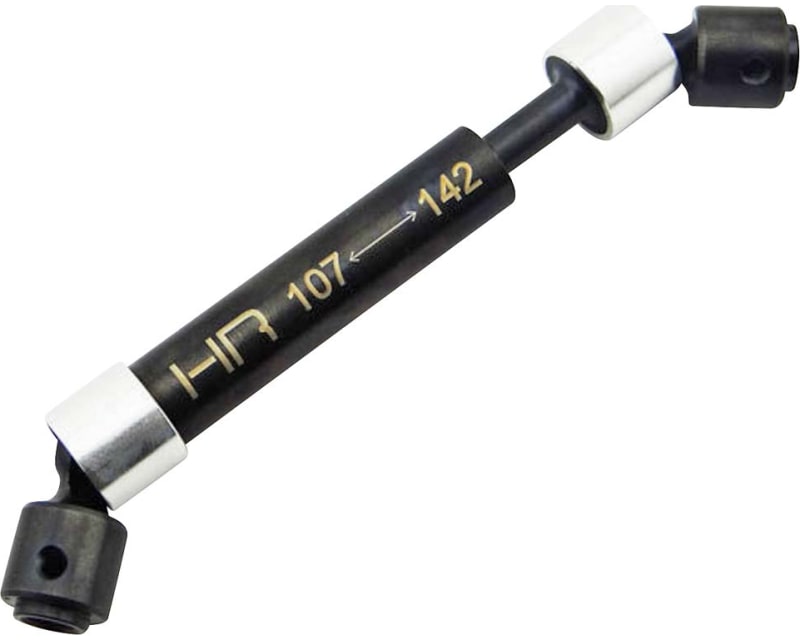

- Available driveshafts are, Hot Racing: SCP37VS (short 95-130mm), SCP37VM (medium 107-142mm), SCP37VL (long 120-155mm)
- Chassis / Center Gear Box / Front Shaft / Rear Shaft:
- Axial RR10 / stock / SCP37VM / HR SCP37VL (needs AXA0175)
- Axial SCX10 / HR SCX38TP03 / HR SCP37VS / HR SCP37VM
- Axial SCX10 / HR SCX38HT03 / HR SCP37VS / HR SCP37VM
- Axial Wraith / HR WRA38TP03 / HR SCP37VS / HR SCP37VM
- Axial Wraith / HR WRA38CP03 / HR SCP37VM / HR SCP37VM
- Axial Wraith / HR SCX38HT03 / HR SCP37VS / HR SCP37V
description revised by: SN March 20, 2019
FEATURES:
- Heavy duty CNC machined hardened carbon steel construction- Aluminum pin capture rings with rubber o-rings to prevent movement
- Design eliminated CV pin setscrew
- Compatible with 5mm output shafts
- Steel is black finished

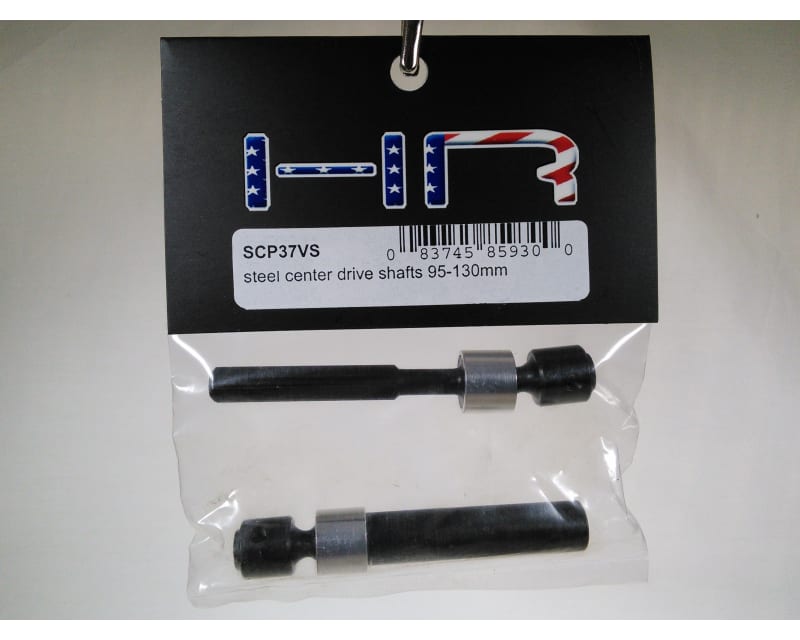

YOU WILL RECEIVE:
- One (1) center CVD drive shaft assemblyREQUIREMENTS:
- 4X M3 setscrews or 2X screw pins (e. g. Axial AXA0175) to attach to transmission and differentials- Recommended to maintain CV joint and shaft spline with grease
- Recommended to use a removable-type locking adhesive on screws threading into metal
SPECIFICATIONS:
- Collapsed length end-to-end: 93mm- Recommended operating length: 95-130mm end-to-end (85-120mm hub pin to hub pin)
- Recommended travel: 35mm
- Spline engagement at 130mm: 10mm
- Compatible with 5mm output shafts
- M3 threaded holes for vehicle attachment
COMMENTS:
- Fits the Tamiya CR01 (front), Axial AX10 (stock), Axial SCX10 (front), or custom vehicle- Replacement parts are Hot Racing: RCV11DH (drive hub), RCV11P (CV rebuild kit), RCV11R (o-rings)
- Available driveshafts are, Hot Racing: SCP37VS (short 95-130mm), SCP37VM (medium 107-142mm), SCP37VL (long 120-155mm)
- Chassis / Center Gear Box / Front Shaft / Rear Shaft:
- Axial RR10 / stock / SCP37VM / HR SCP37VL (needs AXA0175)
- Axial SCX10 / HR SCX38TP03 / HR SCP37VS / HR SCP37VM
- Axial SCX10 / HR SCX38HT03 / HR SCP37VS / HR SCP37VM
- Axial Wraith / HR WRA38TP03 / HR SCP37VS / HR SCP37VM
- Axial Wraith / HR WRA38CP03 / HR SCP37VM / HR SCP37VM
- Axial Wraith / HR SCX38HT03 / HR SCP37VS / HR SCP37V
description revised by: SN March 20, 2019
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 2.25" × 4.00" × 0.55" 5.72 cm × 10.16 cm × 1.40 cm |
| Part numbers | SCX37VS TRXF37VS SCP37VS 083745859300 AUTB37VS SXTT37VS 840353318410 HRASCP37VS |
| Shipping weight | 1.80 ounces 50.94 grams 0.11 pounds |
