Steel Helical Spiral Gear Set w/ Aluminum Cover Plate - Tra 1/16
Made by Hot Racing · VXS9282X02
$59.88
10+ in stock
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description

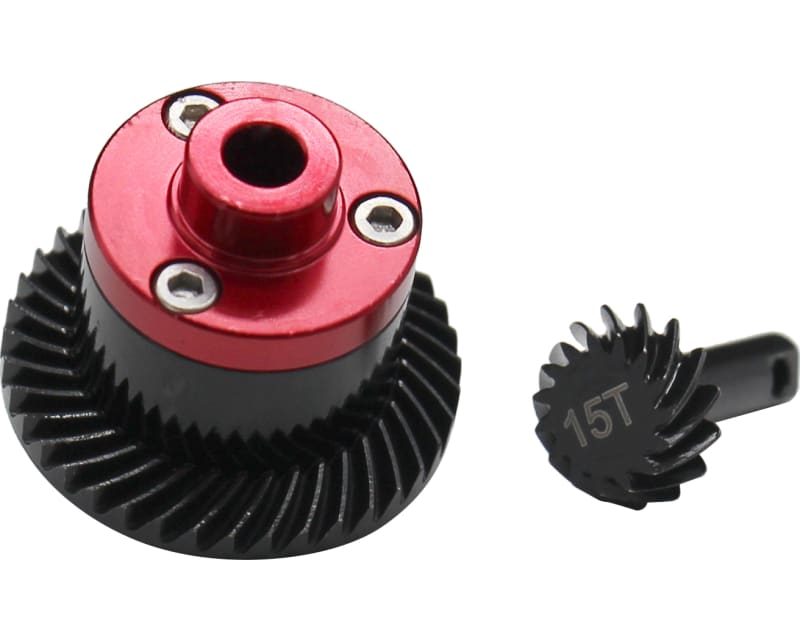

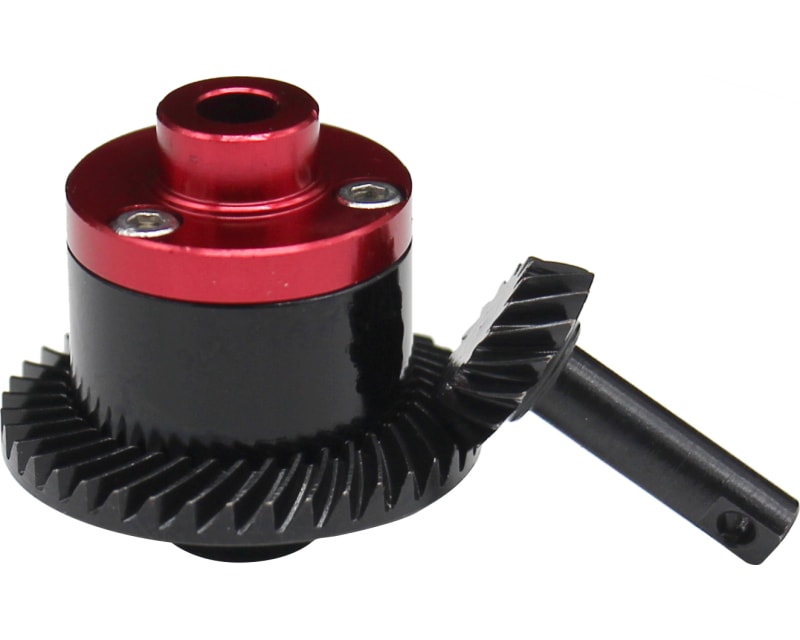

Hot Racing steel helical spiral differential gear set for TRA 1/16 4X4 vehicles, including the 1/16 E-Revo, 1/16 Slash 4X4, and 1/16 Summit. This set is compatible with the front or rear differentials.
- Aluminum carrier cover plate is anodized red
- Precision machined helical spiral cut gears offer inherently greater
strength and smooth operation than the factory bevel cut gears
- One (1) steel 15T pinion gear
- One (1) aluminum carrier
- One (1) aluminum carrier cover plate
- Reuses TRA 7082 internal spider and carrier gears, as well as the output shaft seal and outdrives from the original differential
- Installation may require shimming for proper gear mesh. The gears should run freely without too much play and without binding. (If shimming are needed use Hot Racing W4X Shim)
- Use removable thread lock (blue threadlocking compound) on carrier screws
- Differential grease (Spl10G02)
- Carrier bearing boss diameter: 8mm
- Pinion length: ~19.5mm
- Replaces TRA 7079 ring and pinion and 7080 carrier cover plates (except for the output shaft seal)
- Shimming the differential correctly is an important step in building the perfect differential. If needed more shims may be purchased via Hot Racing part number W8X.
description revised by: SN July 11, 2016
FEATURES:
- CNC machined aluminum and hardened high carbon steel construction- Aluminum carrier cover plate is anodized red
- Precision machined helical spiral cut gears offer inherently greater
strength and smooth operation than the factory bevel cut gears
YOU WILL RECEIVE:

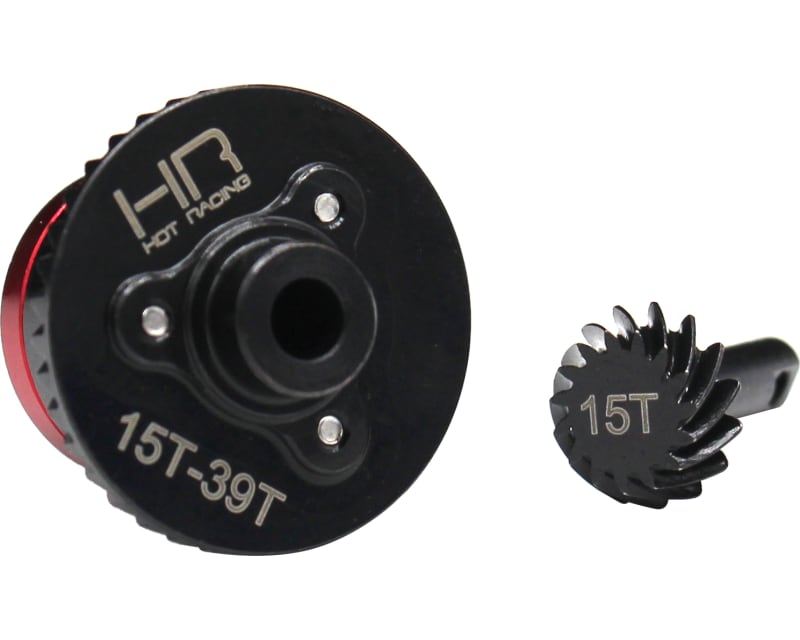

- One (1) steel 39T ring gear- One (1) steel 15T pinion gear
- One (1) aluminum carrier
- One (1) aluminum carrier cover plate
REQUIREMENTS:
- Two sets per vehicle- Reuses TRA 7082 internal spider and carrier gears, as well as the output shaft seal and outdrives from the original differential
- Installation may require shimming for proper gear mesh. The gears should run freely without too much play and without binding. (If shimming are needed use Hot Racing W4X Shim)
- Use removable thread lock (blue threadlocking compound) on carrier screws
- Differential grease (Spl10G02)
SPECIFICATIONS:
- Carrier width: ~23mm- Carrier bearing boss diameter: 8mm
- Pinion length: ~19.5mm
COMMENTS:
- Does not include inner differential gears. - Replaces TRA 7079 ring and pinion and 7080 carrier cover plates (except for the output shaft seal)
- Shimming the differential correctly is an important step in building the perfect differential. If needed more shims may be purchased via Hot Racing part number W8X.
description revised by: SN July 11, 2016
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.95" 10.13 cm × 10.13 cm × 2.41 cm |
| Part numbers | VXS9282X02 840353304864 083745854275 HRAVXS9282X02 |
| Shipping weight | 0.67 ounces 18.96 grams 0.04 pounds |
