Description
Hot Racing 120mm big bore threaded body aluminum shocks for many 1/10th scale off-road vehicles using 120mm shocks
- CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
- & quot;Big Bore & quot; threaded shock bodies
- CNC machined 11mm Delrin pistons
- 3.5mm stainless steel shock shafts
- Gunmetal and blue anodized aluminum components
- Vented shock caps with bladder seals for consistent rebound dampening
- Threaded shock collars with o-rings to prevent unwanted movement
- Composite plastic lower shock ends with aluminum balls
- Fully assembled, just add shock oil and bleed
- Two (2) assembled shocks
- Two (2) M3x20mm flat head cap screws
- Two (2) M3x18mm button head cap screws
- Two (2) 3mm countersunk washers
- Two (2) 5.9 hollow balls
- Four (4) 1.5mm thick spacers
- Four (4) 3mm thick spacers
- Silicone shock oil of modeler's choice and bleeding per the typical bladder shock bleeding procedure
- Best used with Team Associated shock Green Slime grease or shock o-ring grease when rebuilding lower seal
- Snap ring pliers when rebuilding lower seal
- Extended length: 120mm
- Compressed length: 75mm
- Overall length: 130mm
- diameter: 19mm
- Spring: ~5.0lb/in, 1.54mm wire, 16 turn dual rate, 19.3mm OD, 73mm long

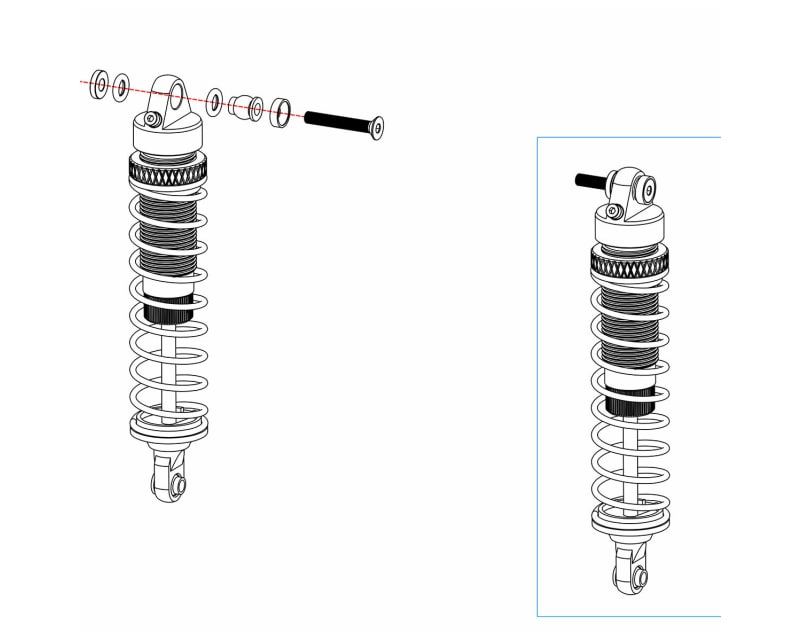

- Use spacers as need for installation
FEATURES:
- CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
- & quot;Big Bore & quot; threaded shock bodies
- CNC machined 11mm Delrin pistons
- 3.5mm stainless steel shock shafts
- Gunmetal and blue anodized aluminum components
- Vented shock caps with bladder seals for consistent rebound dampening
- Threaded shock collars with o-rings to prevent unwanted movement
- Composite plastic lower shock ends with aluminum balls
- Fully assembled, just add shock oil and bleed
YOU WILL RECEIVE:
- Two (2) assembled shocks
- Two (2) M3x20mm flat head cap screws
- Two (2) M3x18mm button head cap screws
- Two (2) 3mm countersunk washers
- Two (2) 5.9 hollow balls
- Four (4) 1.5mm thick spacers
- Four (4) 3mm thick spacers
REQUIREMENTS:
- Silicone shock oil of modeler's choice and bleeding per the typical bladder shock bleeding procedure
- Best used with Team Associated shock Green Slime grease or shock o-ring grease when rebuilding lower seal
- Snap ring pliers when rebuilding lower seal

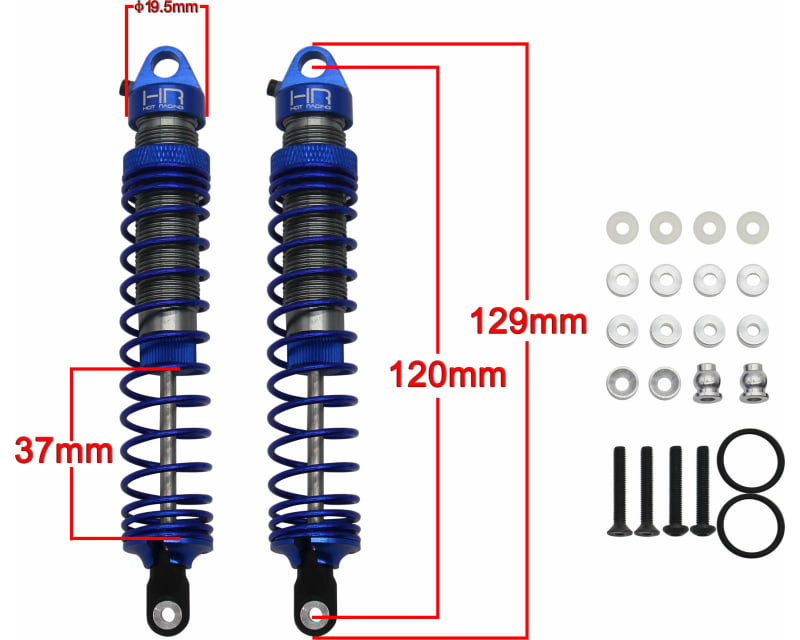

SPECIFICATIONS:
- Extended length: 120mm
- Compressed length: 75mm
- Overall length: 130mm
- diameter: 19mm
- Spring: ~5.0lb/in, 1.54mm wire, 16 turn dual rate, 19.3mm OD, 73mm long
COMMENTS:
- Use spacers as need for installation
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.25" 10.13 cm × 10.13 cm × 0.64 cm |
| Part numbers | TD120X06 840353326033 HRATD120X06 |
| Shipping weight | 2.81 ounces 79.57 grams 0.18 pounds |
