Aluminum Lower Suspension Links - Twin Hammers
Made by Hot Racing · VTH55L01
$33.88
Out of stock
This part is not currently in stock.
Parts lists
Log in to add this part to a parts list to start planning your next project!
Description

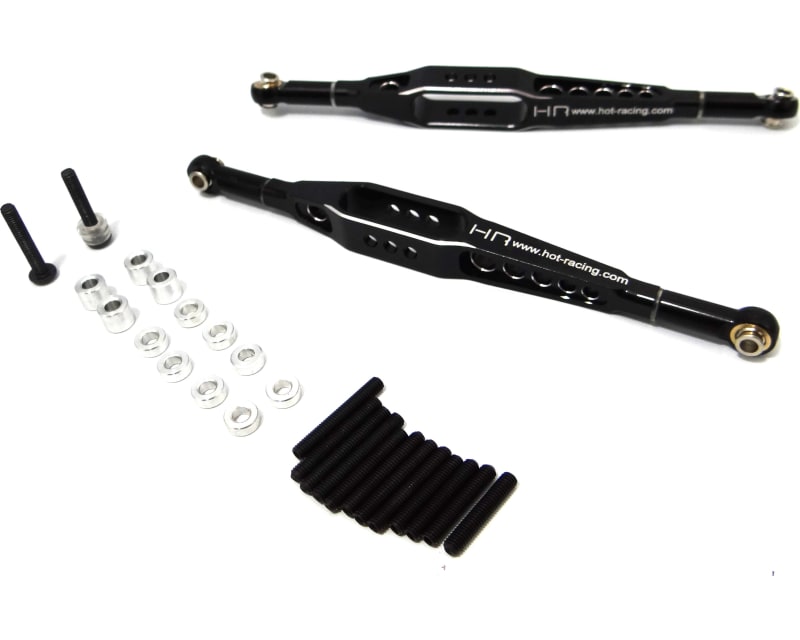

Hot Racing adjustable length lower 4-link arms for the Vaterra Twin Hammers
- CNC machined aluminum construction, anodized black
- Three shock mounting positions
- Adjustable length in increments of 2.5mm
- Includes 2.5mm and 5mm spacers
- Adjustable length between ~119-139mm (stock is ~117mm)
- included spacers allow length adjustments in 2.5m or 5mm increments
- Four (4) plastic washers (help to lock link ends from twisting)
- Four (4) 5mm collars
- Eight (8) 2.5mm collars
- Four (4) 16mm long set screws
- Four (4) 18mm long set screws
- Four (4) 20mm long set screws
- Two (2) 3x18mm button head cap screws
- Installation on vehicle
- Recommended to use a removable-type locking adhesive on screws threading into metal. This includes the setscrew used to adjust the link length. - The middle hole in VTH55L01 is at the stock location with our link at its shortest. When VTH55L01 is at its longest (~139mm) the forward-most shock hole is ~5.5mm rearward of the stock location.
- Replaces factory plastic Vaterra lower links from VTR234009
description revised by: SN February 10, 2016
FEATURES:
- Three shock mounting positions
- Adjustable length in increments of 2.5mm
- Includes 2.5mm and 5mm spacers
- Adjustable length between ~119-139mm (stock is ~117mm)
- included spacers allow length adjustments in 2.5m or 5mm increments
YOU WILL RECEIVE:
- Two (2) lower lings with link ends- Four (4) plastic washers (help to lock link ends from twisting)
- Four (4) 5mm collars
- Eight (8) 2.5mm collars
- Four (4) 16mm long set screws
- Four (4) 18mm long set screws
- Four (4) 20mm long set screws
- Two (2) 3x18mm button head cap screws
REQUIREMENTS:
- Recommended to use a removable-type locking adhesive on screws threading into metal. This includes the setscrew used to adjust the link length.
COMMENTS:
- Replaces factory plastic Vaterra lower links from VTR234009
description revised by: SN February 10, 2016
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Additional details
| Country of origin | China |
| Package dimensions | 6.00" × 4.00" × 0.50" 15.24 cm × 10.16 cm × 1.27 cm |
| Part numbers | VTH55L01 083745834888 HRAVTH55L01 |
| Shipping weight | 1.57 ounces 44.51 grams 0.10 pounds |
