Description

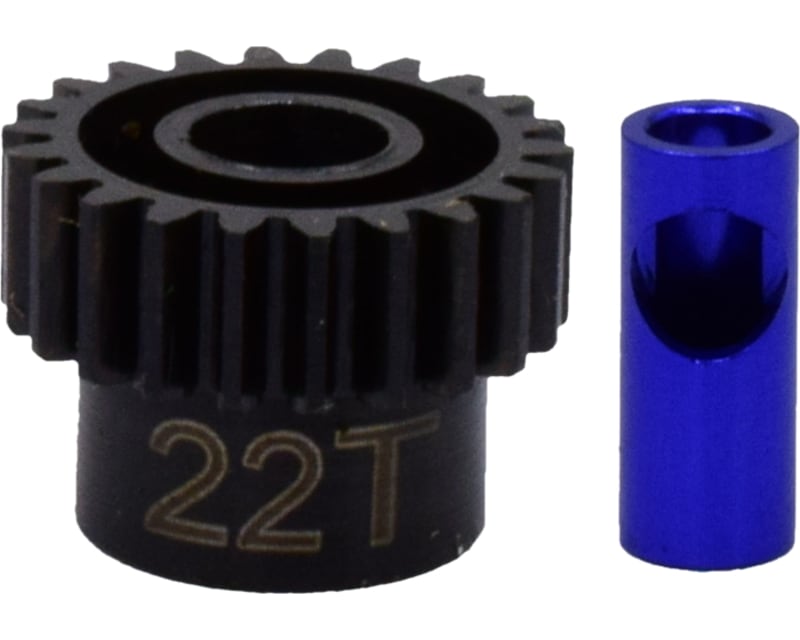

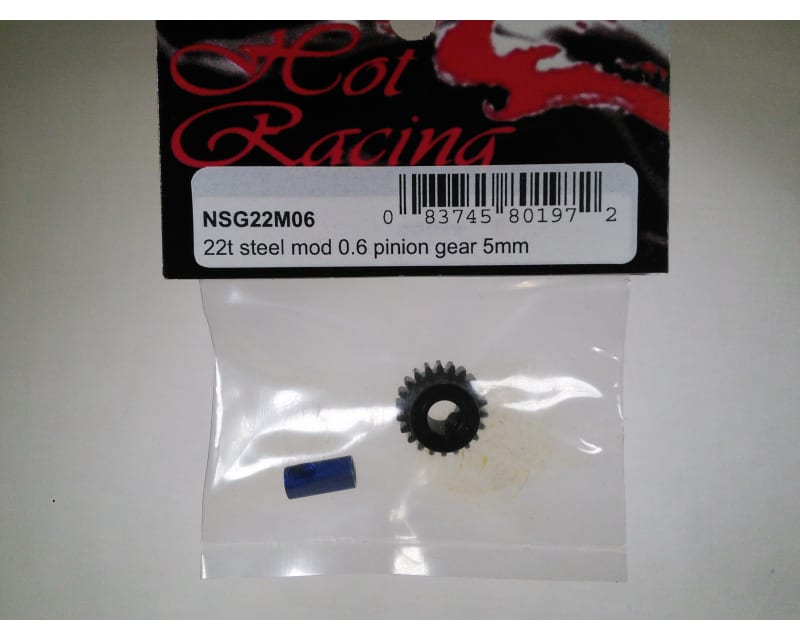

Hot Racing 22T, 0.6 module (~42P) steel pinion gear for 5mm or 1/8in motor shafts
- Heavy duty 4mm set screw
- Long design for maximum motor shaft contact
- Laser marked tooth count
- Includes a 5mm-1/8in shaft adapter to accommodate both 5mm and 1/8in motor shafts
- One (1) M4x4mm setscrew
- One (1) 5mm to 1/8in conversion sleeve
- Recommended to use a removable thread-locking adhesive (blue threadlocking compound) on setscrew
- Pitch: 0.6 module (~42P)
- length: 10.5mm
- Outside diameter: 14.4mm
- Tooth face width: 5mm
description revised by: SN March 9, 2016
FEATURES:
- CNC machined steel with black Nitride finish- Heavy duty 4mm set screw
- Long design for maximum motor shaft contact
- Laser marked tooth count
- Includes a 5mm-1/8in shaft adapter to accommodate both 5mm and 1/8in motor shafts
YOU WILL RECEIVE:
- One (1) 22T, 0.6mod pinion gear- One (1) M4x4mm setscrew
- One (1) 5mm to 1/8in conversion sleeve
REQUIREMENTS:
- 2mm hex wrench to install the set screw- Recommended to use a removable thread-locking adhesive (blue threadlocking compound) on setscrew
SPECIFICATIONS:
- Teeth: 22- Pitch: 0.6 module (~42P)
- length: 10.5mm
- Outside diameter: 14.4mm
- Tooth face width: 5mm
description revised by: SN March 9, 2016
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.25" 10.13 cm × 10.13 cm × 0.64 cm |
| Part numbers | NSG22M06 083745801972 HRANSG22M06 |
| Shipping weight | 0.34 ounces 9.64 grams 0.02 pounds |
