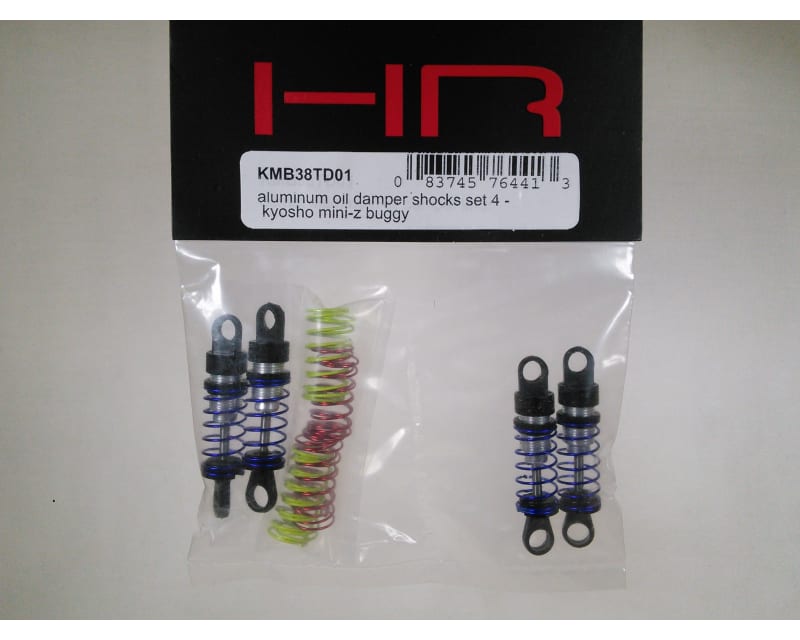

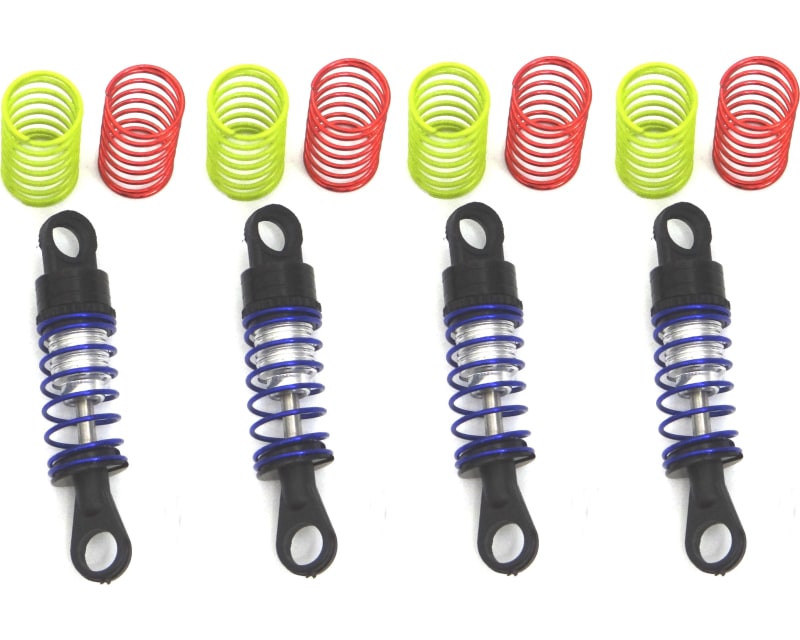

Aluminum Oil Damper Shocks Set (4) - Kyosho Mini-Z Buggy
Made by Hot Racing · KMB38TD01
$23.88
This part is discontinued and we no longer carry it.
Description
Hot Racing aluminum oil-dampened shock set for the Kyosho Mini-Z Buggy
- Threaded bodies for easy preload adjustment
- Oil dampened shocks with rubber bladders
- Three spring options included
- Threaded shock ends
- Four (4) blue springs (medium)
- Four (4) yellow springs (hard)
- Four (4) red Spring (Soft)
- Overall extended/compressed length (slightly adjustable): 41mm/35mm
- Eye-to-eye extended/compressed length (slightly adjustable): 34.5mm/28.5mm
- Shock body diameter: ~6mm
- Shock shaft dimeter: ~1.4mm
- Spring free length: ~18mm
- Shock spring wire thickness: Blue (0.57mm), Yellow (0.62mm), Red (0.52mm)
description revised by: SN January 22, 2018
FEATURES:
- Aluminum shock bodies- Threaded bodies for easy preload adjustment
- Oil dampened shocks with rubber bladders
- Three spring options included
- Threaded shock ends
YOU WILL RECEIVE:
- Four (4) assembled shocks- Four (4) blue springs (medium)
- Four (4) yellow springs (hard)
- Four (4) red Spring (Soft)
REQUIREMENTS:
- Shock oil, installation, and adjustmentSPECIFICATIONS:
- Stroke: ~6mm- Overall extended/compressed length (slightly adjustable): 41mm/35mm
- Eye-to-eye extended/compressed length (slightly adjustable): 34.5mm/28.5mm
- Shock body diameter: ~6mm
- Shock shaft dimeter: ~1.4mm
- Spring free length: ~18mm
- Shock spring wire thickness: Blue (0.57mm), Yellow (0.62mm), Red (0.52mm)
COMMENTS:
- Shocks come assembled, but will re-use the stock Kyosho shock end ballsdescription revised by: SN January 22, 2018
Manufacturer Information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible Vehicles (1)
Additional Details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.25" 10.13 cm × 10.13 cm × 0.64 cm |
| Part numbers | 083745764413 KMB38TD01 HRAKMB38TD01 |
| Shipping weight | 0.51 ounces 14.46 grams 0.03 pounds |
