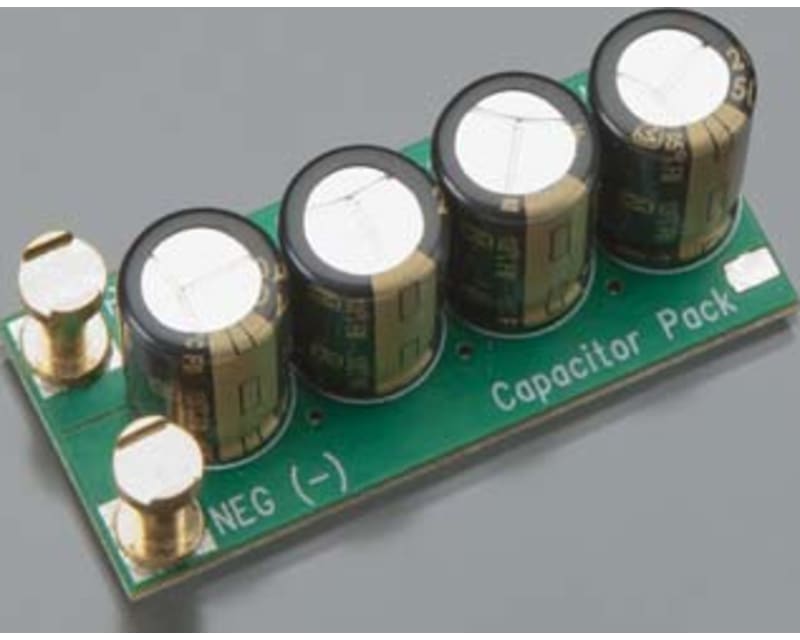

CC CapPac 50V Capacitor Pack 011-0002-02

CC CapPack
CC CapPack is useful in all brushless motor
applications, where it serves to give just that little boost needed to
overcome ripples in the battery voltage caused by hard acceleration or
long battery wires. Remember, ripple voltage is hard on an ESC, adding
the CC CapPack can help reduce the load on the controller's on-board
capacitors.
Helis: CC
CapPack is highly recommended for all 500 class and larger heli
applications where Y harnesses and long wires can bleed voltage and hard
collective pulls can strain even the most powerful batteries.
Cars/Trucks: With their
high torque requirements going from 0 to 100% throttle isn't easy on
controllers or batteries - RC cars and trucks put enormous loads on
brushless power systems. Use CC CapPack to help your system power
through the abuse.
Aircraft: Larger
electric power systems lead to larger electric powered aircraft, and
sometimes the distance between the battery pack and the ESC grows beyond
the length of the wires installed on the components. Adding wire also
adds inductance, which can increase the ripple voltage in a system. CC
CapPack essentially negates the ripple caused by the addition of up to 8
inches of length to the battery wires.
CC CapPack is designed for quick and easy installation.
Users simply cut the soft silicone insulation on the battery wires do
this as close to the ESC as possible and place the exposed wires in
the channels on CC CapPack's posts. Check for proper polarity and then
solder the wires to the posts. Use the included heat shrink to finish
it off for a professional looking install.
All Castle controllers with data logging capabilities can
report the ripple voltage they encounter during use. Ripple voltage
peaks should always be less than 10% of the total pack voltage; the
smaller the ripple voltage the better. If an application exhibits more
than 10% ripple voltage under peak loads, the user should consider using
higher discharge (C Rating) batteries, shorter wires, higher current
connectors, better gearing or a smaller load.
Multiple CapPacks may be used in an application. They should all be installed as close to the ESC as possible.
length: 1.8 (45.7mm)
width: 0.78 (19.8mm)
height: 0.7 (17.6mm)
