Description

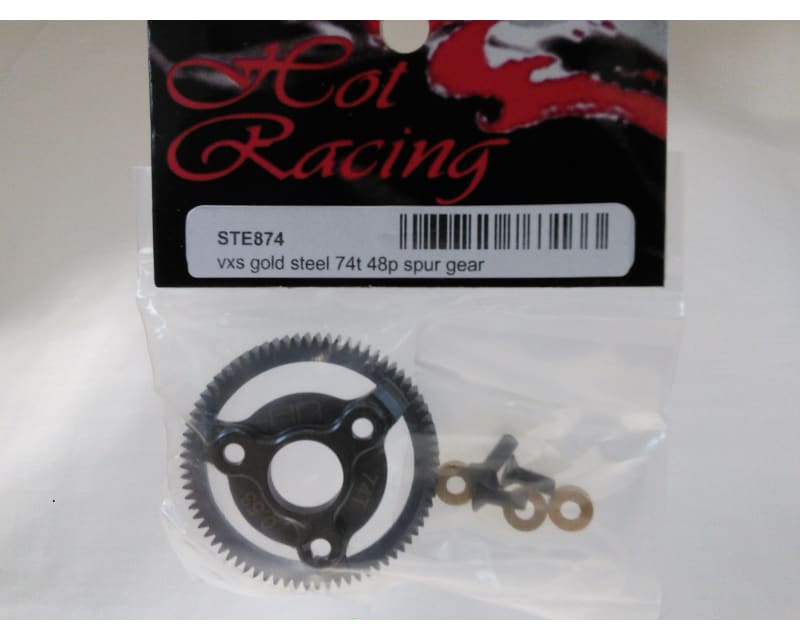

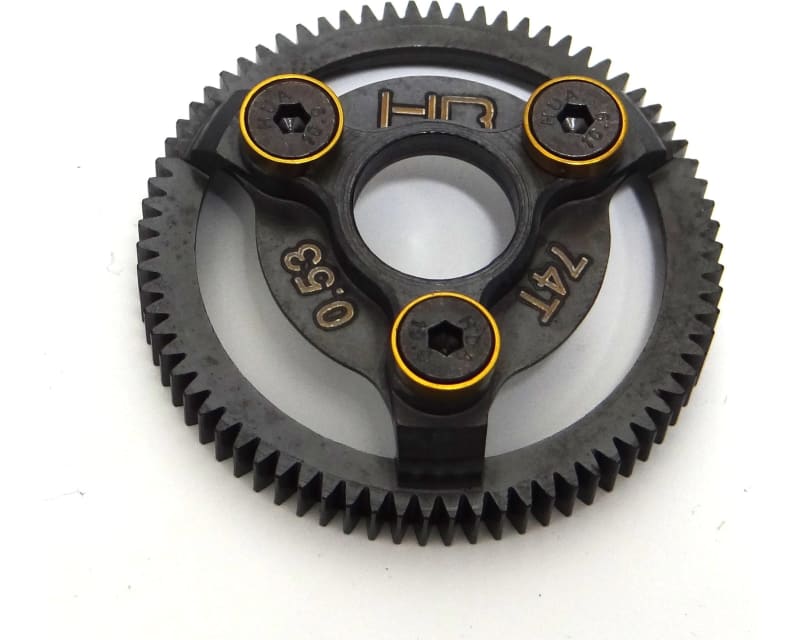

Hot Racing light weight hardened steel 74 tooth, 48 pitch spur gear for the TRA Bandit, 2WD Slash, Rustler, 2WD Stampede, and Telluride vehicles
- CNC machined and lightened hardened steel construction
- Replaces stock nylon spur gear
- Black oxide coated gear for durability and corrosion resistance
- Gold anodized countersunk aluminum washers
- High strength hardware
- One (1) 74 tooth 48 pitch spur gear
- Three (3) mounting screws
- Three (3) gold anodized countersunk washers
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)
- Number of Teeth: 74
- Gear Pitch: 48 pitch
- Mounting Holes: 3
- Tooth Face width: ~5mm
- Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting
- Motor should no way exceed 180F (over 160F is not recommended). ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
- This spur gear is significantly smaller than the stock gear and will require a larger pinion gear for fitment. Consider a pinion gear in the 24-33 tooth range.
description revised by: SN July 19, 2017
FEATURES:
- CNC machined and lightened hardened steel construction
- Replaces stock nylon spur gear
- Black oxide coated gear for durability and corrosion resistance
- Gold anodized countersunk aluminum washers
- High strength hardware
YOU WILL RECEIVE:
- One (1) 74 tooth 48 pitch spur gear
- Three (3) mounting screws
- Three (3) gold anodized countersunk washers
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)
SPECIFICATIONS:
- Number of Teeth: 74
- Gear Pitch: 48 pitch
- Mounting Holes: 3
- Tooth Face width: ~5mm
COMMENTS:
- Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting
- Motor should no way exceed 180F (over 160F is not recommended). ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
- This spur gear is significantly smaller than the stock gear and will require a larger pinion gear for fitment. Consider a pinion gear in the 24-33 tooth range.
description revised by: SN July 19, 2017
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 2.00" × 3.00" × 0.60" 5.08 cm × 7.62 cm × 1.52 cm |
| Part numbers | STE874 083745763133 840353317444 HRASTE874 |
| Shipping weight | 0.78 ounces 22.10 grams 0.05 pounds |
