Description

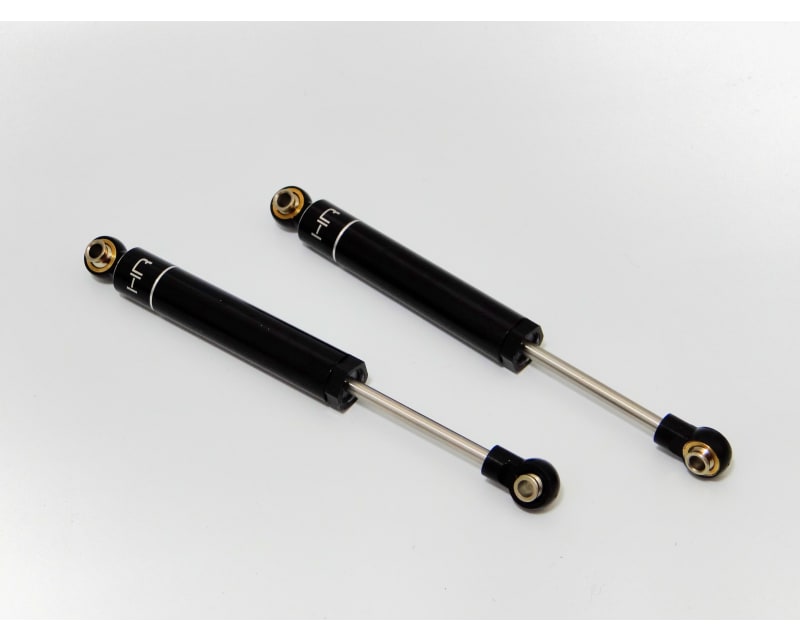

Hot Racing scale aluminum internal spring damper shocks, designed with scale and rock crawling vehicles in mind
- Can be used with or without silicone shock oil
- CNC machined aluminum shock bodies, lower shock cap, and shock end
- 3mm stainless steel shock shafts
- Steel pivot balls with brass pivot cups
- 2-hole machined pistons
- Three (3) spring options (one pre-installed)
- Hardware pack
- Travel: ~29mm
- Shaft diameter: 3mm
- Shock body diameter: 10mm
- Eyelets: for 3mm screws
- See Hot Racing TD90Z01 for a 90mm shock version
description revised by: SN April 23, 2018
FEATURES:
- Internal spring shocks, with three included spring options, provide functionality, while maintaining a scale appearances- Can be used with or without silicone shock oil
- CNC machined aluminum shock bodies, lower shock cap, and shock end
- 3mm stainless steel shock shafts
- Steel pivot balls with brass pivot cups
- 2-hole machined pistons
YOU WILL RECEIVE:
- Two (2) shocks- Three (3) spring options (one pre-installed)
- Hardware pack
REQUIREMENTS:
- InstallationSPECIFICATIONS:
- Extended length (hole-to-hole): 100mm- Travel: ~29mm
- Shaft diameter: 3mm
- Shock body diameter: 10mm
- Eyelets: for 3mm screws
COMMENTS:
- Caution: These shocks do not have bladders and will act as an emulsion-type shock when shock oil is used. Be mindful of that and leave enough free space in the shock to accommodate the oil displacement caused by the shock shaft during compression. - See Hot Racing TD90Z01 for a 90mm shock version
description revised by: SN April 23, 2018
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Compatible vehicles
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 3.99" × 3.99" × 0.25" 10.13 cm × 10.13 cm × 0.64 cm |
| Part numbers | TD100Z01 083745736458 840353330320 HRATD100Z01 |
| Shipping weight | 1.17 ounces 33.11 grams 0.07 pounds |
