Description

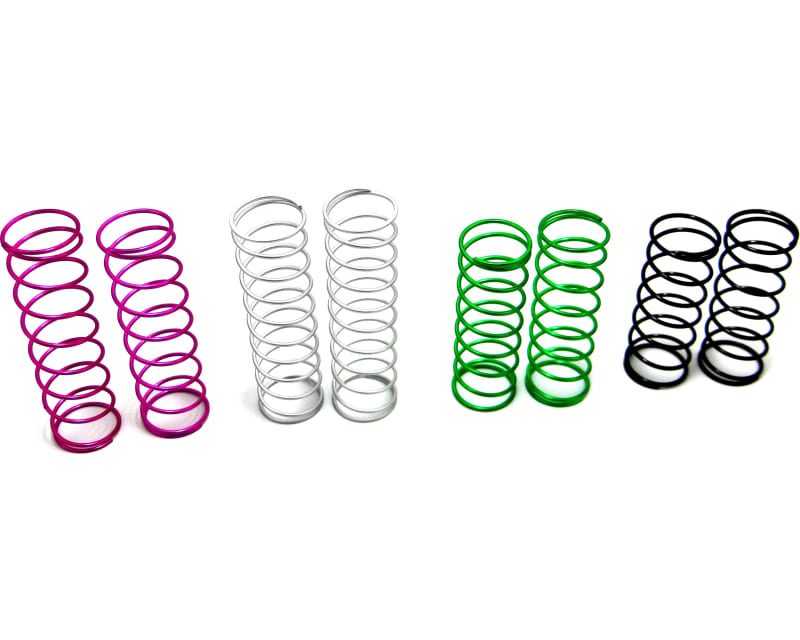

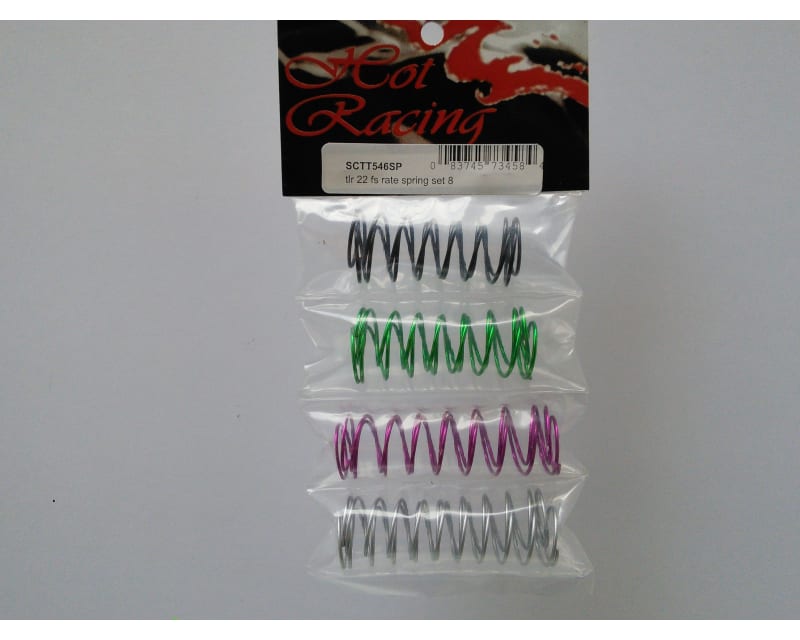

Factory Spec Shock Spring for the TLR 22
Spring Steel construction
TLR5163 Spring, Rear, 1.8 Rate (White), 22, 22T, 22SC
TLR5168 Spring, Rear, 2.3 Rate (pink), 22, 22T, 22SC
TLR5182 Spring, Front, 3.5 Rate (green), 22T, 22SC
TLR5184 Spring, Front, 4.1 Rate (black), 22T, 22SC
Two Spring, Rear, 2.3 Rate (pink), 22, 22T, 22SC
Two Spring, Front, 3.5 Rate (green), 22T, 22SC
Two Spring, Front, 4.1 Rate (black), 22T, 22SC
wire diameter:1.2mm, length: 53mm, turns:9, Green 3.5 Rate
wire diameter:1.1mm, length: 64.5mm, turns:9, Pink 2.3 Rate
wire diameter:1.1mm, length: 64.5mm, turns:11, Silver 1.8 Rate
TLR5163 Spring, Rear, 1.8 Rate (White), 22, 22T, 22SC (silver)
TLR5168 Spring, Rear, 2.3 Rate (pink), 22, 22T, 22SC (pink)
TLR5182 Spring, Front, 3.5 Rate (green), 22T, 22SC (green)
TLR5184 Spring, Front, 4.1 Rate (black), 22T, 22SC (black)
description revised by: WP February 6, 2014
FEATURES:
Hot Racing cold-coiled springs are designed as TLR Factory Space spring. Spring Steel construction
TLR5163 Spring, Rear, 1.8 Rate (White), 22, 22T, 22SC
TLR5168 Spring, Rear, 2.3 Rate (pink), 22, 22T, 22SC
TLR5182 Spring, Front, 3.5 Rate (green), 22T, 22SC
TLR5184 Spring, Front, 4.1 Rate (black), 22T, 22SC
YOU WILL RECEIVE:
Two Spring, Rear, 1.8 Rate (Silver), 22, 22T, 22SCTwo Spring, Rear, 2.3 Rate (pink), 22, 22T, 22SC
Two Spring, Front, 3.5 Rate (green), 22T, 22SC
Two Spring, Front, 4.1 Rate (black), 22T, 22SC
SPECIFICATIONS:
Wire diameter:1.2mm, length: 48mm, turns:8, Black Rate 4.1 Ratewire diameter:1.2mm, length: 53mm, turns:9, Green 3.5 Rate
wire diameter:1.1mm, length: 64.5mm, turns:9, Pink 2.3 Rate
wire diameter:1.1mm, length: 64.5mm, turns:11, Silver 1.8 Rate
REQUIREMENTS:
Installation on vehicleCOMMENTS:
This is Same Factory Spec Team Losi Shock Springs for the TLR 22, 22T, 22SC. TLR5163 Spring, Rear, 1.8 Rate (White), 22, 22T, 22SC (silver)
TLR5168 Spring, Rear, 2.3 Rate (pink), 22, 22T, 22SC (pink)
TLR5182 Spring, Front, 3.5 Rate (green), 22T, 22SC (green)
TLR5184 Spring, Front, 4.1 Rate (black), 22T, 22SC (black)
description revised by: WP February 6, 2014
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Additional details
| Country of origin | China |
| Package dimensions | 4.50" × 3.50" × 1.00" 11.43 cm × 8.89 cm × 2.54 cm |
| Part numbers | 083745734584 SCTT546SP 840353316645 HRASCTT546SP |
| Shipping weight | 1.37 ounces 38.84 grams 0.09 pounds |
