Description

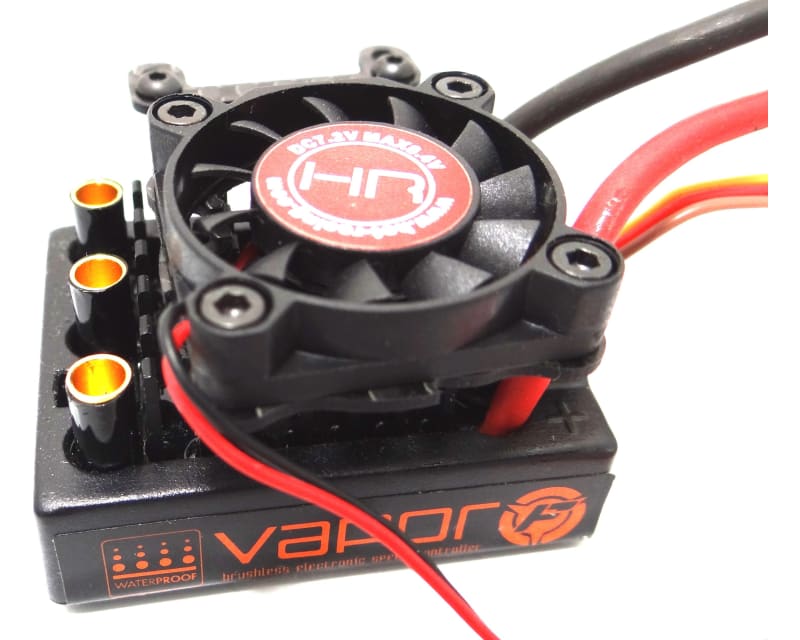

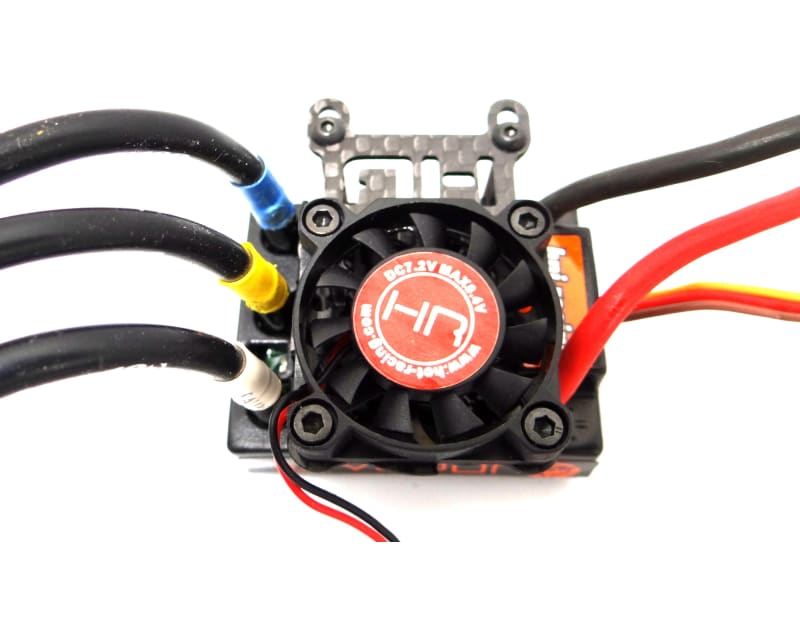

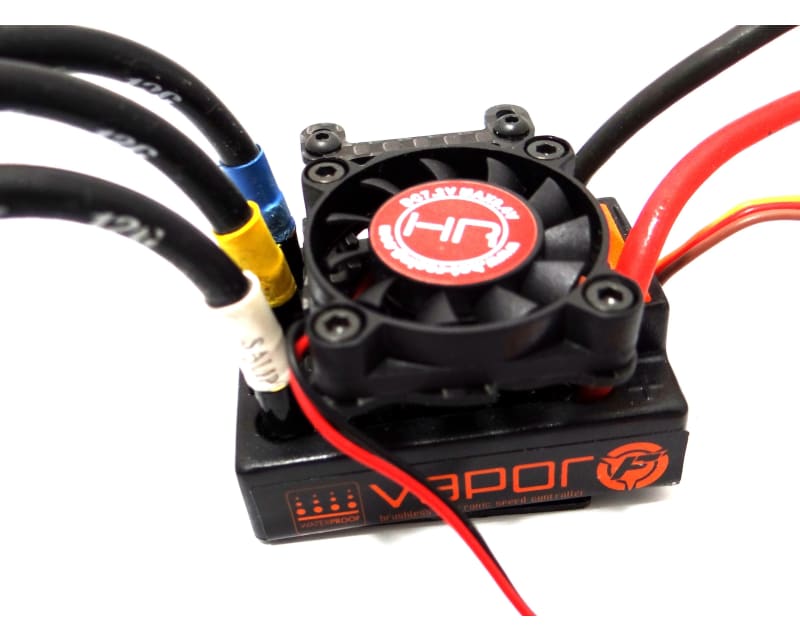

Hot Racing universal ESC cooling fan with adjustable carbon fiber base for most electronic speed controls
- Keeps the ESC running cooler

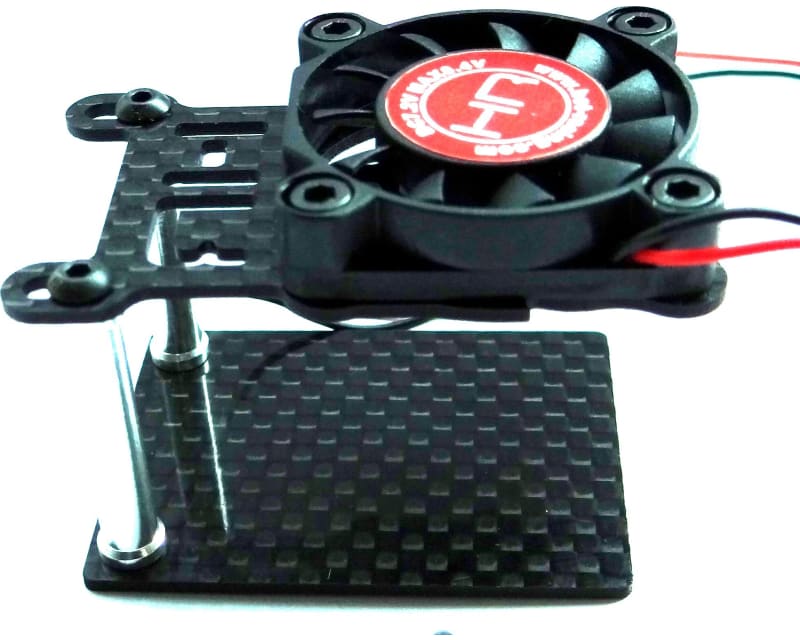

- Adjustable carbon fiber base provides versatile mounting
- Carbon fiber construction is light weight and strong
- Aluminum standoffs
- Simple installation
- One (1) carbon fiber base with aluminum standoffs
- Four (4) 3mm aluminum spacers
- Installation with servo tape
- Electrical hook up with 7.2-8.4V MAX DC power source
- Plug requires soldering or connection to a receiver port plug
- Base size: 32x43x1mm
- Fan size: 30x30x7.5mm
- Fan mounting hole pattern: 24mm square
- Input voltage: DC 7.2-8.4V MAX
- Base standoff (post) height: 25mm
- Speed controller is not included and is shown for demonstration only
description revised by: SN May 27, 2015
FEATURES:
- Adjustable carbon fiber base provides versatile mounting
- Carbon fiber construction is light weight and strong
- Aluminum standoffs
- Simple installation

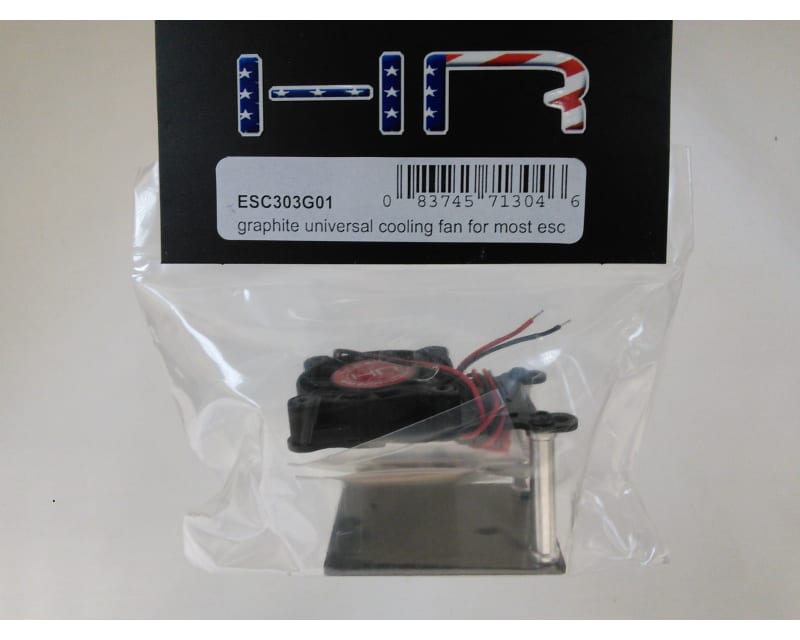

YOU WILL RECEIVE:
- One (1) cooling fan- One (1) carbon fiber base with aluminum standoffs
- Four (4) 3mm aluminum spacers
REQUIREMENTS:
- Electrical hook up with 7.2-8.4V MAX DC power source
- Plug requires soldering or connection to a receiver port plug
SPECIFICATIONS:
- Fan size: 30x30x7.5mm
- Fan mounting hole pattern: 24mm square
- Input voltage: DC 7.2-8.4V MAX
- Base standoff (post) height: 25mm
COMMENTS:
description revised by: SN May 27, 2015
Manufacturer information
All warranties and guarantees, including missing items, are handled directly by the manufacturer of that item. Should there be any problem with a product, you (The Customer) will need to contact the manufacturer to obtain service. Manufacturer contact information is available upon request. We must be contacted for a return authorization number before returning items for any reason. We cannot accept returned items that have been opened or are not in their original sealed factory containers.
Related parts
Additional details
| Country of origin | China |
| Package dimensions | 2.25" × 3.00" × 2.00" 5.72 cm × 7.62 cm × 5.08 cm |
| Part numbers | 083745713046 ESC303G01 840353316409 HRAESC303G01 |
| Shipping weight | 0.81 ounces 22.96 grams 0.05 pounds |
