R2006gs 2.4g Sfhss 6ch Receiver 6j

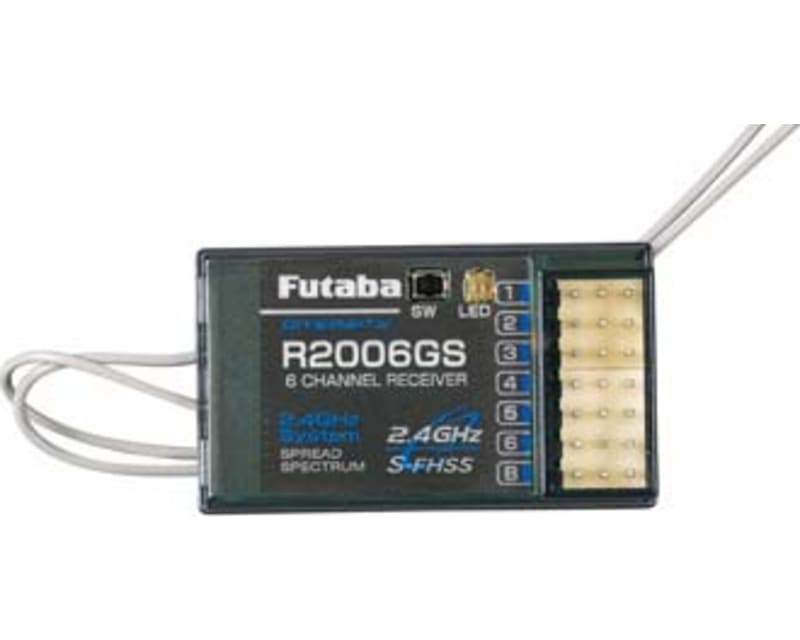

This is the R2006GS 2.4GHz SFHSS 6-Channel Receiver
used with the Futaba 6J 6-Channel 2.4GH Aircraft Radio.
High-voltage (4.8 - 7.4V) capability eliminates the need for a
regulator when using a 2S 7.4V LiPo pack as a power source
Normal (FHSS) and high-speed mode, normal mode has a frame rate
output of 13.63ms and accepts any type of servos or peripherals,
peripherals, high-speed mode (S-FHSS), with an output of 6.8ms
accepts digital servos including the BLS series and most peripheral
equipment such as brushless ESCs
Easy-Link circuitry, frequency hopping, spread spectrum design
Dual Antenna Diversity
Futaba R2006GS 2.4GHz SFHSS 6-Channel Receiver
Binding to transmitter, installing in aircraft and connecting servos
Modes: FHSS or S-FHSS
Voltage Input: 4.8V-7.4V
Compatible Batteries: NiCd, NiMh , LiPo, LiIon & LiFe
0.98 x 1.70 x 0.35" (43.1 x 25 x 8.8mm)
Weight: 0.29 oz (8.3 g)
Current Drain: 80mA (@ no signal)
