3prka 2.4g Fhss W/R203gf No Servo

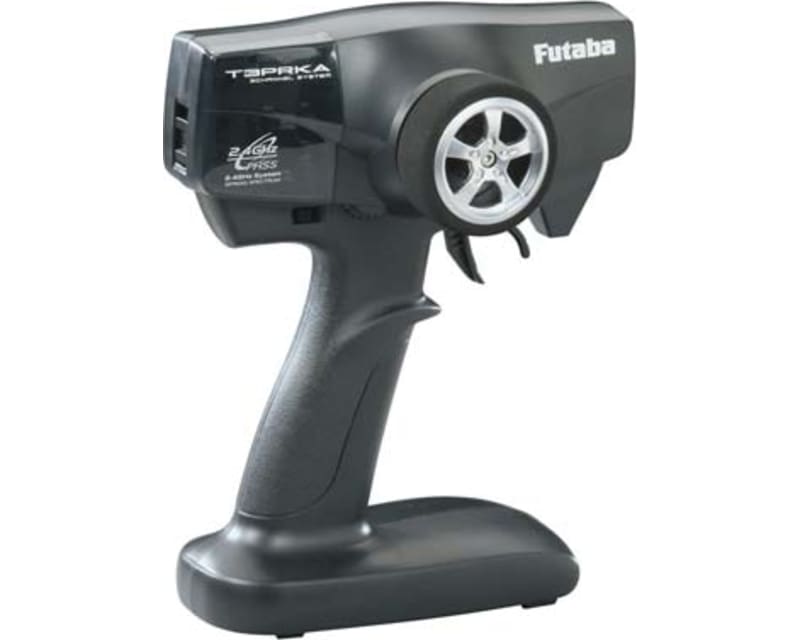

This is the 3-Channel Futaba 3PRKA 2.4GHz FHSS Radio System
with the R203GF Receiver.
Ideal upgrade for radios found in RTR vehicles
Throttle and steering trim and reverse
Steering dual rate dial
Throttle end point adjustment
Channel three switch
Throttle fail safe
70/30 throttle mode
One year limited warranty through Hobby Services beginning at date
of purchase
Futaba 3PRKA 2.4GHz FHSS Transmitter, R203GF Receiver, Instruction
Manual and On/Off Switch
Servos of modeler's choice
Four AA batteries for transmitter
Transmitter:
Transmitting Frequency: 2.4GHz band
Power Requirement: Four AA cells
Current Drain: 100mA or less
Receiver;
1.54 x 1.02 x 0.39" (39 x 26 x 10mm)
Weight: 0.28oz (8g)
Operating Voltage: 4.8 - 7.4V (shared with servo)
Battery Fail Safe Voltage: 3.8V*
Current Drain: 30mA at no signal
*Battery fail safe voltage is set for 4-cell NiCd/ NiMh battery
Battery F/S does not work properly when other type of battery is used
2.4GHz FHSS is not compatible with FASST systems, and the R203GF
receiver is compatible only with electronics created specifically
for 2.4GHz FHSS systems.
